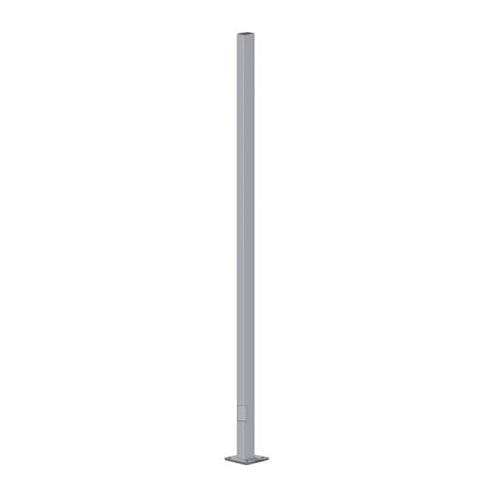

Advantage Environmental Lighting SSSQ HIGH EPA Reinforced Straight Steel Square Pole - 4" Pole Size, 25" Height, 11 Gauge Construction with 7 Gauge Reinforcement Shaft


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Advantage Environmental Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Advantage Environmental Lighting SSSQ HIGH EPA Reinforced Straight Steel Square Pole - 4" Pole Size, 25" Height, 11 Gauge Construction with 7 Gauge Reinforcement Shaft

CONSTRUCTION:

Our SSSQ Pole is manufactured here in the U.S. from a single piece of formed steel. Featuring high strength, domestic hot rolled carbon steel. Our poles also come standard with a minimum yield strength of 50,000 PSI (which conforms to ASTM A500 grade C requirements). The easy-access hand hole is located 12" above the base. A high-quality, heavy-gauge ground lug is included standard. Our High EPA reinforced poles incorporate a 36” high reinforced shaft that is welded into the pole shaft to increase wind load tolerance.

ANCHOR BASE:

Our anchor base is made from ASTM A36 grade hot rolled carbon steel plate and comes standard with a minimum yield strength of 36,000 PSI. An aluminum marine-grade base plate cover is provided which encloses the base plate and anchor bolts. Anchor bolts available to purchase as an accessory, and available as pre-shipped with a rigid template.

MOUNTING/DRILL PATTERN:

A variety of mounting and drill patterns are offered to meet the needs of various applications. Inquire with your N2M representative for custom drill patterns.

FINISH:

A highly durable, long-lasting polyester powder coat finish is standard and can be applied in a variety of finish options. Standard colors include black, bronze, white, green, silver, grey (custom colors are available). Galvanized and painted galvanized poles are also available.

WARRANTY:Standard:

2-Year warranty for structural and 5-Years for finish. Galvanized (extended): 10-Year structural warranty combined with 5-Years for the finish. The warranty will be voided if the pole is modified(1).
