Lightolier Flat Downlight LED

Lightolier Lighting | SKU: FLAT-DOWNLIGHT-LED
No reviews

Sale price$0.00 USD

Fast & Easy Quote Request

Click the “Request A Quote” button. Next, in the notes section, please include the complete products catalog numbers and quantity requested. For details see the PDF spec sheet on this page. You may also include your lighting fixtures list and attach files.


Lightolier Flat Downlight LED

Product Name SKU Watts Lumens Kelvin
LIGHTOLIER Flat DL 4\" Rd 700lm 90 30K 120V FD4R07930TE1W 12 700 3000
LIGHTOLIER Flat DL 4\" Sq 700lm 90 30K 120V FD4S07930TE1W 12 700 3000
LIGHTOLIER Flat DL 6\" Sq 900lm 90 30K 120V FD6S09930TE1W 15 900 3000
LIGHTOLIER Flat DL 6\" Rd 900lm 90 30K 120V FD6R09930TE1W 15 900 3000
LIGHTOLIER Flat DL 4\" \u0026 6\" Rd NC plate FDRN
LIGHTOLIER Flat DL 4\" \u0026 6\" Sq NC plate FDSN
LIGHTOLIER Flat DL 6\u0027 extension cable FD06C
LIGHTOLIER Flat DL 20\u0027 extension cable FD20C
LIGHTOLIER Flat DL 4\" Rd 700lm 90 40K 120V FD4R07940TE1W 700 4000
LIGHTOLIER Flat DL 4\" Sq 700lm 90 40K 120V FD4S07940TE1W 700 4000
LIGHTOLIER Flat DL 6\" Sq 900lm 90 40K 120V FD6S09940TE1W 900 4000
LIGHTOLIER Flat DL 6\" Rd 900lm 90 40K 120V FD6R09940TE1W 900 4000

Product Family Details

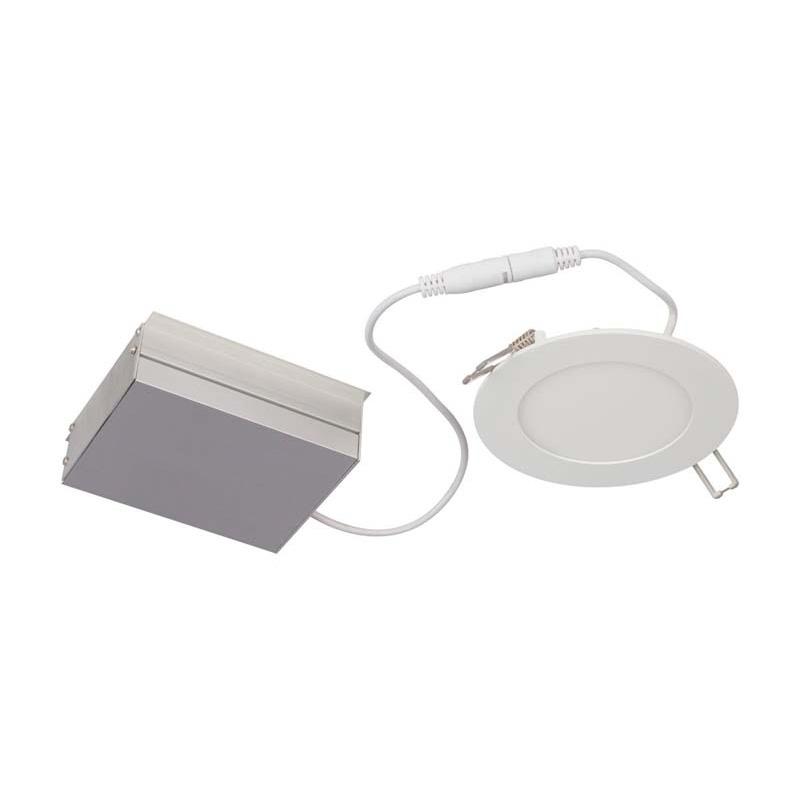

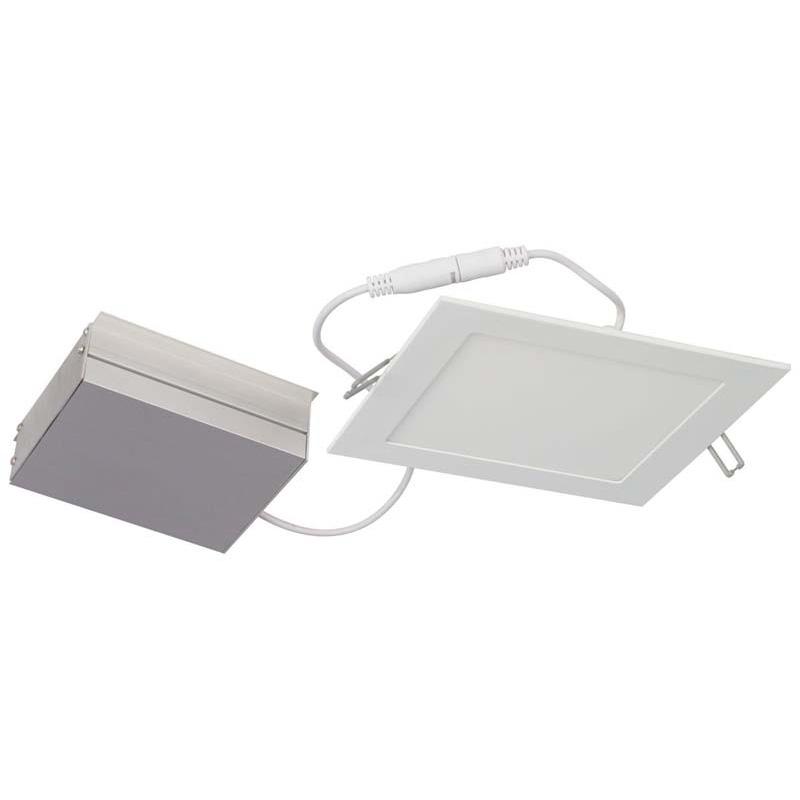

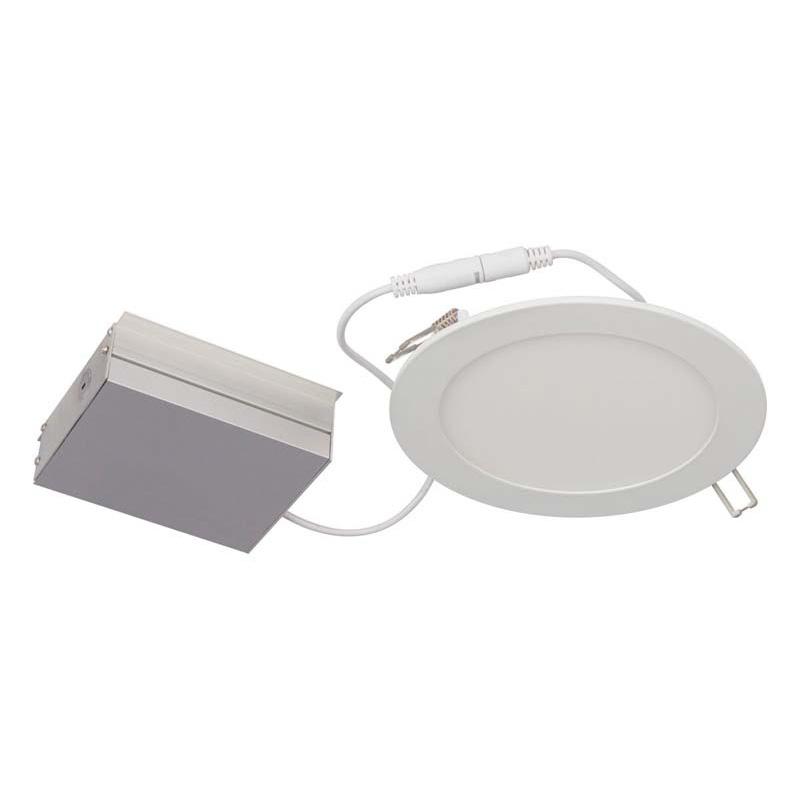

Lightolier LED flat downlight provides an easy and quick downlight solution without the traditional frame and reflector. Perfect for installation in existing ceilings or new construction with the benefits of energy saving LED technology.


  • Perfect for shallow ceiling plenum or use under a joist.
  • Detachable junction box and spring clips make installation quick and easy
  • Extension cables available for remote mounting flexibility.
  • Junction box can clip to the luminaire to meet the National Electric Code (NEC).


  • Availbale in 4"and 6", round and square apertures

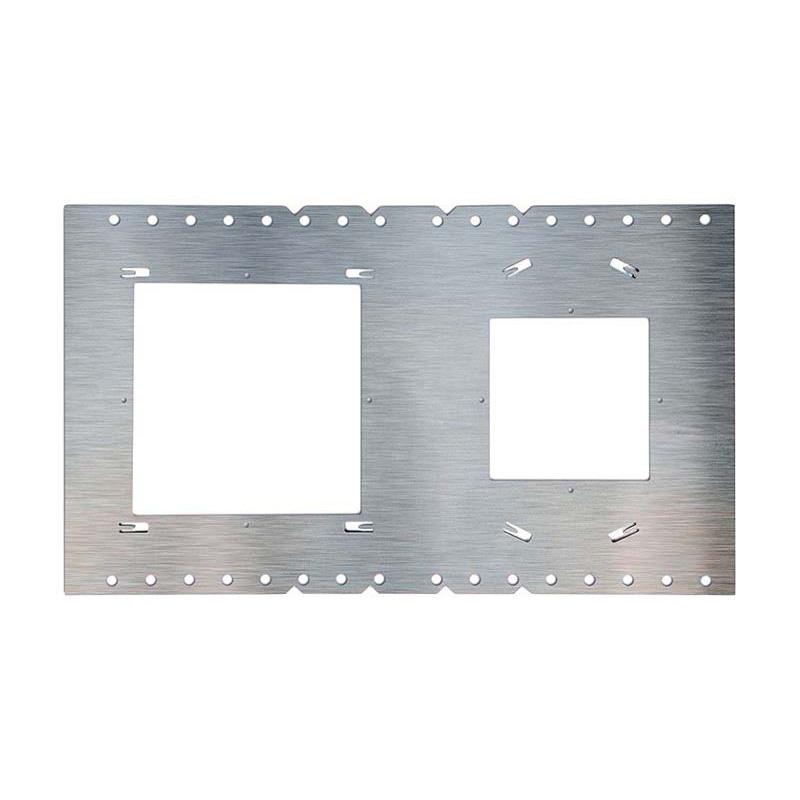

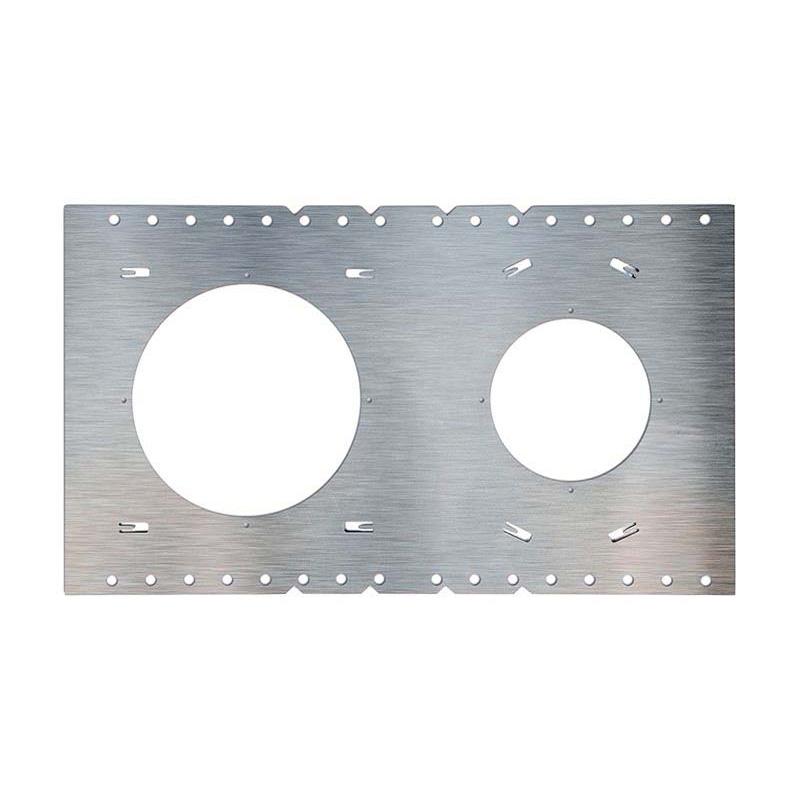

  • Accessories: New construction plates and extension cables
  • Dimming: ELV & TRIAC down to 10%


  • Residential
