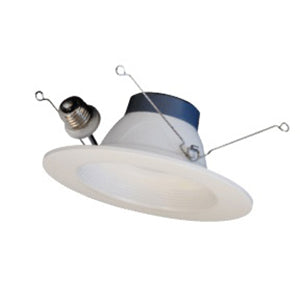

Advantage Environmental Lighting AELBRM56 5"/6" Recessed LED Retrofit Module

Advantage Environmental Lighting AELBRM56 5"/6" Recessed LED Retrofit Module

APPLICATIONS

5" & 6" Recessed downlight retrofit solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 5" & 6" Recessed cans.

ILLUMINATIONS

• Long life LEDs with up to 50,000 hours at 70% lumen maintenance.
• Choice of 2700K ( ±145),3000K ( ±175) ,4000K ( ±275) Or 5000 K ( ±283) Color ,temperature with 50 CRI , Title 240 (90CRI).
• Produces 750-1200 lumen output from luminaire.
• Uses 1.18 W High power , high quality LEDs.

ELECTRICAL

• Dimmable to 10% with most dimmrers.
• Save 75 % compared to incandescent sources.
• High efficiency driver with power factor 0.90 with input power of 120 W , 50-60 Hz.
• Built-in LED Driver.
• Power consumptipon of 12 Wattts .FOR 1200 LUMEN = 12 WATTS.
• Operation temperataure of -20°C -40°C ( -4° F -104° F ).

MOUNTING

• Easy insallation with adjustable torsion spring.
• Torsion spring is designed to fit into 5" & 6" housing automatically without changing mounting tab.
• No tools required for installation.

HOUSING

• Compatible with most 5" & 6" housing.
• Compatible with insulated , non insulated and air-tight ceilings .IC RATED,WET LOCATIONS.
• Durable thermoplastic construction.
• E 26 medium screw-base edison connector provides easy ritrofit of incandescent housing.
• 6" square Baffle snap-in ( option ).

WARRANTY /LISTING

• Tested in accordance with IESNA LM79 & LM80 .
• ETL listed for wet location.US AND CANADA LISTED.
• Energy star qualified.
• Passes FCC class B
• Meet state of California Title 24 requirements.2016(-C MODELS), JA8.
• ROHS COMPLIANT.
• Five year warranty on all electronics and housing.

Click for Spec Sheet
