Advantage Environmental Lighting BAF Surface Mount LED Prison Grade

No reviews

Price:
Sale price$0.00 USD

Description

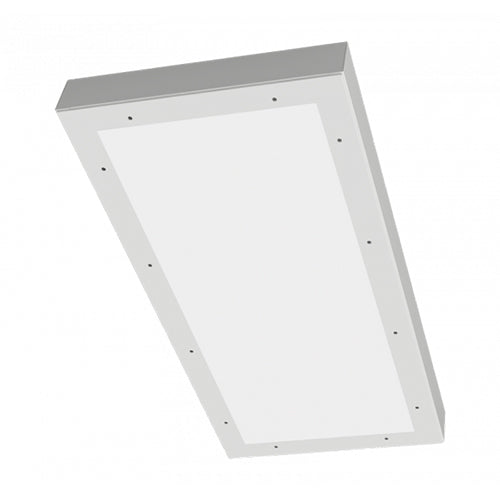

Advantage Environmental Lighting BAF Surface Mount LED Prison Grade

The BAF combines maximum security construction and modern, energy saving technology. UL listed for damp locations; optional wet location under covered ceiling. This surface mounted luminaire utilizes a one-piece housing, security lensing and tamper-resistant fasteners to maximize impact resistance and prevent contraband concealment and unauthorized fixture penetration. The BAF is ideal for confinement/security applications. Suitable for use in inmate cells, mental health settings, secure corridors and general population areas.

FASTENERS:

Stainless steel tamper-resistant T20 TORX screws are standard. Allen-head screws with center reject pin are optional. Both are available in white as an option.

ELECTRICAL SYSTEM:

Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with federal energy efficiency standards.

OPTICAL SYSTEM:

Choice of prismatic acrylic, prismatic polycarbonate or prismatic tempered glass on fixture side, clear polycarbonate or clear tempered glass on environmental side. Lens secured by thru-studs and vertically adjustable internal CRS holddowns.

LISTINGS:

UL listed for damp locations. Wet location option available.

FINISH:

High gloss, electrostatically applied, white powder coat finish, average minimum reflectance 92%

HOUSING:

Die-formed body in various material options with continuous welded and ground ends to form a one piece, seamless housing for maximum impact resistance and prevention of unauthorized fixture penetration. LED: 80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. LED Life is >100,000 hours at 70% lumen maintenance.

DOOR:

One-piece door frame with die-formed edges and tightly closed corners increases rigidity. Door gauge to match housing. Door is attached to the housing with stainless steel aircraft cables. Piano Hinge option available.

DOORFRAME GASKET:

One-piece closed cell silicone gasket seals doorframe to housing for wet location option.

WARRANTY:

5-Year Limited Warranty.

IES Files

Click for BAF22-40-ML-INS-XX-XX-125P-PA125-M.IES

Click for BAF24-40-HL-INS-XX-XX-125P-PA125-M.IES
