Description

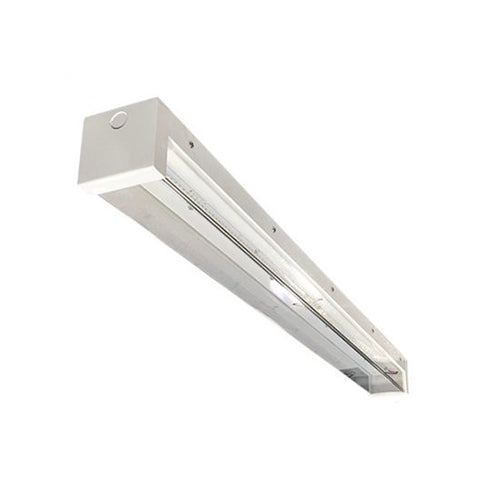

Advantage Environmental Lighting BAI Ceiling LED Prison Grade
The BAI is a prison grade, vandal resistant, ceiling mounted luminaire. Engineered for high abuse areas, the BAI is a durable, sleek, and efficient fixture. The BAI is a perfect combination of strength and aesthetics. An excellent choice for locations such as prisons, stairwells,schools,restrooms, storage facilities,dormitories, hallways, shower facilities, and locker rooms.
FINISH
Powder-coated white finish, with anti-microbial white available. For additional finish options, consult factory.
HOUSING
16 gauge steel, with welded and ground ends. Stainless steel and Marine Grade .063" aluminum construction available with options. Fixture is available with knockouts on ends for continuous run/conduit entry.
ELECTRICAL SYSTEM
0-10V 1% dimming driver included standard, 120/277V. Long-life LED system is rated for >100K life hours (L70 @ 45°C). Complies with federal energy efficiency standards.
LENS OPTIONS
The MLC housing options includes a double wall lens channel captive lens that prevents unwanted penetration. With screws along each side, the MLC ensures maximum lens captivation.
LENS
UV stabilized, impact-resistant clear polycarbonate lens available in .125" and .187" thickness, UV stabilized, impact-resistant frosted polycarbonate lens available in .125" thickness. UV stabilized, impact-resistant prismatic polycarbonate lens available in .125" thickness. For additional lens options, consult factory.
LISTINGS
UL listed for damp location. Wet location optional. Manufactured in Fort Worth, TX.
FASTENERS
Captive, stainless steel tamper proof, T20 TORX head screws prevent unauthorized access.
LED
80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is >100,000 hours at 70% lumen maintenance.
GASKET
One-piece closed cell silicone gasket seals lens to housing.
WARRANTY
5 - Year Limited Warranty.
