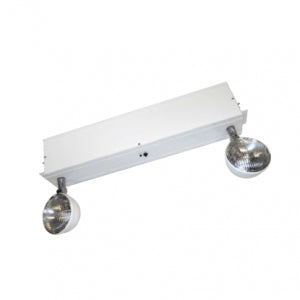

Advantage Environmental Lighting CAEMR17 Chicago Approved Steel Recessed Emergency Unit

Advantage Environmental Lighting CAEMR17 Chicago Approved Steel Recessed Emergency Unit

ILLUMINATION

• Two, 6V/12V 12W adjustable bi-pin halogen lamp heads.• Long lasting, efficient, wedge base incandescent or bipinhalogen lamps.
• High performance chrome-plated metallized reflector and glass lens for optimal light distribution.
• Adjustable 6V or 12V lamp heads provide optimal center-tocenter spacing.

ELECTRICAL

• Dual 120V/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deepdischarge. 6V sealed lead acid, maintenance-free, rechargeable battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 120-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Remote capacity of 26W standard on 50W models.

MOUNTING

• Conveniently designed for use with T-bar grid ceilings.
• Holes provided on enclosure for wire-suspension mount.

HOUSING

• Durable 20-gauge steel construction.
• White or black finish.

WARRANTY / LISTING

• Five year warranty on all electronics and housing. Battery pro rated for two years.
• UL Listed for damp locations (20°C – 50°C).Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
• Local and State Codes.
• Meets city of Chicago requirements.
