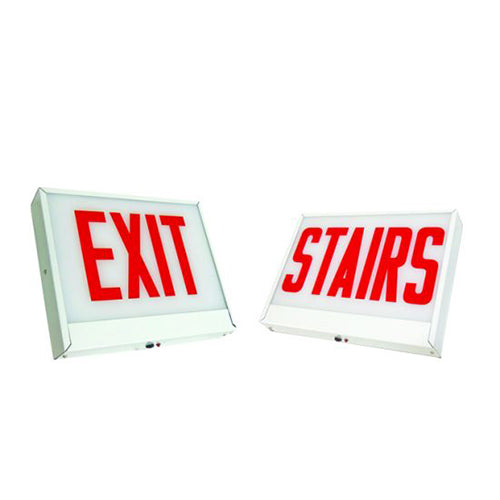

Advantage Environmental Lighting CAX5LU Chicago Approved Steel LED Exit Sign
ILLUMINATION
- Ultra-bright, energy effi cient, long-lasting white LEDs provide uniform illumination.
- Single or double face confi gurations.
ELECTRICAL
- Dual 120V/277V.
- Charge rate/power “ON” LED indicator light and push to test switch for mandated code compliance testing.
- 4.8V Long-life, maintenance-free, rechargeable Ni-Cd battery (EM models only).
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 120-minute emergency illumination.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
- Mounting canopy included for top or end mount.
- Universal K/O pattern on backplate for wall mount.
HOUSING
- 20-gauge steel housing.
- Neutral white finish.
WARRANTY/LISTING
- Five year warranty on all electronics and housing. Battery pro-rated for five years.
- UL listed for damp locations (0°-50°C/32°F-122°F standard).
- Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
- Meets city of Chicago requirements.
