Advantage Environmental Lighting CLP Clean Room Top Access Troffer

No reviews

Price:
Sale price$0.00 USD

Description

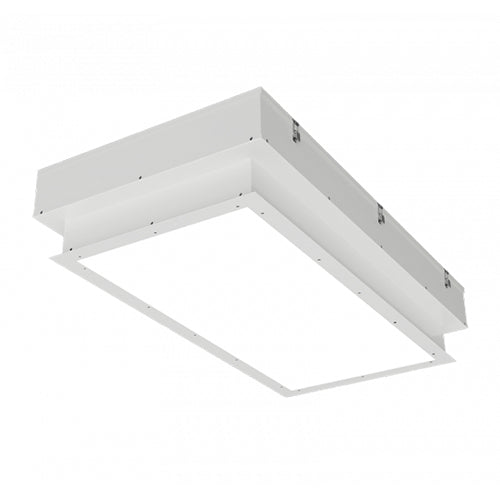

Advantage Environmental Lighting CLP Clean Room Top Access Troffer

The CLP is 600lb load tested to reduce the hazard of foot traffic. One piece overlapping door provides easy cleaning and air-tight integrity of luminaire. Optional Food Zone/Non-Contact listing, ideal for food processing applications. Easy opening using rotary latches and a full length piano hinge

HOUSING

One piece, seam welded construction with your choice of cold roll steel, stainless steel, or aluminum. Top access panel is cable hinged to housing for room-side removal. Panel is sealed with a closed cell gasket to housing inner surface.

DOOR FRAME

Various door frame options available, consult factory for additional option. Doorframe secured to housing with stainless steel aircraft cables and captive flush mounted Phillips head stainless steel fasteners. One-piece closed cell extruded gasket seals doorframe to housing and ceiling structure.

OPTICAL SYSTEM

High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Various lensing options available, see ordering options. Consult factory for additional lens options. (more options available).

ELECTRICAL SYSTEM

0-10V 1% Dimming Driver included standard.Long-life LED system rated for >100K life hours (L70 @ 50°C). Complies with federal energy efficiency standards.

MOUNTING

IC-Rated recessed ceiling mounting into walkable grid or walkable ceiling systems. Walkable ceiling (flange) installation suitable for ceilings up to 4" in thickness. Secured to ceiling with continuous perimeter compression to ceiling panel. Grid installation suitable for 1" and 1.5" T-bar ceilings. Supplemental support required.

LISTINGS

UL Listed. NSF Listed. Wet Location. Suitable for FED-STD-209E/Class 1 (ISO 3), Biosafety Labs Rated BSL 3 and 4, as well as EU GMP Grade A Clean rooms. Optional NSF2 Food Zone/ Non-Contact. Suitable for 1700 PSI high pressure hosedowns. IC-Rated for direct contact with insulation.

APPLICATIONS

The CLP is ideal for biomedical labs, food processing/testing centers, pharmaceutical labs, government facilities, schools and public areas.

WARRANTY

5-Year Limited Warranty.
