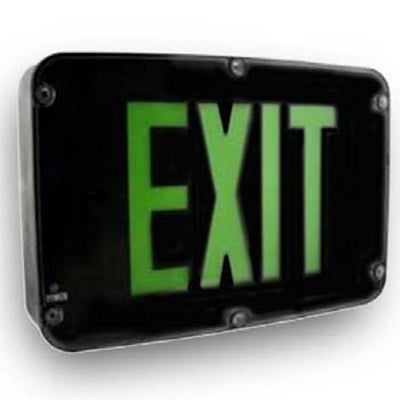

Advantage Environmental Lighting CNXU LED NEMA4X/NSF Exit Sign

No reviews

Price:
Sale price$0.00 USD

Description

Advantage Environmental Lighting CNXU LED NEMA4X/NSF Exit Sign

ILLUMINATION

  • Ultra bright, energy efficient, long life Red or Green LEDs.

ELECTRICAL

  • Dual 120/277 voltage.
  • Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check-battery).
  • Charge rate/power “ON” LED indicator light and magnetic test switch for mandated code compliance testing.
  • 4.8V long-life, maintenance-free, rechargeable NiCd battery (EM models only).
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

  • Universal knockout pattern on back provided with gasket for watertight seal for back mount.
  • Polycarbonate mounting canopy included for top or end mount.

HOUSING

  • Housing is reinforced polycarbonate construction in white or black finish.
  • Corrosion-resistant enclosure with one piece, highimpact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws.
  • Knockout’s provided for conduit feed applications.
  • EZ snap-out Chevron directional indicators.

OPTIONS

  • SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
  • 2C-120V/2C-277V: Voltage-specific dual circuit option on the AC-only unit enables it to be connected to two different supplies at the same time.
  • TP: Tamper-proof hardware helps discourage unauthorized.

WARRANTY / LISTING

  • Five year warranty on all electronics and housing. Batteries pro-rated for five years.
  • Meets UL924, NFPA101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • IP66 rated for Ingress protection.
  • NEMA4X and NSF rated.
  • Certified to CEC under Title 20 Regulations.
  • UL certified for use in food service operations.
  • UL listed for wet locations (-20°C – 50°C).
