Description

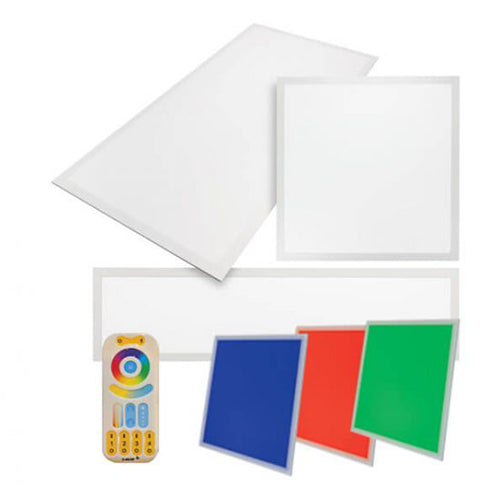

Advantage Environmental Lighting CRGBW Series RGB and Tuneable White LED Flat Panel

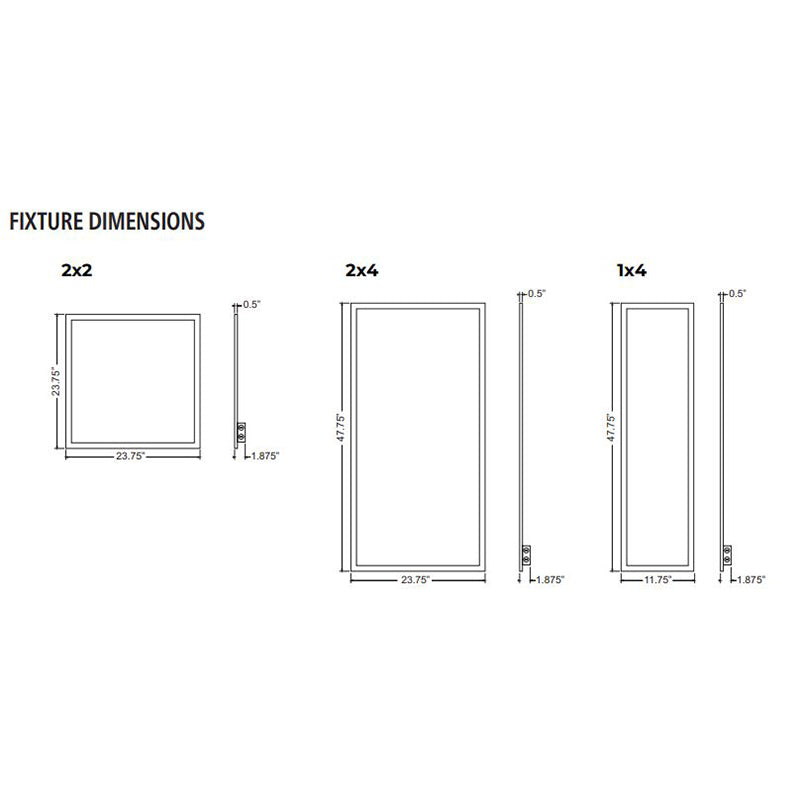

The CRGBW series is an extremely thin design flat panel that provides even illumination across the entire panel with no visible hot spots or shadows. Available in 1x4, 2x2, and 2x4 sizes. RGBW capability allows the color to be changed by handheld RGB remote controller with HCONT controller, or by an addressable DMX decoder for DMX512 control (controller supplied by others). Tuneable white LED range of 2800K-6500K. Up to 6 panels can be controlled by the handheld remote when installed in the same room.
CONSTRUCTION:
Aluminum frame with seamless corners. Enlarged junction box to facilitate connections.
APPLICATIONS:
The versatile CRGBW series perfect for setting a mood in offices, schools, government buildings, commercial applications, and any application that requires more than a standard white flat panel.
OPTICAL SYSTEM:
PMMA GLP and Polycarbonate diffuser. Diffusion plate with more than 90% light transmittance. Acrylic light guide for even illumination.
ELECTRICAL SYSTEM:
120-277VAC, 50/60Hz, Output 24VDC. 36W (1x4 and 2x2), 60W (2x4). Available with LED driver and handheld RGB controller, or addressable DMX decoder for DMX512 control. Operating temperatures: -20°C to 50°C (-4°F to 122°F).
MOUNTING:
This fixture is designed for recessed mounting for T-bar ceiling installation. Suspended and surface mount kits are available
WARRANTY:
5-Year Limited Warranty.
