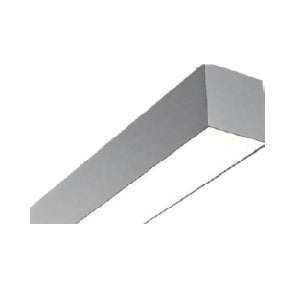

Advantage Environmental Lighting DL4SMS High Performance 4" X 4" Aperature Fluorescent Linear Surface Luminaire
The DL4SMS is an architecturally designed Surface Mount Direct Steel Fluorescent Luminaire that is classically styled and fit for any interior. It is available for continuous run mounting.
The DL4SMS Fluorescent Luminaires were designed to be high quality, energy efficient fluorescent fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and public areas.

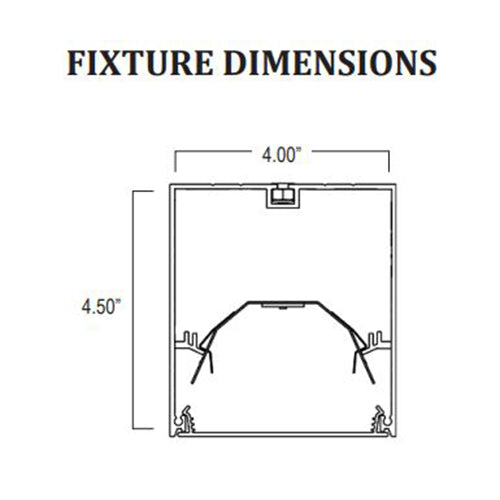

The fixture is constructed of a 4" wide heavy gauge steel body. The DL4SMS is available in any run length withing 1' increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment.
This fixture is provided with a precision formed, high-efficiency reflector designed to direct the light downward and outward into usable horizontal illumination. The symmetrical reflector provides exceptional downward throw.
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.

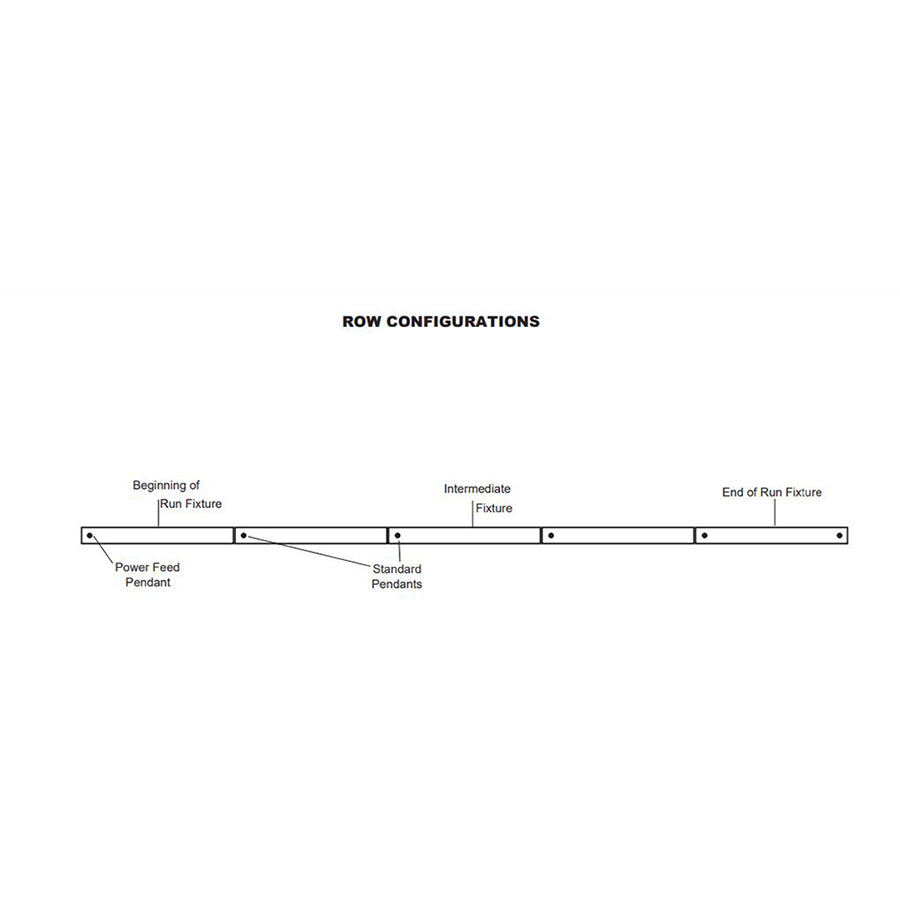

This fixture is designed to be surface mounted. Continuous run available.
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
5-Year Limited Warranty.
