Advantage Environmental Lighting EM132 Adjustable Optics LED Emergency Unit


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Advantage Environmental Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

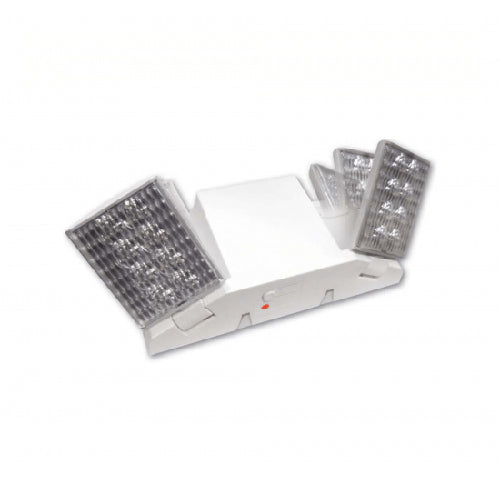

Advantage Environmental Lighting EM132 Adjustable Optics LED Emergency Unit

ILLUMINATION

  • Long life, efficient, ultra bright white LED lamp heads.
  • 1W (8 LEDs x 0.125W) per head.
  • High performance, chrome-plated metallized reflector and plastic lens for optimal light distribution.
  • Two adjustable LED lamp heads provide optimal center-tocenter spacing.

ELECTRICAL

  • Dual 120/277 voltage standard. Optional multi-tap 208/220/240 voltage available.
  • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • 3.6V long life, maintenance-free, rechargeable NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

  • Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
  • Top and side knockout for conduit applications. Suitable for wall or ceiling mount.

HOUSING

  • Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.

OPTIONS

SPV: UL Listed for special voltage option.

WARRANTY / LISTING

  • Five year warranty on all electronics and housing. Battery pro rated for five years.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • UL Listed for damp locations (0°C – 50°C).

IES Files

Click for EM132.IES

Product Files

Click for Spec Sheet
