Advantage Environmental Lighting HBLA Adjustable High Bay Linear
HOUSING
Premium powder-coat, die cast aluminum, white housing.
ELECTRICAL
- Operating temperature (ambient): -40°C to 50°C (-40°F to 122°F).
- Universal 120-277V AC voltage (50-60Hz) is standard.
- Optics rotate up to 135°.
- Screw in sensor ready. (Sensor and remote control sold separately).
- Emergency driver option available.
- 347-480v achieved with step-down transformer.
- 0-10VDC dimming drivers are standard.
- Input transient surge protection = 6kV.
- PF > 0.9; THD < 20%.
OPTICAL SYSTEM
- Polycarbonate lens.
- Field Selectable 4000k (neutral white) and 5000k (cool white) color temperatures*.
- Tri-Lumens selectable delivers 9,000 to 30,000 nominal lumens (see lumen tables on page 3)**.
- Remote Control required to change factory sensor settings (see default settings on page 2).
- Long-life LEDs provide 148,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90).
- LED color maintenance < 0.0035 chromaticity shift (Δu'v') over the initial 6,000 hours of operation.
- Color rendering index > 80%.
MOUNTING
Chain-mount kit (includes v-hooks, 1-meter long chain) are standard. Optional surface mounting kit provides attachment to solid surfaces. Optional pendant mounting kit provides pendant attachment to 1/2" rigid conduit.
CODE COMPLIANCE
- cULus listed for damp locations.
- DLC premium listed.
- Complies with FCC part 15, class A.
WARRANTY
5 year warranty on all electronics and housing.

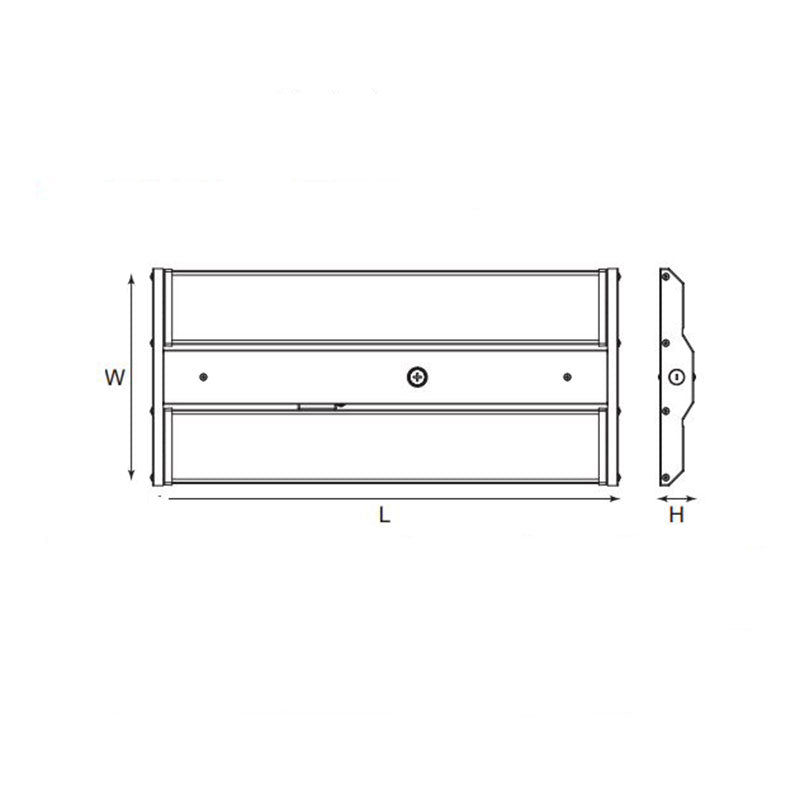

SPECIFICATIONS
| Model # | L (in) | W (in) | H (in) | Weight (lbs) |
|---|---|---|---|---|
| HBLA-15129L-4K5K | 25.8 | 12.1 | 1.9 | 7.5 |
| HBLA-241815L-4K5K | 25.8 | 12.1 | 1.9 | 7.5 |
| HBLA-302418L-4K5K | 25.8 | 12.1 | 1.9 | 7.5 |
