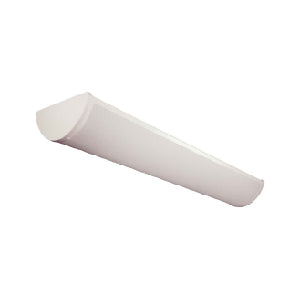

Advantage Environmental Lighting HCL High Performance Half Cylinder Linear Fluorescent Luminaire
The HCL Series is a Half Cylinder Linear Fluorescent fixture available for stand-alone or continuous run applications. It is available for continuous run mounting. Driven by performance and a clean aesthetic, the HCL series represents the ultimate in simplicity; a narrow, uniform line of light. Constructed with premium materials with industry leading technology, the HCL Series is available in configurable runs. The HCL Series integrates seamlessly with today’s modern building management systems. With virtually unlimited applications, the HCL Series allows architects and designers the freedom to experiment with their designs without exceeding ever decreasing energy budgets.
The HCL Series were designed to be high quality, energy efficient fluorescent fixtures for use in corridors, offices, government facilities, schools, and public areas.

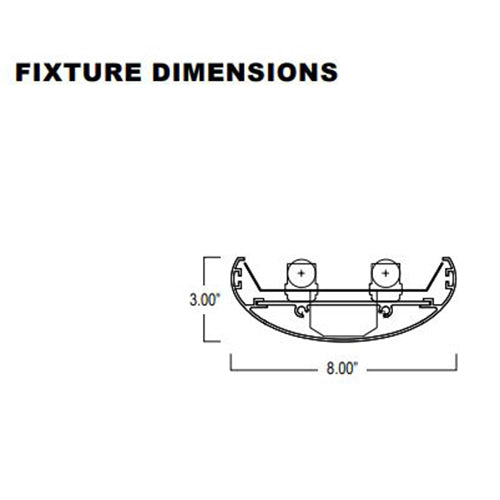

The fixture is contructed dieformed heavy-gauge pre-painted cold rolled steel. 5/64” diameter microperforations at staggered 7/64” intervals. Hinged baffle for quick, easy lamp access.
White polyester polymer finish with a high reflectivity. Microperforated baffle with white opal acrylic inlay combines soft downlight with even ceiling illumination.
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.

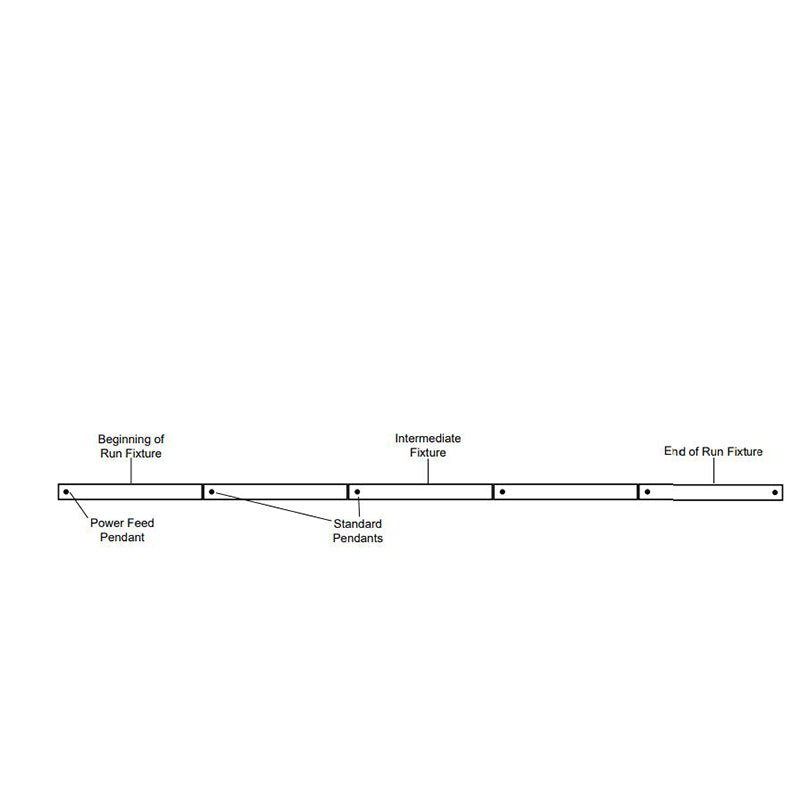

Designed to mount on exact 4 foot and 8 foot centers. Joiners will accept stems, single cable and power cords as supplied by others.
The fixture is compatible with 0-10V dimming controls.
UL and cUL Listed. Damp location rated.
1-Year Limited Warranty..
