Advantage Environmental Lighting LALPP Louvered and Perforated LED Suspended Luminaire

No reviews

Price:
Sale price$0.00 USD

Description

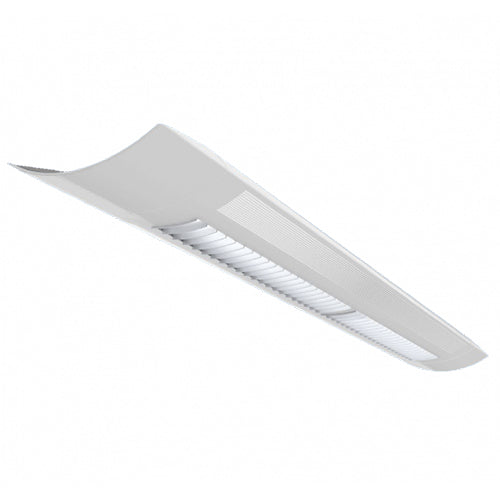

Advantage Environmental Lighting LALPP Louvered and Perforated LED Suspended Luminaire

The LALPP Series is an LED Pendant Mount Linear fixture available available for stand-alone or continuous run applications.

APPLICATIONS

The LALPP Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.

CONSTRUCTION

The fixture is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs or end caps. Scoop end cap adds a sleek, finished, architectural look to the luminaire. They are bolted to the die cast joiners for a complete architectural look.

OPTICAL SYSTEM

Satin lens, or middle baffle with no lens options available. Optional wide side perforation.

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications, 0-10V dimming included standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.

MOUNTING

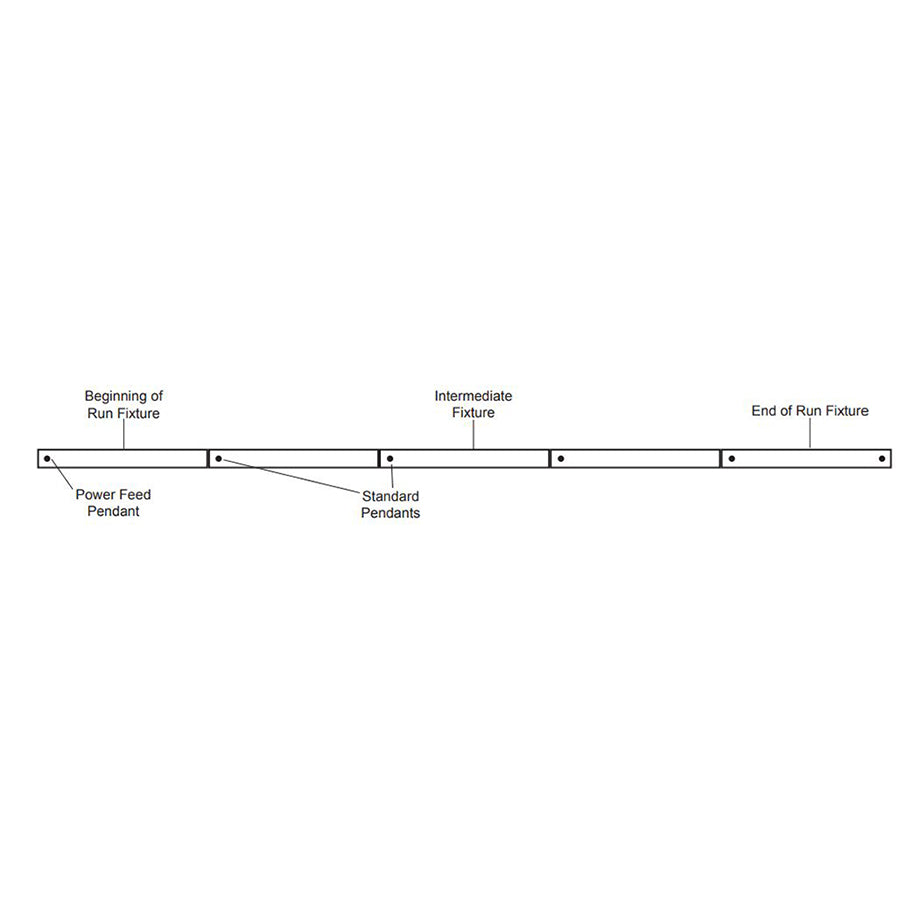

Designed to mount on exact 4 foot and 8 foot centers. Joiners will accept stems, single cable and power cords as supplied by others.

LISTINGS

UL and cUL Listed. Damp location rated.

WARRANTY

5-Year Limited Warranty.

LALPP40SWOPSLM4ECS/CP100/CPPF100: 4' Satin lens center with Perforated or smooth sides LED Suspended 13.2W 2024L 4000K LALPP40MWOPSLM4ECS/CP100/CPPF100: 4' Satin lens center with Perforated or smooth sides LED Suspended 20.4W 2836L 4000K LALPP40HSWOPSLM4ECS/CP100/CPPF100: 4' Satin lens center with Perforated or smooth sides LED Suspended 27.6W 3860L 4000K LALPP40HMWOPSLM4ECS/CP100/CPPF100: 4' Satin lens center with Perforated or smooth sides LED Suspended 41.2W 5872L 4000K LALPP40SWOPSLM8ECS/CP100/CPPF100: 8' Satin lens center with Perforated or smooth sides LED Suspended 26.4W 4048L 4000K LALPP40MWOPSLM8ECS/CP100/CPPF100: 8' Satin lens center with Perforated or smooth sides LED Suspended 40.8W 5672L 4000K
LALPP40HSWOPSLM8ECS/CP100/CPPF100: 8' Satin lens center with Perforated or smooth sides LED Suspended 55.2W 7720L 4000K LALPP40HMWOPSLM8ECS/CP100/CPPF100: 8' Satin lens center with Perforated or smooth sides LED Suspended 82.4W 11744L 4000K ECB*: Bull Nose End Cap (Replace ECS with ECB, Price per each)*
