Advantage Environmental Lighting LALPPDI Louvered and Perforated Direct and Indirect LED Pendant Mount

No reviews

Price:
Sale price$0.00 USD

Description

Advantage Environmental Lighting LALPPDI Louvered and Perforated Direct and Indirect LED Pendant Mount

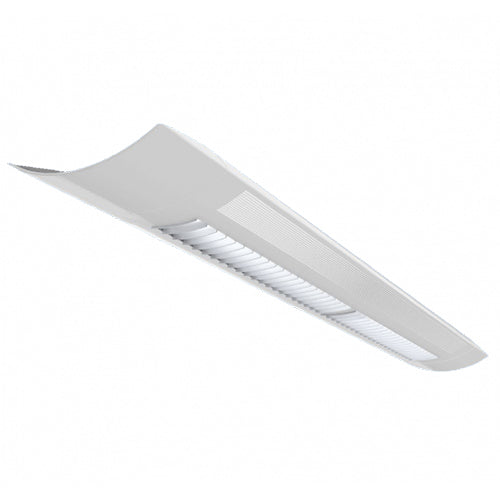

The LALPPDI Series is an LED Pendant Mount Direct and Indirect Linear fixture available available for stand-alone or continuous run applications.

APPLICATIONS

The LALPPDI Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.

CONSTRUCTION

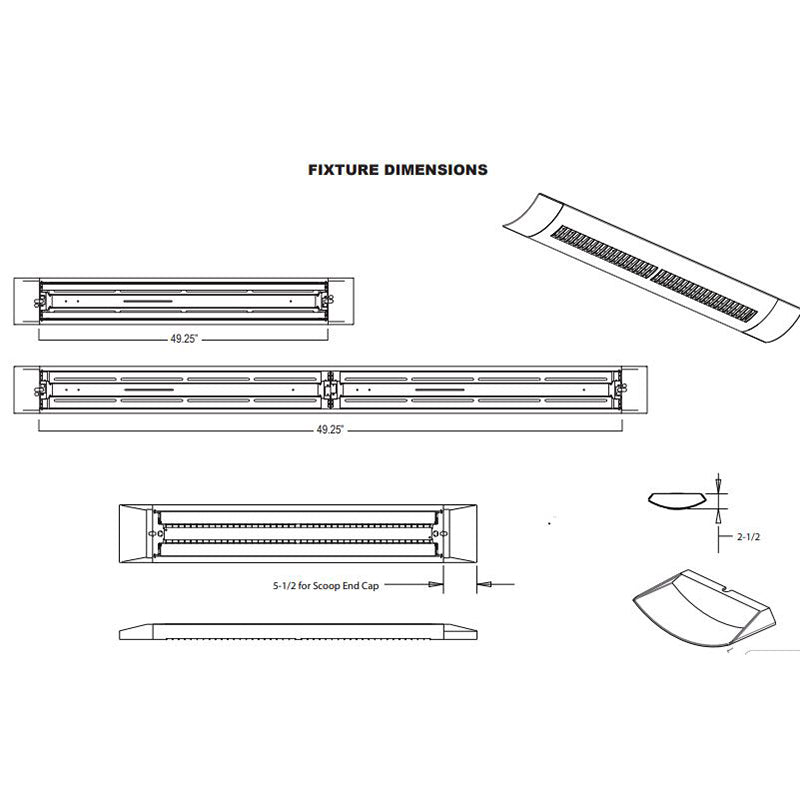

The fixture is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs or end caps. Scoop end cap adds a sleek, finished, architectural look to the luminaire. They are bolted to the die cast joiners for a complete architectural look.

OPTICAL SYSTEM

Satin lens, or middle baffle with no lens options available. Uplight provides a distribution that produces a very wide distribution for even ceiling brightness with mounting from 12 to 18 inches from the ceiling.

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications, 0-10V dimming included standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.

MOUNTING

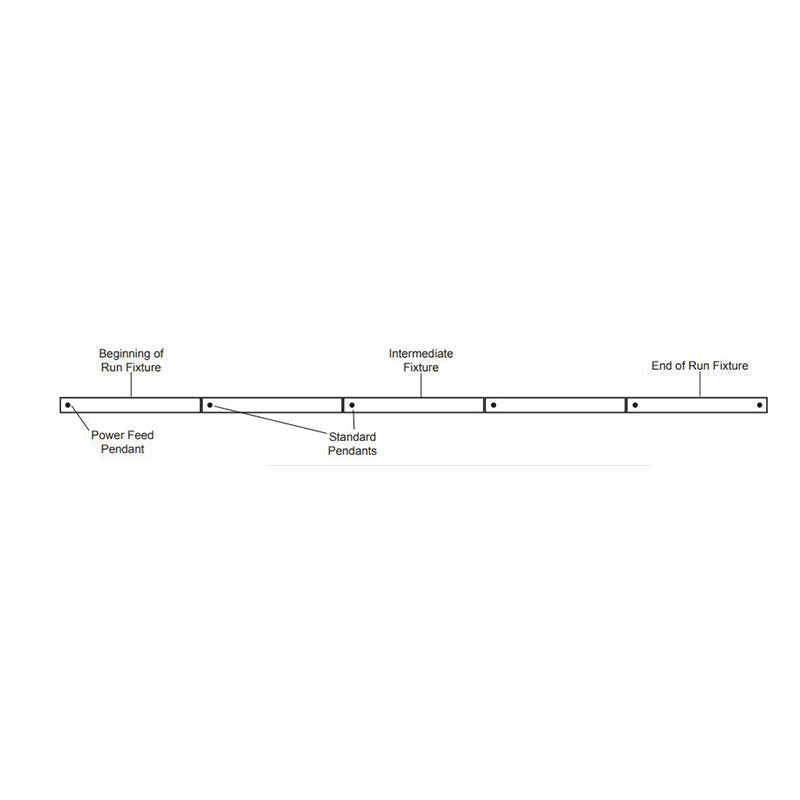

Designed to mount on exact 4 foot and 8 foot centers. Joiners will accept stems, single cable and power cords as supplied by others.

LISTINGS

UL and cUL Listed. Damp location rated.

WARRANTY

5-Year Limited Warranty.

LALPPDI40S40SWPSLM4ECS/CP100/CPPF100: 4' Satin lens center with Perforated or smooth sides LED Suspended Direct/Indirect 13.2W 2024L Up Light 13.2W 2024L Down Light 4000K LALPPDI40S40MWPSLM4ECS/CP100/CPPF100: 4' Satin lens center with Perforated or smooth sides LED Suspended Direct/Indirect 13.2W 2024L Up Light 20.4W 2836 Down Light 4000K LALPPDI40S40HSWPSLM4ECS/CP100/CPPF100: 4' Satin lens center with Perforated or smooth sides LED Suspended Direct/Indirect 13.2W 2024L Up Light 27.6W 3860L Down Light 4000K LALPPDI40S40HMWPSLM4ECS/CP100/CPPF100: 4' Satin lens center with Perforated or smooth sides LED Suspended Direct/Indirect 13.2W 2024L Up Light 41.2W 5872L Down Light 4000K LALPPDI40S40SWPSLM8ECS/CP100/CPPF100: 8' Satin lens center with Perforated or smooth sides LED Suspended Direct/Indirect 26.4W 4048L Up Light 26.4W 4048L Down Light 4000K LALPPDI40S40MWPSLM8ECS/CP100/CPPF100: 8' Satin lens center with Perforated or smooth sides LED Suspended Direct/Indirect 26.4W 4048L Up Light 40.8W 5672L Down Light 4000K
LALPPDI40S40HSWPSLM8ECS/CP100/CPPF100: 8' Satin lens center with Perforated or smooth sides LED Suspended Direct/Indirect 26.4W 4048L Up Light 55.2W 7720L Down Light 4000K LALPPDI40S40HMWPSLM8ECS/CP100/CPPF100: 8' Satin lens center with Perforated or smooth sides LED Suspended Direct/Indirect 26.4W 4048L Up Light 82.4W 11744L Down Light 4000K ECB*: Bull Nose End Cap (Replace ECS with ECB, Price per each)*

IES Files

Click for LALPPDI35HS35SWOPBM.IES
