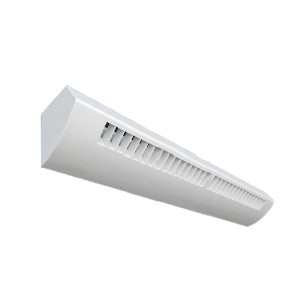

Advantage Environmental Lighting LALW Louvered LED Wall Mount Linear Luminaire
The LALW Series is a LED Wall Mount Linear fixture available available for stand-alone or continuous run applications.
The LALW Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.
The fixture is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs or end caps. Architectural die cast chamfered aluminum ends for a complete designer look without exposed fasteners.
White polyester polymer finish with a high reflectivity. Forward throw optics designed specifically for wall mount applications.
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >50K life hours (L70 @ 25°C). Complies with federal energy efficiency standards.
The units mount to a wall bracket that compensates for uneven surfaces and allows for recessed electrical boxes. The wall brackets are 48-3/4 long and two are needed with an eight foot housing. LISTINGS
UL and cUL Listed. Damp location rated.
1-Year Limited Warranty.
|LALW40SM4: 4' Louvered LED Wall Mount 3.3W 506LM/FT MV 120-277V 4000K
|LALW40HSM4: 4' Louvered LED Wall Mount 5.1W 709LM/FT MV 120-277V 4000K
|LALW40MM4: 4' Louvered LED Wall Mount 6.9W 965LM/FT MV 120-277V 4000K
|LALW40HMM4: 4' Louvered LED Wall Mount 10.3W 1468LM/FT MV 120-277V 4000K
|LALW40SM8: 8' Louvered LED Wall Mount 3.3W 506LM/FT MV 120-277V 4000K
|LALW40HSM8: 8' Louvered LED Wall Mount 5.1W 709LM/FT MV 120-277V 4000K
|LALW40MM8: 8' Louvered LED Wall Mount 6.9W 965LM/FT MV 120-277V 4000K
|LALW40HMM8: 8' Louvered LED Wall Mount 10.3W 1468LM/FT MV 120-277V 4000K
