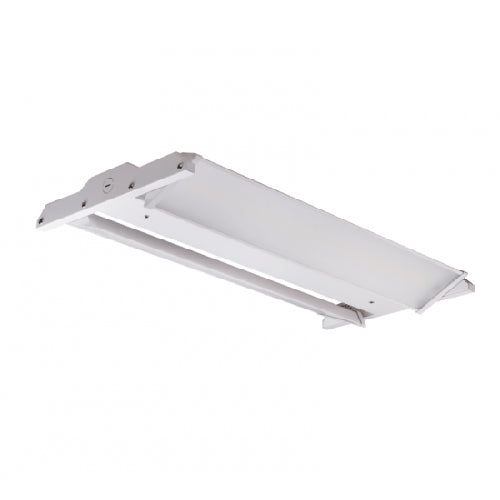

Advantage Environmental Lighting LBHB Architectural Style I-Beam High Bay

Sale price$0.00 USD


Advantage Environmental Lighting LBHB Architectural Style I-Beam High Bay


  • Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
  • Long-life LEDs provide 174,000 hours of operation with at least 70% of initial lumen output (L70).**
  • HBLA-15 delivers 15,297 lumens (140 lumens per watt, LPW) at 4000k, and 15,471 lumens (141 LPW) at 5000k.*
  • HBLA-23 delivers 22,970 lumens (139 LPW) at 4000k, and 23,223 lumens (140 LPW) at 5000k.*
  • HBLA-30 delivers 30,394 lumens (140 LPW) at 4000k, and 30,742 lumens (142 LPW) at 5000k.*
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming drivers are standard
  • Power factor > 0.90.
  • Total harmonic distortion < 20%.
  • Color rendering index > 80.
  • Painted steel housing and PMMA (polymethyl methacrylate) frosted lenses are standard.
  • Easy installation in new construction or retrofit.
  • Optics rotate up to 150°.
  • Chain-mount kits (includes v-hooks and 1/8” thick, 1-meter long chain) are standard.
  • Options include wire-guard kits, pendant mount kits, and surface mount kits. See 2nd page.


  • cULus listed for damp locations in ambient temperatures from -40°C to 50°C (-40°F to 122°F).
  • DLC premium.
  • Complies with RoHS (Restriction on Hazardous Substances) requirements.
  • Complies with FCC Part 15, class A.
  • Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level).
  • Complies with IEC/EN61000-4-5, input transient protection (2.0kV).
  • 5-year warranty of all electronics and housing.


  • Chain mounting with V-hooks is standard.
  • Optional pendant mounting kit (p/n LBHB-PMK-S) provides pendant attachment to ½” rigid conduit.
  • Optional surface mounting kit (p/n LBHB-SMK-S) provides attachment to solid surfaces.
LBHB15L4K: LED Linear Adjustable High Bay 109W 15297L 4000K MV 120-277V LBHB15L5K: LED Linear Adjustable High Bay 109W 15471L 5000K MV 120-277V LBHB23L4K: LED Linear Adjustable High Bay 166W 22970L 4000K MV 120-277V LBHB23L5K: LED Linear Adjustable High Bay 166W 23223L 5000K MV 120-277V LBHB30L4K: LED Linear Adjustable High Bay 217W 30394L 4000K MV 120-277V LBHB30L5K: LED Linear Adjustable High Bay 217W 30742L 5000K MV 120-277V
OS: LBHB Passive Infrared Occupancy Sensor ODS: LBHB Microwave Occupancy Sensor EM8: LBHB 800Lm Emergency Driver EM12: LBHB 1200Lm Emergency Driver EM16: LBHB 1600Lm Emergency Driver EM20: LBHB 2000Lm Emergency Driver
EM24: LBHB 2400Lm Emergency Driver EC8: LBHB 800Lm CEC Listed Emergency Driver EC12: LBHB 1200Lm CEC Listed Emergency Driver EC16: LBHB 1600Lm CEC Listed Emergency Driver EC20: LBHB 2000Lm CEC Listed Emergency Driver EC24: LBHB 2400Lm CEC Listed Emergency Driver
LBHBWG: LBHB Wire Guard LBHBPM: LBHB Pendant Mount Kit LBHBSM: LBHB Surface Mount Kit

IES Files

Click for LBHB-40-100-M.IES

Click for LBHB-40-150-M.IES

Click for LBHB-40-200-M.IES
