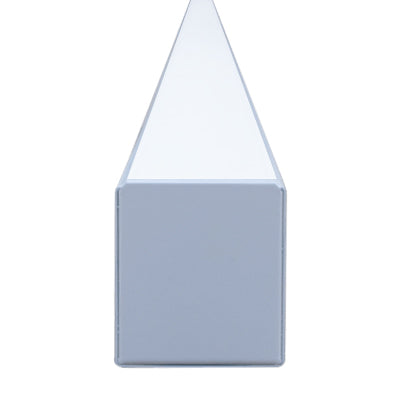

Advantage Environmental Lighting LDL22DS Suspended Direct Steel LED Luminaire
The LDL22DS Series is an architecturally designed Suspended Direct Steel LED Luminaire that is classically styled and fit for any interior. It is available for continuous run mounting.
APPLICATIONS
The LDL22DS Series of Suspended Direct Steel Luminaires were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and public areas.
CONSTRUCTION

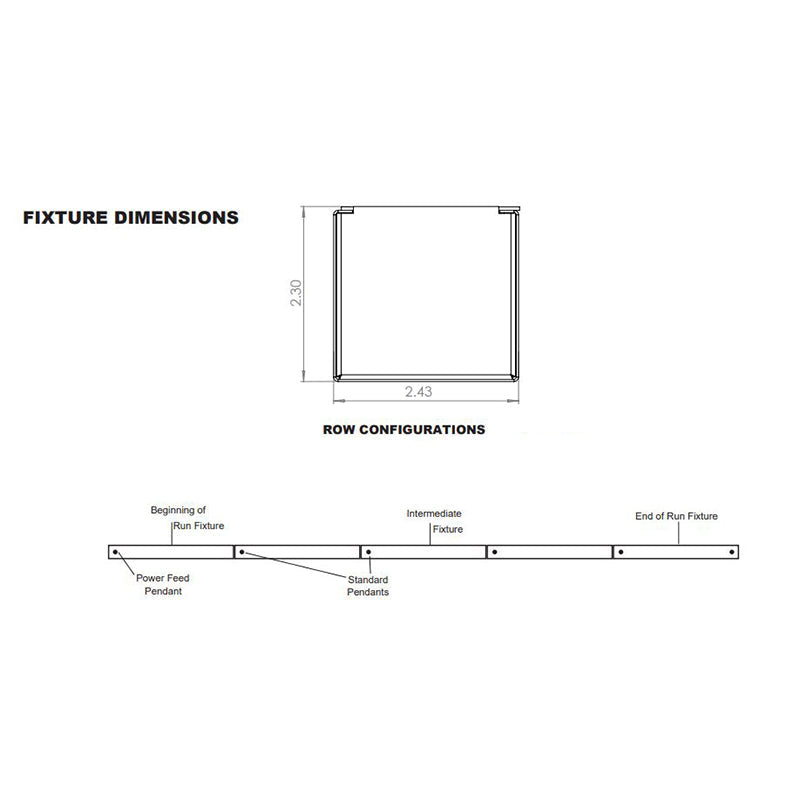

Our LDL22DS is constructed of a 2” wide heavy gauge steel body. The fixture is available in any run length within 1’ increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment. White polyester polymer finish with a high reflectivity.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Satin lens.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications, 0-10V Dimming driver included standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
This fixture is designed to be suspended or surface mounted. Continuous run available.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
WARRANTY
5-Year Limited Warranty.
IES Files
Click for LDL22DS-40-HM-S-M-W-4.IES
Click for LDL22DS-40-HS-S-M-W-4.IES
Click for LDL22DS-40-M-S-M-W-4.IES
Click for LDL22DS-40-S-S-M-W-4.IES
