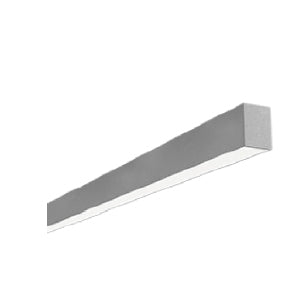

Advantage Environmental Lighting LDL3DS Suspended Direct Steel LED Luminaire
The LDL3DS Series is an architecturally designed Suspended Direct Steel LED Luminaire that is classically styled and fit for any interior. It is available for continuous run mounting.
APPLICATIONS
The LDL3DS Series of Suspended Direct Steel Luminaires were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, shopping malls, schools, and other public areas.
CONSTRUCTION

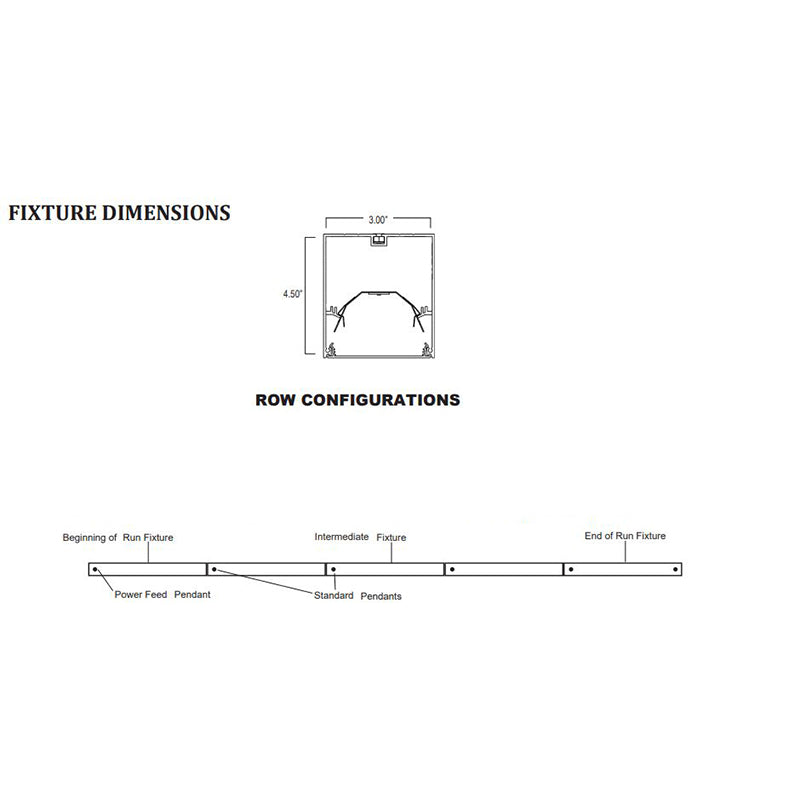

Our LDL3DS is constructed of a 3” wide heavy duty steel body. The fixture is available in any run length within 1’ increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Satin lens provides for a beautiful architectural design while maintaining optimal light output.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications, 0-10V Dimming driver included standard. Long-life LED system rated for >120K life hours (L70 @ 25° C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
This fixture is designed to be suspended. Continuous run available.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
WARRANTY
5-Year Limited Warranty.
