Advantage Environmental Lighting LRVT LED Round Vapor Tight

No reviews

Price:
Sale price$0.00 USD

Description

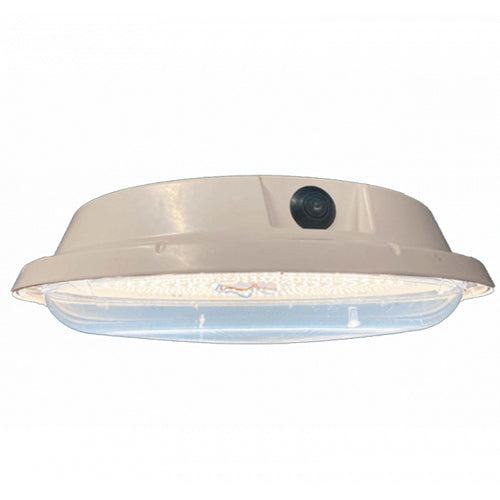

Advantage Environmental Lighting LRVT LED Round Vapor Tight

The LRVT is a small round LED perfect for lighting up small areas. The fixture is constructed with sleek latches and captive pins that seal housing and lens together, while providing the option of easy maintenance.

APPLICATIONS

Low bay areas that have limited space for lighting, replacement for existing fixtures, and industrial uses that require an IP67 rated fixture.

CONSTRUCTION

The fixture is constructed of UL 5VA fiberglass, heavily resistant to melting and burning.

OPTICAL SYSTEM

Choice of clear/frosted polycarbonate or acrylic lens. Round LED board gives even illumination.

ELECTRICAL SYSTEM

120-277V Applications, 0-10v dimming.

MOUNTING

Unit can be mounted by hook, pendant with hub, or J-box housing.

LISTINGS

UL listed, wet location rated. IP65, IP66, IP67 rated.

WARRANTY

5-Year Limited Warranty.

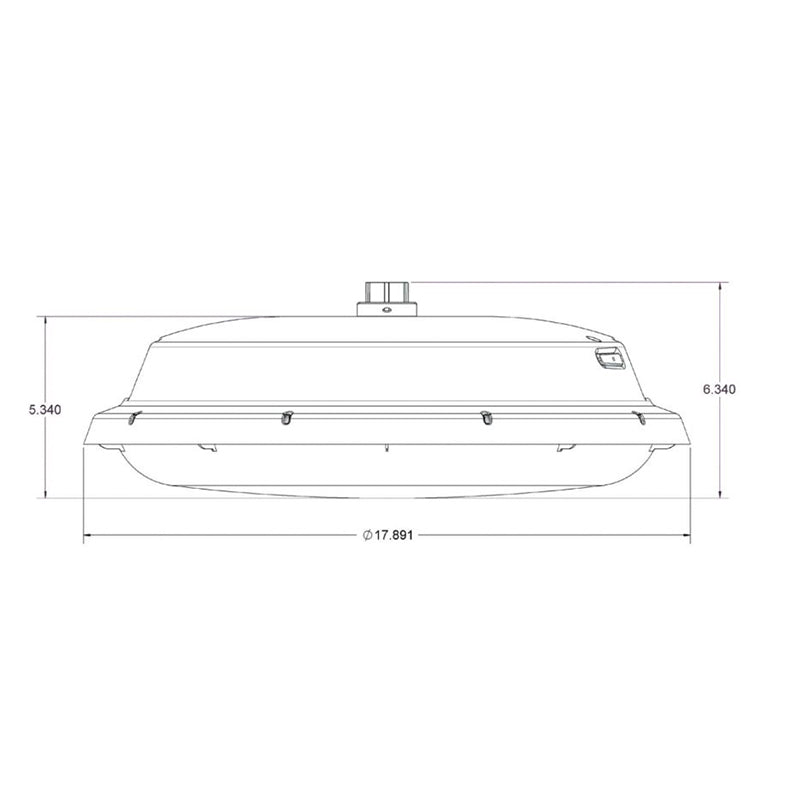

LRVT40SLCPM: LED Round Vapor Tight 17.89" (D) x 5.34" (H) 28W 4659L 4000K Clear Polycarbonate Lens LRVT40MLCPM: LED Round Vapor Tight 17.89" (D) x 5.34" (H) 49W 7974L 4000K Clear Polycarbonate Lens LRVT40HLCPM: LED Round Vapor Tight 17.89" (D) x 5.34" (H) 69W 11150L 4000K Clear Polycarbonate Lens LRVT40SMCPM: LED Round Vapor Tight 17.89" (D) x 5.34" (H) 75W 12040L 4000K Clear Polycarbonate Lens LRVT40MMCPM: LED Round Vapor Tight 17.89" (D) x 5.34" (H) 81W 13016L 4000K Clear Polycarbonate Lens LRVT40HMCPM: LED Round Vapor Tight 17.89" (D) x 5.34" (H) 98W 15728L 4000K Clear Polycarbonate Lens
LRVT40SHCPM: LED Round Vapor Tight 17.89" (D) x 5.34" (H) 103W 16500L 4000K Clear Polycarbonate Lens FP: Frosted Polycarbonate (Replace CP with FP) CA: Clear Acrylic (Replace CP with CA) FA: Frosted Acrylic (Replace CP with FA) HKM: Single Hook Mount PDM: Single Pendant Mount
DMB: Direct Mount with Bracket

IES Files

Click for LRVT-40-MM-FA-M.IES

Click for LRVT-40-MM-FP-M.IES
