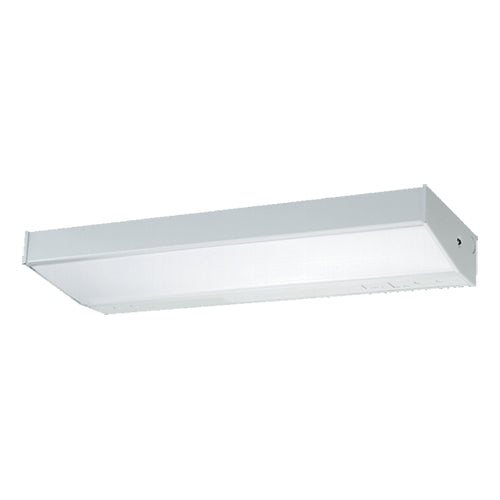

Advantage Environmental Lighting LWV35 Wall Vanity
The LWV35 Series is an LED Wall/Vanity fixture available in 1 or 2 lamp configurations. It is available with multiple lens and finish options.
APPLICATIONS
The LWV35 Series of LED wall/Vanity fixtures were designed to be high quality, energy efficient LED fixtures for use in wall or ceiling corridors, stairwells and bathrooms.
CONSTRUCTION
The fixture is constructed of a structurally embossed, heavy gauge, cold rolled steel.
OPTICAL SYSTEM
White pre-painted polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
Standard 120-277V, 0-10V dimming, 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Units are designed for surface mounting on either a wall or ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
Specification
Input Voltage |
120/277VAC |
Input Power |
33 - 179 Watts |
Input Frequency |
50/60 Hz |
CRI |
82 (minimum) |
Operating Ambient Temperature Range (Ta) |
30° to 50° C |
Lumen Output |
4650 - 25000 Lumens |
Standard dimmimg control |
0-10V |
CCT |
3000, 3500, 4000, 5000 Kelvin |
Life time rating |
>100,000 hrs @ L70 |
Power factor |
>0.9 |
LWV3540SLCPMW: 4' LED Wall Vanity 33W 4650L 4000K |
LWV3540MLCPMW: 4' LED Wall Vanity 57W 7974L 4000K |
LWV3540HLCPMW: 4' LED Wall Vanity 80W 11150L 4000K |
LWV3540SMCPMW: 4' LED Wall Vanity 86W 12040L 4000K |
