Description

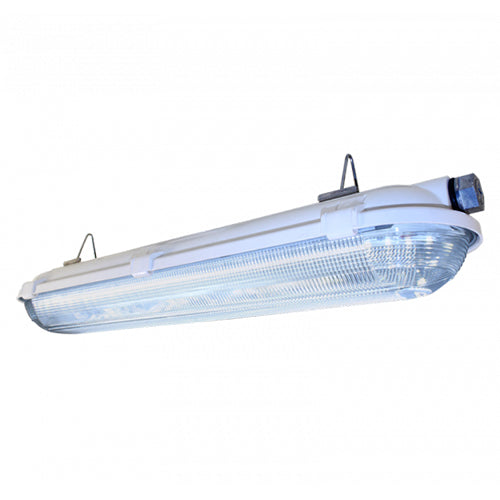

Advantage Environmental Lighting LXVTP LED Parking Garage Vapor Tight
The LXVTP series is an IP67/IP69K rated vapor tight designed for parking garages. Completely sealed against dust and moisture, designed for harsh environments. Available with a variety of lenses, latches, and wire entry configurations to meet the needs of various applications. The LXVTP utilizes state-of-the-art LED technology to deliver the highest possible efficacy in the lighting industry.
APPLICATIONS
The LXVTP series of vapor tights were designed for use in parking garages, and can withstand dusty, dirty, and wet locations.
CONSTRUCTION
Constructed of a compression molded self-extinguishing fiberglass reinforced polyester compound with UL 5VA flame rating (ASTM D635-74). F1 weatherability rating. Continuous perimeter poured in place gasket assures a consistent lens seal to housing. Two 1/4-28 brass studs molded into back of housing for attachments of optional mounting brackets. Gear tray positions LEDs for optimal light distribution of parking garages.
OPTICAL SYSTEM
Ribbed deep lens diffuses the angled LEDs, perfect for parking garage applications, and are available in a variety of finishes and materials. Lenses are designed for even illumination with no glare.
ELECTRICAL SYSTEM
120-277V applications, 0-10v dimming standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
Standard 316 stainless steel straps for surface mounting, or optional flush mounting bracket. Mounts to a snap-in-place mount or hook.
LISTINGS
UL and cUL Listed. Wet Location. NSF International Certified. IP65, IP66, IP67 rated. IP69K rated with lens options "RDRA" and "RCP".
WARRANTY
5-Year Limited Warranty.
