Advantage Environmental Lighting MEF4DA Suspended Direct Aluminum LED Luminaire
The MEF4DA Series is an architecturally designed Suspended Direct Aluminum LED Luminaire that is classically styled and fit for any interior. It is available for continuous run mounting.
APPLICATIONS
The MEF4DA Series of Suspended Direct Aluminum Luminaires are designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and public areas.
CONSTRUCTION

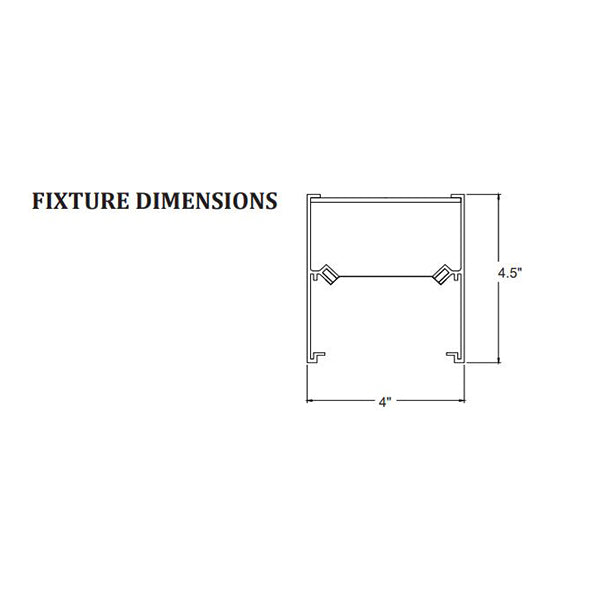

Our MEF4DA is constructed of a 4” wide aluminum body. The fixture is available in any run length within 1’ increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Linear ribbed acrylic lens. White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING

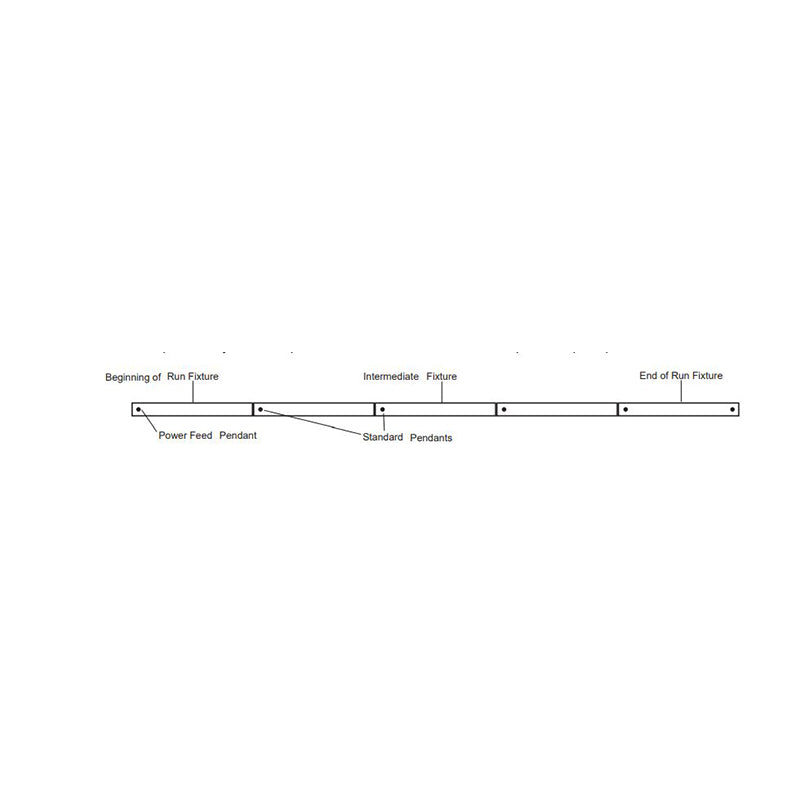

This fixture is designed to be suspended. Continuous run available.
LISTING
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
WARRANTY
5-Year Limited Warranty.
Specification
Input Voltage |
120/277 VAC |
Input Frequency |
50/60Hz |
CRI |
82 (minimum) |
Operating Ambient Temperature Range (Ta) |
Low Ambient -20*C/ High Ambient 50*C |
Standard dimmimg control |
0-10V |
CCT |
3000, 3500, 4000, 5000 Kelvin |
Life time rating |
100.000 hrs at L70 |
Power factor |
>0.9 |
