Description

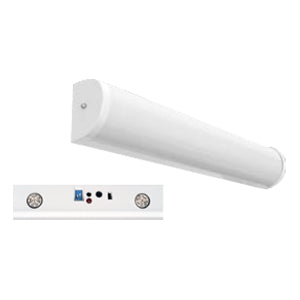

Advantage Environmental Lighting MWV07 Wall/Vanity LED Luminaire
The MWV07 Series is a Wall/Vanity LED Luminaire with a smooth white acrylic diffuser.
APPLICATIONS
The MWV07 Series of LED Wall/Vanity fixtures are designed to be high quality, energy efficient LED fixtures for use in corridors, stairwells, bathrooms, etc.
CONSTRUCTION
The fixture is constructed of a structurally embossed, heavy gauge, cold rolled steel. White finish with powder coated white ends.
OPTICAL SYSTEM
High output LED's available in 3000K, 3500K, 4000K, and 5000K. White pre-painted polyester polymer finish with a high reflectivity
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
The MWV07 Series is designed for surface mounting on either a wall or ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
Specification
| Input Voltage | 120/277VAC |
| Input Power | 33 - 179 Watts |
| Input Frequency | 50/60 Hz |
| CRI | 82 (minimum) |
| Operating Ambient Temperature Range (Ta) | 30° to 50° C |
| Lumen Output | 4650 - 25000 Lumens |
| Standard dimmimg control | 0-10V |
| CCT | 3000, 3500, 4000, 5000 Kelvin |
| Life time rating | 100,000 hrs @ L70 |
| Power factor | >0.9 |
IES Files
Click for MWV07-40-SL-SW-M-W-2.IES
