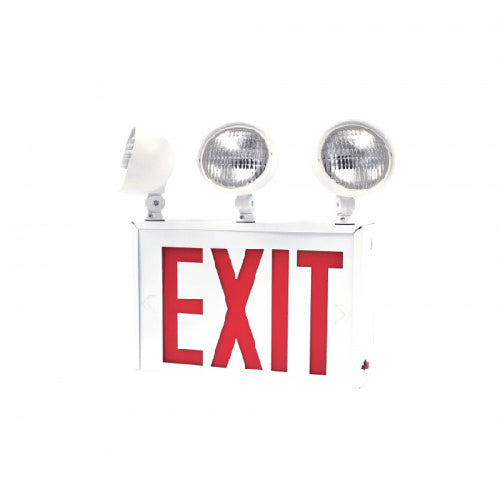

Advantage Environmental Lighting NYXEM6 New York Approved LED Exit & Incandescent Emergency Combo

No reviews

Price:
Sale price$0.00 USD

Description

Advantage Environmental Lighting NYXEM6 New York Approved LED Exit & Incandescent Emergency Combo

ILLUMINATION

  • Two fully-adjustable 12 watt, glare-free lamp heads with field installable 3rd emergency lighting head included.
  • K/Os provided on sides of unit to relocate lamp heads.
  • High-performance smooth metal reflector and glass lens for optimal light distribution.
  • Ultra-bright, energy efficient, long-life Red LED.
  • NY compliant 8” exit letters.

ELECTRICAL

  • Dual 120/277 voltage.
  • Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • LVD (low voltage disconnect) prevents battery from deep discharge.
  • 6V maintenance-free, rechargeable Sealed lead acid battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED board/lamp heads for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

  • Mounting hardware provided for back surface wall mount.
  • Top and side K/Os provided for conduit feed applications.
  • HOUSING
  • Durable, powder-coated 20-gauge steel construction in white or black finish.
  • Injection-molded, engineering-grade, high-impact, thermoplastic heads in white or black finish.
  • Field removable steel knockout Chevron directional indicators on exit face.

WARRANTY/LISTING

  • Five year warranty on all electronics and housing. Battery pro-rated for two years.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • UL listed for damp locations. (20°C – 50°C)

IES Files

Click for NYXEM6.IES
