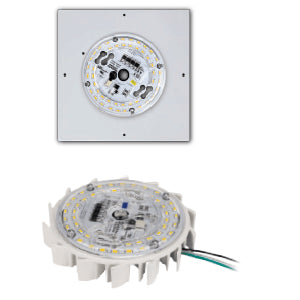

Advantage Environmental Lighting P213, P514 or P523 Circular LED Retrofit Kits/Arrays

No reviews

Price:
Sale price$0.00 USD

Description

Advantage Environmental Lighting P213, P514 or P523 Circular LED Retrofit Kits/Arrays

Features

  • UL 1598 Classified Retrofit Kit
  • AC Driver-On-Board Technology
  • Data Per NVLAP Accredited Laboratory
  • TRIAC Dimmable to 5% (forward & reverse phase)
  • Energy Star CSD
  • 5 Year Warranty

Specifications

  • Input voltage: 120VAC; 50/60Hz
  • 13W, 14W, & 23W Models
  • Available in 3000K or 4000K
  • Constant current design
  • High power factor > 0.98
  • Estimated 50,000 hrs L70

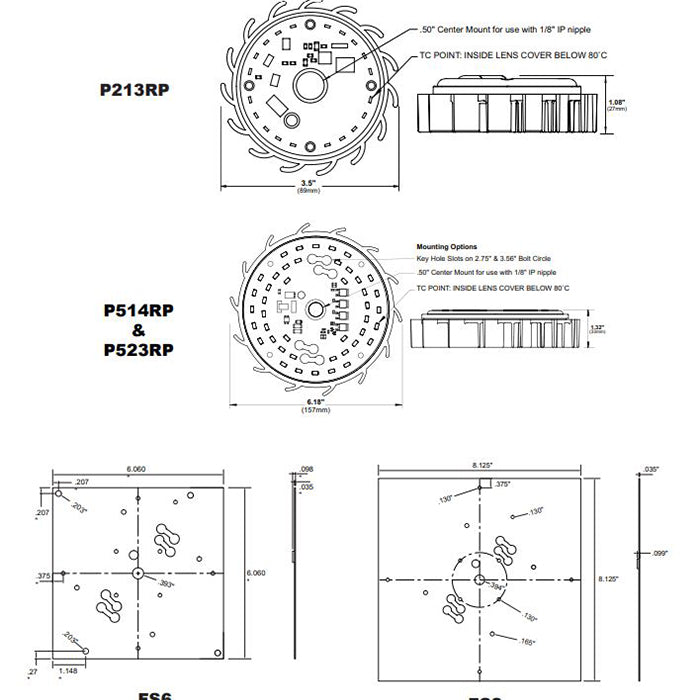

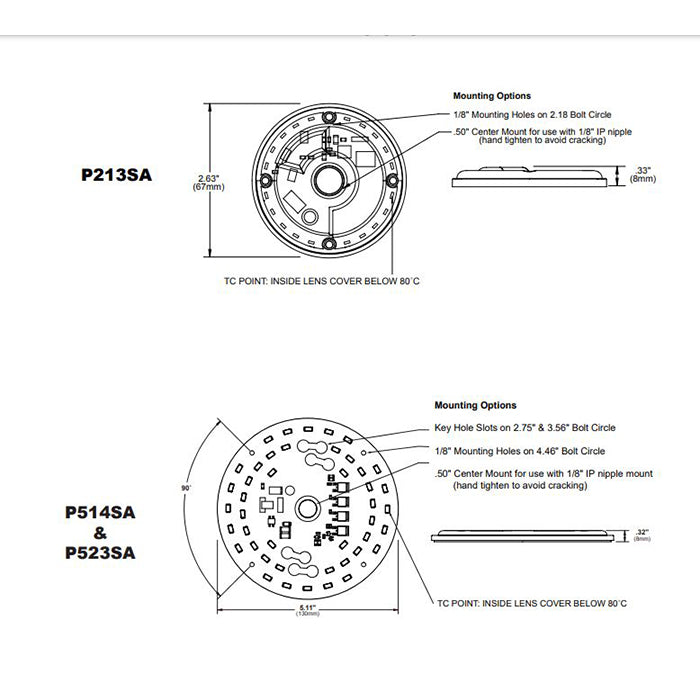

  • Max lens temp. (Tc): 80°C (see diagram for Tc location)
  • Optical grade polycarbonate lens
  • On board line surge protection
  • Standard mounting options for easy install w/ optional hardware
  • Integrated powdercoated aluminum heat sink w/ ground wire
  • Optional MOV ground surge protection
  • 12" 18 AWG leads
  • Retrofit Kits UL 1598 Classified
  • Arrays UL file: E464765 certified under UL standard 8750
  • FCC compliance Class B
