Description

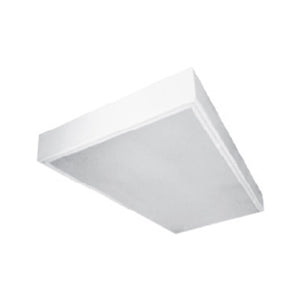

Advantage Environmental Lighting SMF High Quality Surface Mount Luminaire
The SMF Series is an architecturally designed surface mount fixture. The SMF Series is a Surface Mount Fluorescent available in 1x4, 2x2, and 2x4 body sizes. It was designed for standard surface mount applications. Multiple lensing options are available including diffusers or parabolic cubes. Driven by performance and a clean aesthetic, the SMFseries represents the ultimate in simplicity; a narrow, uniform line of light. Constructed with premium materials with industry lead-ing technology, integrates seamlessly with today’s modern building management systems.
APPLICATIONS
The SMF Series of Surface Mount Fluorescents were designed to be high quality, energy efficient fluorescent fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. A variety of lensing options are available.
MOUNTING
The fixture can be surface mounted for the perfect lighting solution for dark difficult areas which have proven to be blocked from normal lighting patterns or natural light.
CONSTRUCTION
The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast cover snaps into housing to cover ballast and wires.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty.
