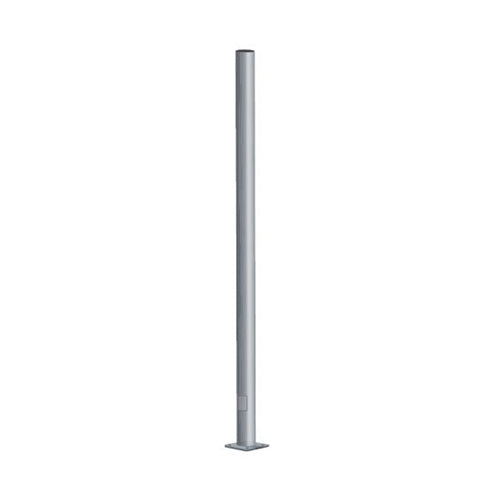

Advantage Environmental Lighting SSRD Straight Steel Round Pole - 5" Pole Size, 30" Height, 7 Gauge Construction


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Advantage Environmental Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Advantage Environmental Lighting SSRD Straight Steel Round Pole - 5" Pole Size, 30" Height, 7 Gauge Construction

CONSTRUCTION:

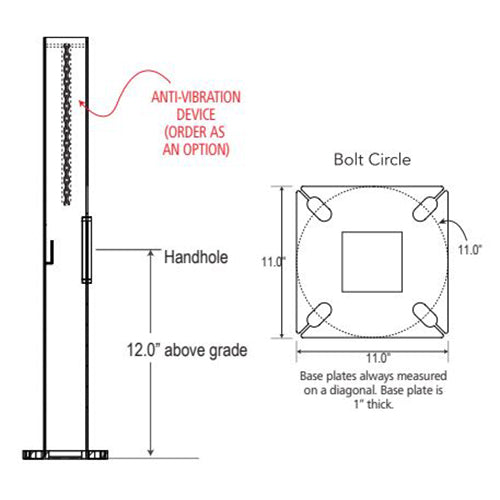

Our SSRD Pole is manufactured here in the U.S. from a single piece of formed steel. Featuring high strength, domestic hot rolled carbon steel. Our poles also come standard with a minimum yield strength of 50,000 PSI (which conforms to ASTM A500 grade C requirements). The easy-access hand hole is located 12" above the base. A high-quality, heavy-gauge ground lug is included standard.

ANCHOR BASE:

Our anchor base is made from ASTM A36 grade hot rolled carbon steel plate and comes standard with a minimum yield strength of 36,000 PSI. An aluminum marine-grade base plate cover is provided which encloses the base plate and anchor bolts. Anchor bolts are available to order as a separate line item, and are available as pre-shipped with a rigid template.

MOUNTING/DRILL PATTERN:

A variety of mounting and drill patterns are offered to meet the needs of various applications. Inquire with your N2M representative for custom drill patterns.

FINISH:

A highly durable, long-lasting polyester powder coat finish is standard and can be applied in a variety of finish options. Standard colors include black, bronze, white, green, silver, grey (custom colors are available). Galvanized and painted galvanized poles are also available.

WARRANTY: Standard:

2-Year warranty for structural and 5-Years for finish. Galvanized (extended warranty): 10-Year structural warranty combined with 5-Years for the finish. Our warranty will be voided if the pole is modified or installed improperly.*

Product Files

Click for Spec Sheet
