Description

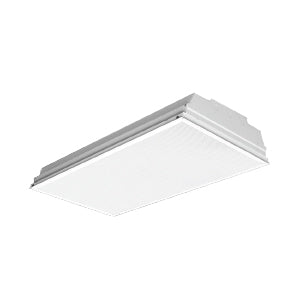

Advantage Environmental Lighting TRBL High Quality Lay In Recessed Troffer Luminaire Wired for LED Tubes
The TRBL Series is a Lay-In Troffer Wired for LED Tubes available in 1x4, 2x2, and 2x4 body sizes. It was designed for standard T-Grid applications. Multiple lensing options are available, if additional lenses are needed, consult factory. Architects find these fixtures especially functional for schools, offices, government facilities, public offices, and all other commercial types of applications on the market today. This fixture’s multiuse capability inspires its use in any area where energy efficiency is a must. *No Driver; with non-shunted sockets
APPLICATIONS
The TRBL Series of Lay-In LED Troffers were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. A variety of lensing options are available.
ELECTRICAL SYSTEM
120/277V Applications.
MOUNTING
The fixture can be recess mounted in a standard grid ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
| TRBL1232ALED: 1 x 4 - 2 lamp Lay-In Recessed Troffer Wired for LED Tubes | TRBL2217ALED: 2 x 2 - 2 lamp Lay-In Recessed Troffer Wired for LED Tubes | TRBL2317ALED: 2 x 2 - 3 lamp Lay-In Recessed Troffer Wired for LED Tubes | TRBL2417ALED: 2 x 2 - 4 lamp Lay-In Recessed Troffer Wired for LED Tubes | TRBL4232ALED: 2 x 4 - 2 lamp Lay-In Recessed Troffer Wired for LED Tubes | TRBL4332ALED: 2 x 4 - 3 lamp Lay-In Recessed Troffer Wired for LED Tubes |
| TRBL4432ALED: 2 x 4 - 4 lamp Lay-In Recessed Troffer Wired for LED Tubes |
IES Files
Click for TRBL4-4-32-A12-WT-18-40.IES
