Advantage Environmental Lighting WB High Quality 9" Fluorescent Wrap Luminaire

No reviews

Price:
Sale price$0.00 USD

Description

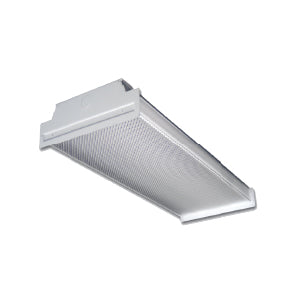

Advantage Environmental Lighting WB High Quality 9" Fluorescent Wrap Luminaire

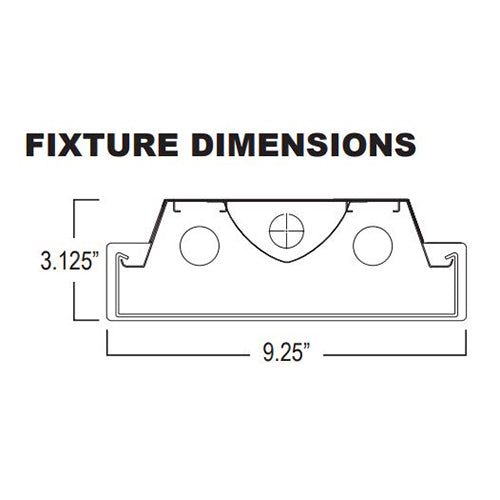

The WA Series is a 9” Fluorescent Wrap available in 1’ thru 8’ body lengths. It is a lowprofile, narrow 2 lamp wrap that was designed for surface mounting applications.

APPLICATIONS

The WA Series of Fluorescent Wraps were designed to be high quaility, energy effiecient fluorescent fixtures for use in commercial applications, industrial and garage applications, as well as kitchens, offices and storage rooms.

CONSTRUCTION

The fixture is contructed of a die-formed heavy gauge steel body. Housing embossed for maximum rigidity. Smooth hemmed sides for safe handling. Ballast Cover snaps into housing to cover ballast and wires.

OPTICAL SYSTEM

White polyester polymer finish with a minimum 82% reflectivity. Lift-and-shift lens. Advanced microprism clear acrylic lens design provides excellent lamp obscuration. Linear sides provide excellent light distribution and put more light in task areas. Manufactured from durable DR/Acrylic polymer blend.

ELECTRICAL SYSTEM

120-277V electronic program start ballasts. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.

MOUNTING

Unit maybe surface, stem or aircraft cable mounted individually or in continuous rows

LISTINGS

UL and cUL Listed. Indoor use only.

WARRANTY

1-Year Limited Warranty..
