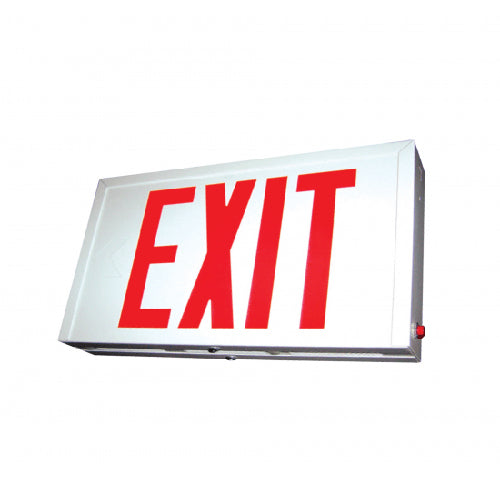

Advantage Environmental Lighting X12U Steel LED Exit Sign
ILLUMINATION
- Ultra-bright, energy efficient, long-life Red or Green LED.
ELECTRICAL
- Dual 120/277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 4.8V long-life, maintenance-free, rechargeable NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
- Mounting canopy included for top or end mount.
- Universal K/O pattern on back plate for wall mount.
HOUSING
- Durable, powder-coated 20-gauge steel construction in white or black finish.
- Unique design allows double face conversion in the field.
- Field selectable steel knockout Chevron directional indicators.
OPTIONS
- SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
- USA: Substantial transformation assembly in the U.S. complies with “AssembLED in the USA” under the Buy American Act.
WARRANTY/LISTING
- Five year warranty on all electronics and housing. Battery pro-rated for five years.
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL listed for damp locations. (0°C – 50°C)
