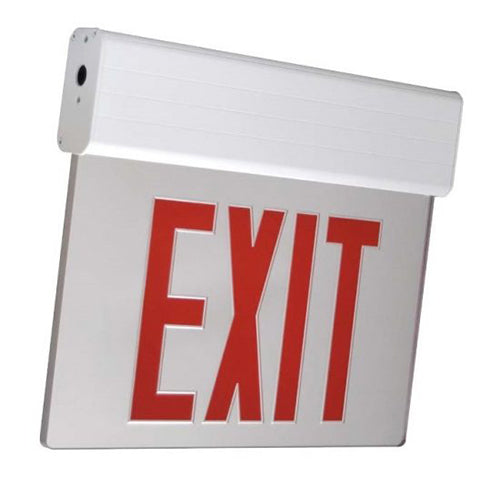

Advantage Environmental Lighting X1UBAA - BAA Compliant Aluminum LED Edgelit Exit Sign

ILLUMINATION

  • Ultra-bright, energy efficient, long-life Red or Green LED.
  • UV-stabilized ultra-clear acrylic edgelit panel provides consistent, uniform illumination.
  • Double face utilizes factory installed silver or white mylar background panel.

ELECTRICAL

  • Dual 120/277 voltage.
  • Charge rate power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
  • 4.8V long life, maintenance-free, rechargeable NiCd battery.
  • Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
  • Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

  • Aluminum mounting canopy included for top, end or back mount.

HOUSING

  • Premium-grade, extruded aluminum housing.
  • Self-adhesive Chevron appliqués and guide template provided for directional indication.

OPTIONS

  • 2C-120V/2C-277V: Voltage-specific dual circuit option on the AC-only unit enables it to be connected to two different supplies at the same time.
  • SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
  • SPV: UL Listed for 208/220/240 Volt, 50/60Hz.
  • Custom: Signs available with requested ‘special’ wording..

WARRANTY/LISTING

  • Five year warranty on all electronics and housing. Battery pro-rated for five years.
  • Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
  • UL listed for damp locations. (0°C – 50°C)
