Description

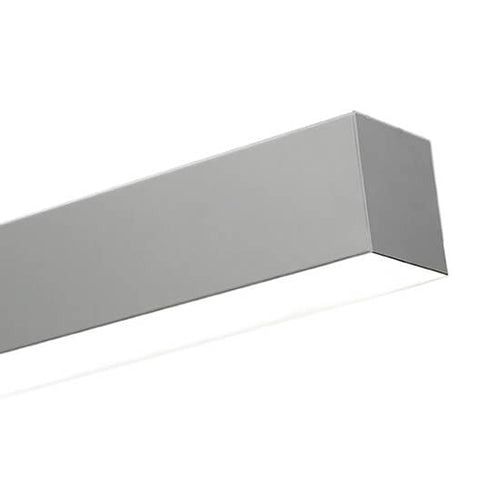

Advantage Environmental Lighting XDL24RWW 2.5" X 4.5" Recessed Wall Wash
The XDL24RWW is a recessed LED linear wall wash fixture, design with quality craftsmanship. Engineered for quick and easy tool-less installation. The XDL series provides clean lines, smooth continuous runs, and tight lens fitment. Available in continuous runs and custom angles and lengths.
Construction
Constructed of a precision cut, proprietary aluminum extrusion with flat end caps. Internal joiner system. Available in any length with a 2' minimum. Angled wall wash reflector.
Tool-less Entry
LED Board tray clips in with quick release holders, and held on by tethers. Releasing the clips drops and holds the board tray, allowing quick, tool-less, and easy wiring of the fixture.
Mounting
Lay-in grid fixtures fit 9/16 and 15/16 standard T-grids. Flanged mounting and flangeless trim mounting options include innovative top mount bracket to support the fixture.
LEDs
High Output LEDs are available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures. Integral LEDs are rated for at least 100K life hours (L70).
Optics
Snap-in satin acrylic lens fully diffuses the appearance of the LEDs and provides excellent light transmission.
Driver
0-10V dimming driver included standard. Driver options available for 1% dimming, Lutron EcoSystem, and DALI.
Finish
Matte white finish standard. Custom finish options are available in various RAL colors.
Options
Various options are available. If additional or custom options are needed, consult factory.
Features
- Tool-Less Entry
- High efficacy and lifespan LEDs
- Recessed, Flanged, and Flangeless Trim mounting
Innovative Features
- Light trap prevents light leaks
- Board tray quick-release holders
- Board tray connected with tethers
Specification
| CRI | >82 |
| Standard dimmimg control | 0-10V |
| Life time rating | >100,000 hrs |
| Color Consistency | >3 SDCM |
| Lumen efficiency | 160 |
