Description
Amerlux Curvano 2.5" Linear Fixture
An architecturally styled linear with the performance of a specification-grade luminaire, Curvano gracefully integrates eye-sweeping form and function in any interior architectural design without delay.

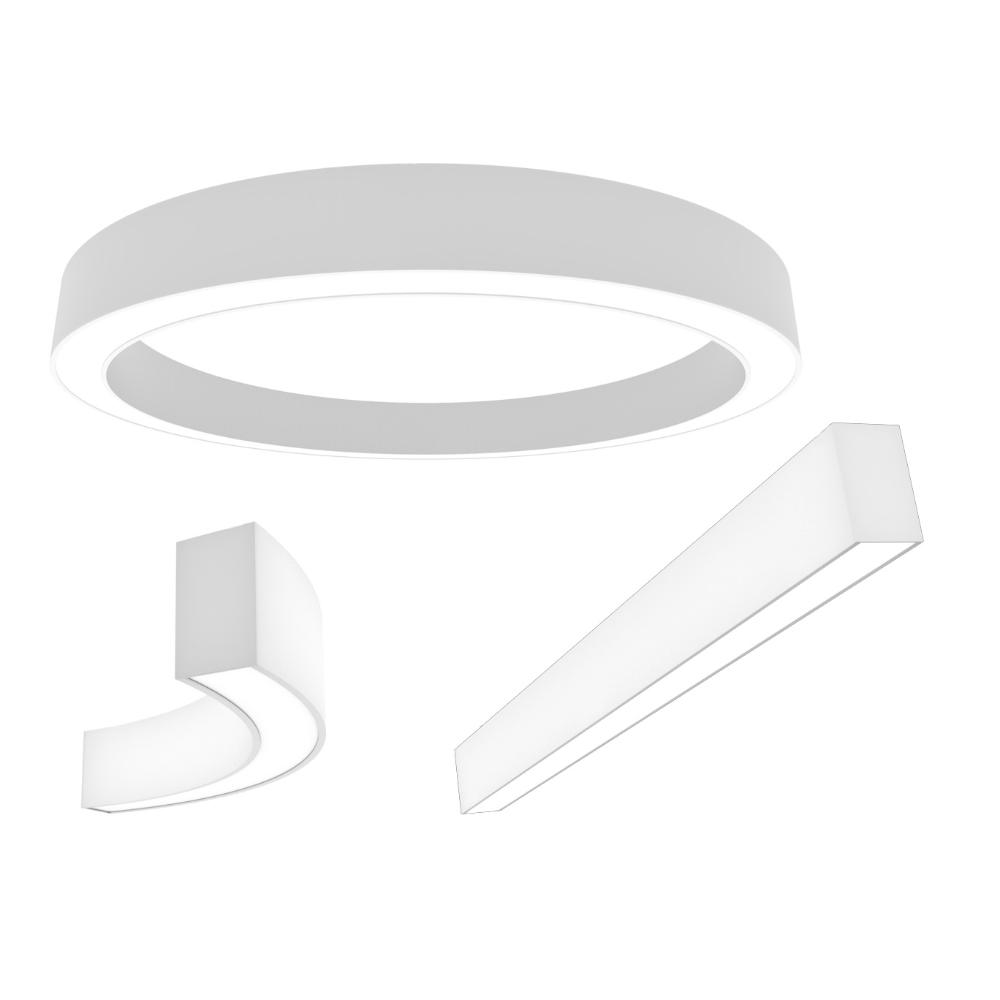

Curved and straight segments join to configure sinuous patterns of light - circular, serpentine, arc, rounded rectangular and straight segments included.
Offered in a 2.5" aperture in recessed and pendant mount as well as direct and direct/indirect. Five curved-diameter corner options and three circular selections are available in standard and custom request orders.
Architects and designers can create and order a layout on the same day, courtesy of a free-scaled model kit that's one-twelfth the fixture size. No engineering drawings are needed to confirm the desired shape.
Prewired with quick connectors between the units and power feed kits, Curvano's run alignment pins and preinstalled brackets make mounting and installing a snap. In addition, an end-cap light block shield prevents light leakage.
Features & Benefits
- Wattage: D: 10W/ft max, DI: 20W/ft max
- Lumen Output: D: 765 lm/ft, DI: 1967 lm/ft max
- Color Temp (CCT): 2700K , 3000K , 3500K , 4000K
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| Curvano 2.5" Linear Direct | 2.5" | N / N | 10W/ft max | 765 lm/ft max |
| Curvano 2.5" Linear Direct/Indirect | 2.5" | N / N | 20W/ft max | 1967 lm/ft max |
| Curvano 2.5" Recessed Linear | 2.5" | N / N | 10W/ft max | 765 lm/ft max |
Product Files
Click for Curvano 2.5" Pendant Direct Spec Sheet
Click for Curvano-Pendant-Circle-Arc-Instructions Install Sheet
Click for Curvano-Pendant-Straight-Curved-Pattern-Instructions Install Sheet
Click for Curvano 2.5" Pendant Direct/Indirect Spec Sheet
Click for Curvano 2.5" Recessed Spec Sheet
Click for Curvano-Recessed-IS-Circles-Arcs-Instructions Install Sheet
Click for Curvano-Recessed-IS-Straights-Curved-Pattern-Instructions Install Sheet
