Description
Amerlux Essenza 3.5" Round Downlight
Essenza® LED Downlights are designed to deliver the features required for your Hotel and Residential High Rise projects or commercial spaces. Available with 12w or 18w LED modules and centered around the outputs of traditional MR-16's, the Essenza is perfect for your lighting needs in these areas. The shallow frame (only 3-1/8" plenum depth) is universal to accept either round or square trims. Trims available include Downlight, Adjustable Accent, Pinhole, Wall Wash and Lensed Shower trims, giving designers the ability to complete any design scheme. Standard ELV or Triac dimming ensures you are ready to meet today's energy codes.
Features & Benefits
- Wattage: 18 max
- Lumen Output: 1548 max
- Candle Beam Center Power (CBCP): 13,230 max
- Color Temp (CCT): 2200K , 2700K , 3000K , 3500K , 4000K , Class A (Full Gamut) , Crisp White (Full Gamut) , Dim to Warm
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |

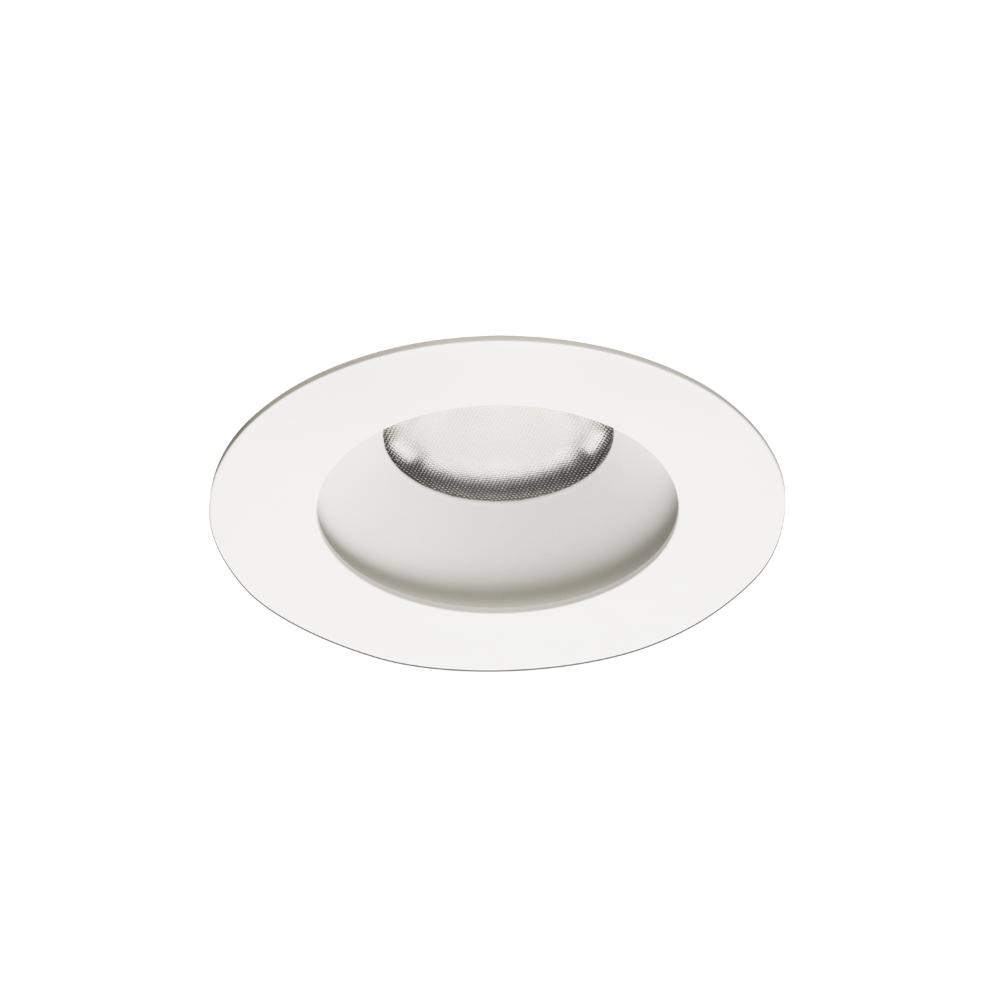

| Downlight | 3.5" | Y / Y | 12, 18 | 1,548 max |

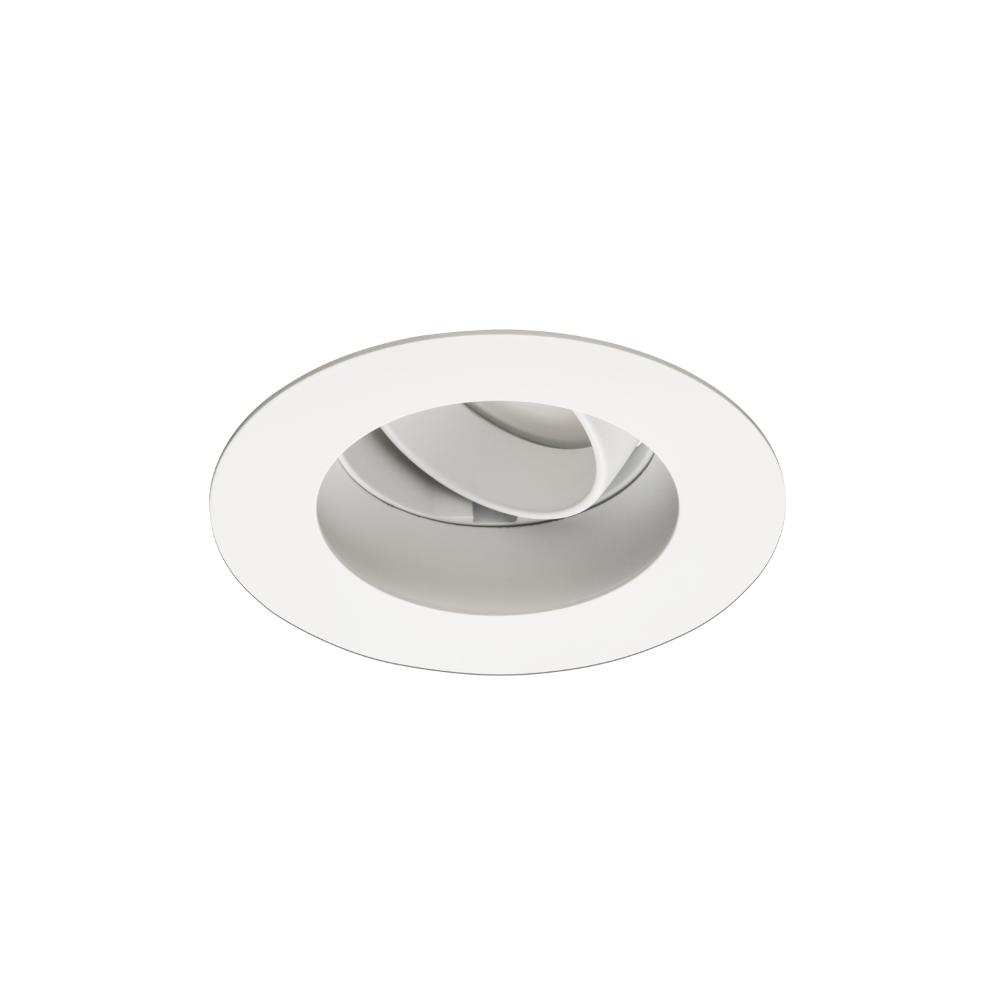

| Adjustable | 3.5" | Y / Y | 12, 18 | 1,398 max |

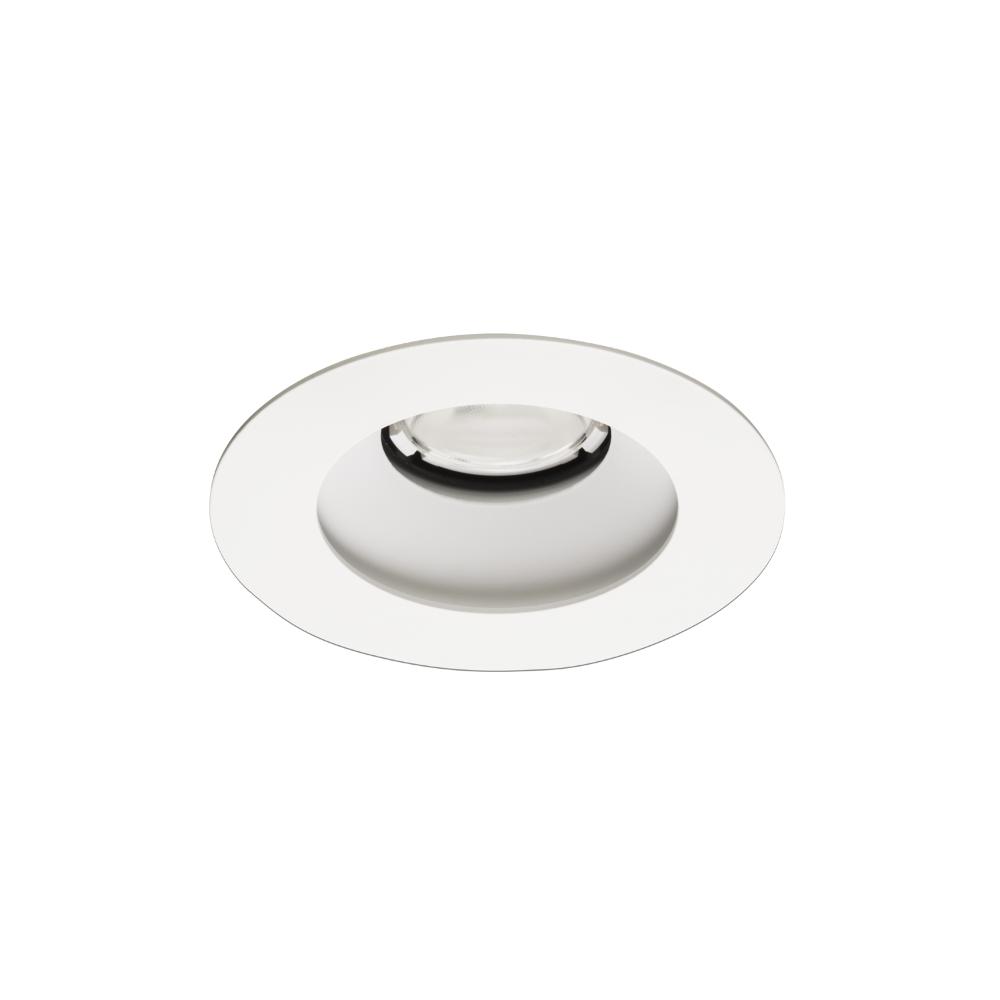

| Pinhole | 3.5" | Y / Y | 12, 18 | 1,548 max |
| Shower | 3.5" | Y / N | 12, 18 | 964 max |

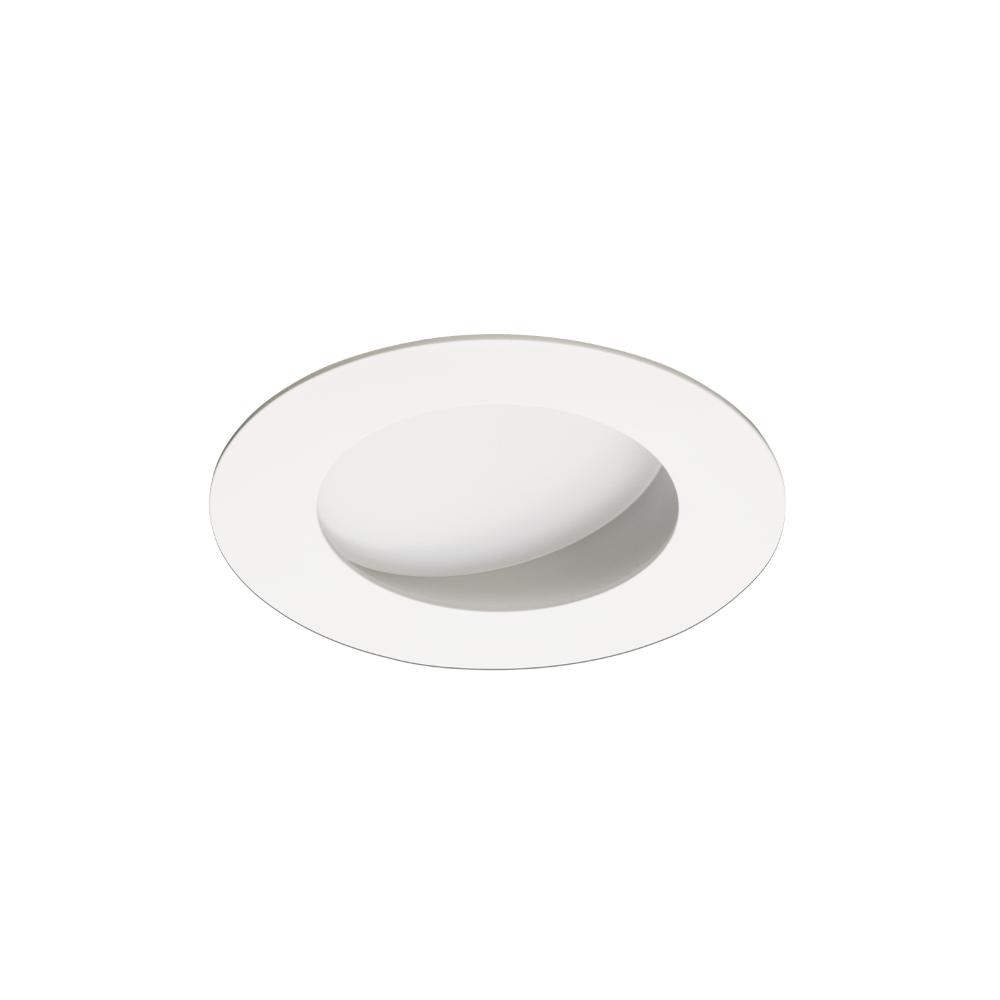

| Lensed Wall Wash | 3.5" | Y / Y | 12, 18 | 787 max |
Product Files
Click for EZSD-A17 Spec Sheet
Click for Essenza Trim Installation
Click for Essenza Frame Installation
Click for EZRPD-A17 Spec Sheet
