Description

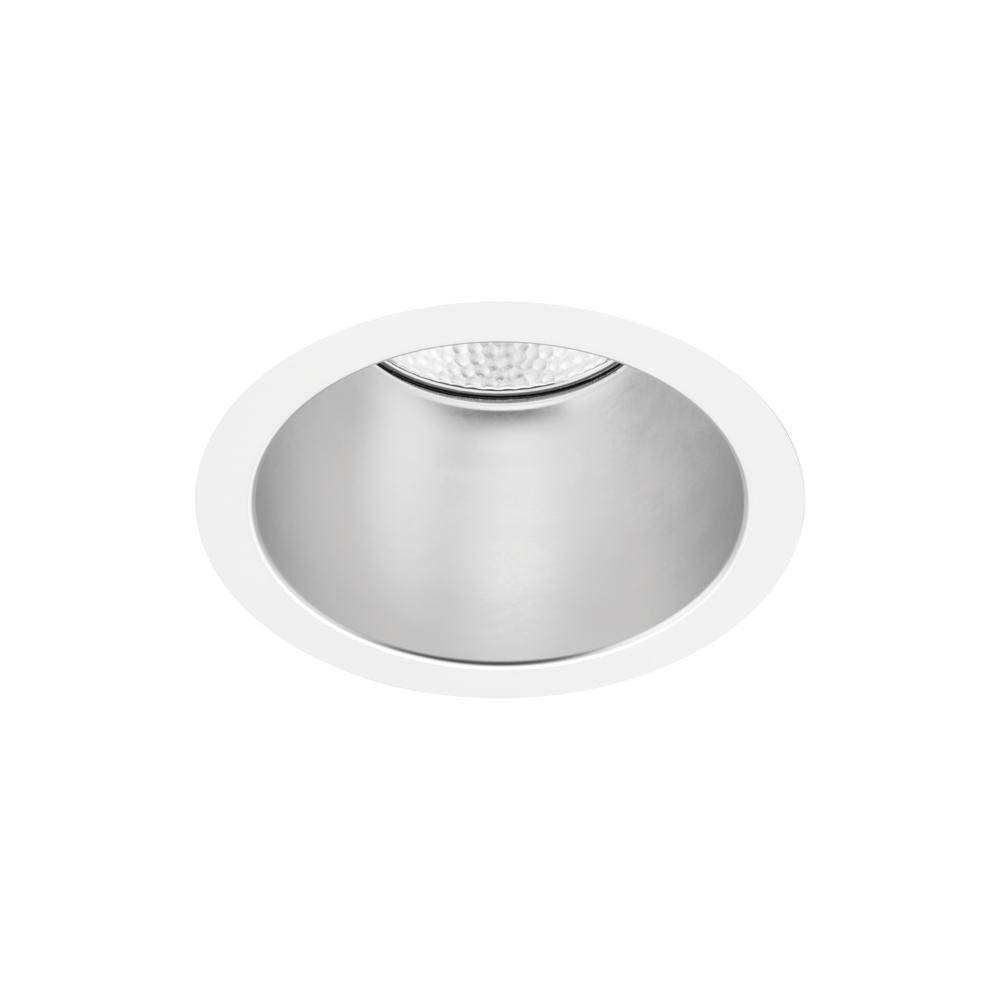

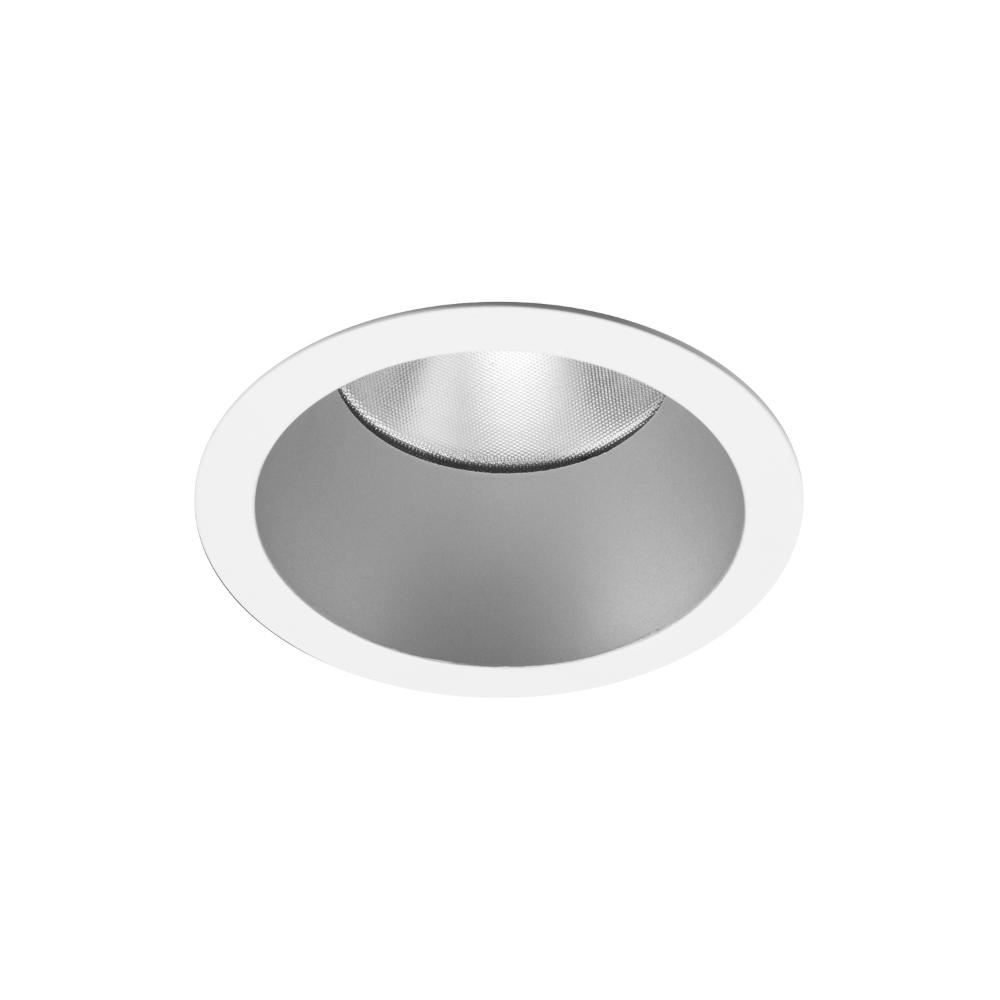

Amerlux Evoke 4.75" Round Downlight
The Evoke® 4.75 Downlight features the fit, finish and attention to detail of the existing Evoke line that you've loved since its introduction in 2006. With the current advancements in lighting technology Evoke 4.75" delivers the performance, energy savings and color you expect from a spec-grade LED downlight. Suitable for a variety of lighting schemes featuring general, accent and display applications, Evoke 4.75" gives architects and lighting designers the flexibility to complete sustainable lighting designs. Impressive performance, high lumen delivery, consistent color. Round and Square trim available.
Features & Benefits
- Wattage: 48 max
- Lumen Output: 4,103 max
- Candle Beam Center Power (CBCP): 21,790 max
- Color Temp (CCT): 2200K , 2700K , 3000K , 3500K , 4000K , Class A (Full Gamut) , Crisp White (Full Gamut)
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| Downlight | 4.75" | Y / Y | 13, 16, 21, 29 | 2,104 max |
| HP Downlight | 4.75" | Y / Y | 27, 36, 42, 48 | 3,804 max |

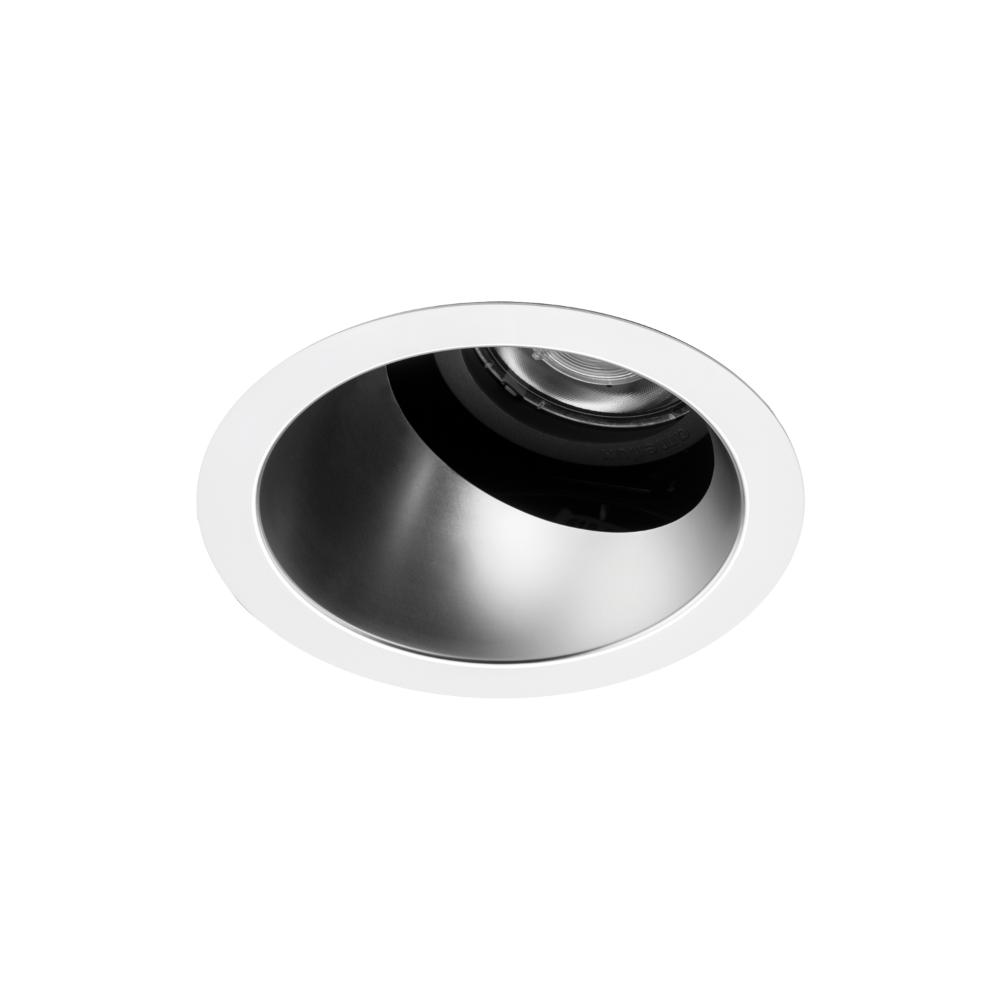

| Adjustable | 4.75" | Y / Y | 11, 15, 18, 20, 21, 23, 25, 29, 33 | - |
| Lensed Downlight | 4.75" | Y / Y | 16, 21, 30, 34, 42, 46 | 4,103 max |

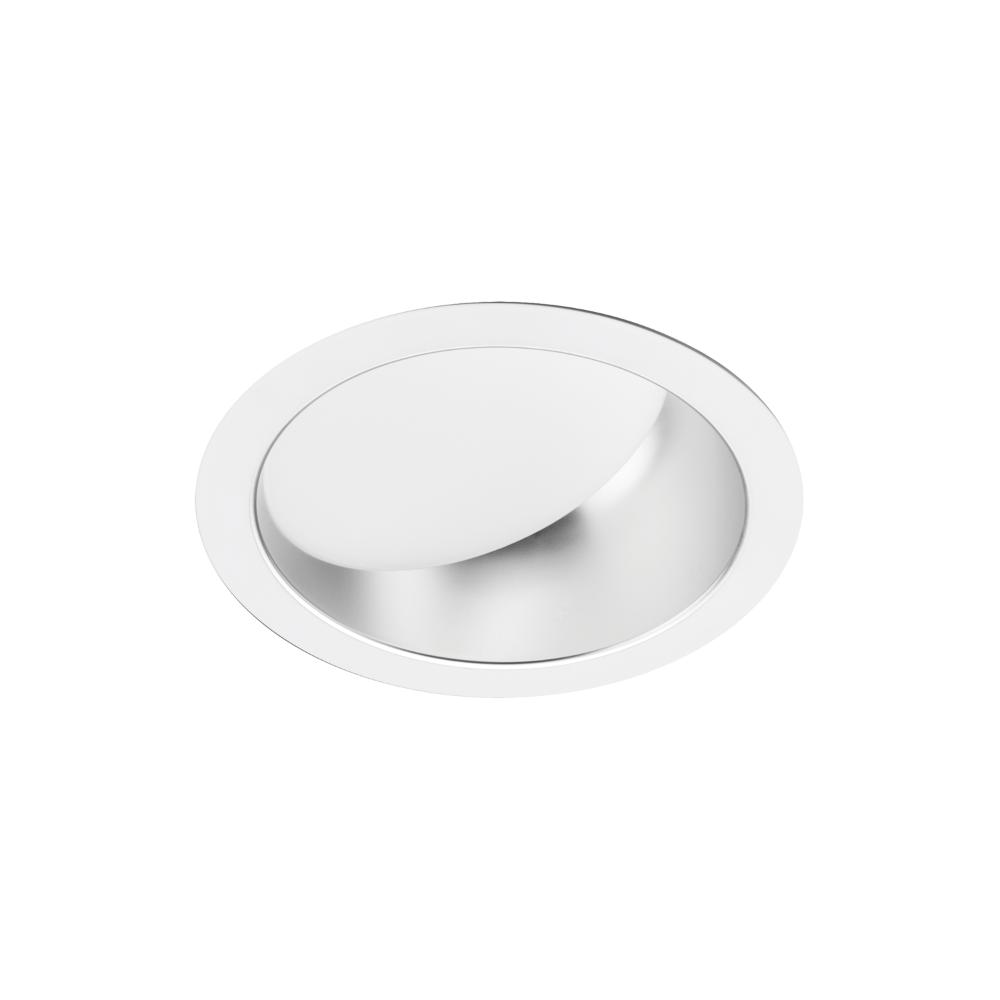

| Lensed Wall Wash | 4.75" | Y / Y | 16, 21, 30, 34, 42, 46 | 3,281 max |
| Shallow Trim Downlight | 4.75" | Y / Y | 13, 16, 21, 29 | 3,804 max |
Product Files
Click for I-E475RD-A15 Spec Sheet
Click for E4.75RD-SD_RLW-SLW Install Sheet
Click for Evoke 4.75 Round High Power Downlight Spec Sheet
Click for E4-75RA(SA) Install Sheet
Click for Evoke 4.75 Round Lensed Downlight Spec Sheet
Click for Evoke 4.75 Round Shallow Trim Downlight Spec Sheet
