Description

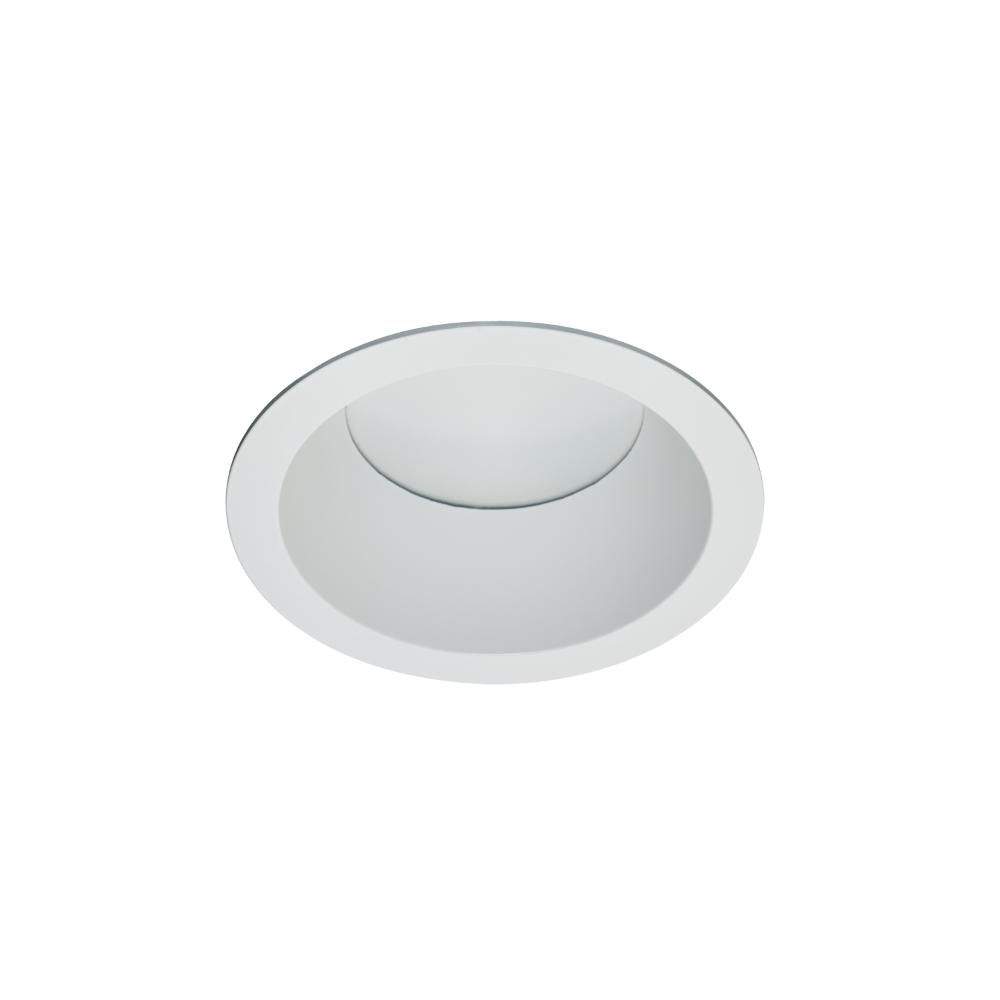

Amerlux Hornet HP 3.5" Round Downlight
The Hornet® family of downlights offers high performance in a compact 3.5" size. The Hornet® HP is available in various styles including Downlight, Adjustable, Pinhole Adjustable, Pinhole Adjustable Slot, and Shower Trim. There are also Lensed Downlight and Lensed Wall Wash options. Additionally, there are Remodeler and Trimless options available.
Features & Benefits
- Wattage: 30 max
- Lumen Output: 2,654 max
- Candle Beam Center Power (CBCP): 12,508 max
- Color Temp (CCT): 2200K , 2700K , 3000K , 3500K , 4000K , Class A (Full Gamut) , Crisp White (Full Gamut) , Dim to Warm
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| Downlight | 3.5" | Y / Y | 13, 18, 20 | 1,323 max |

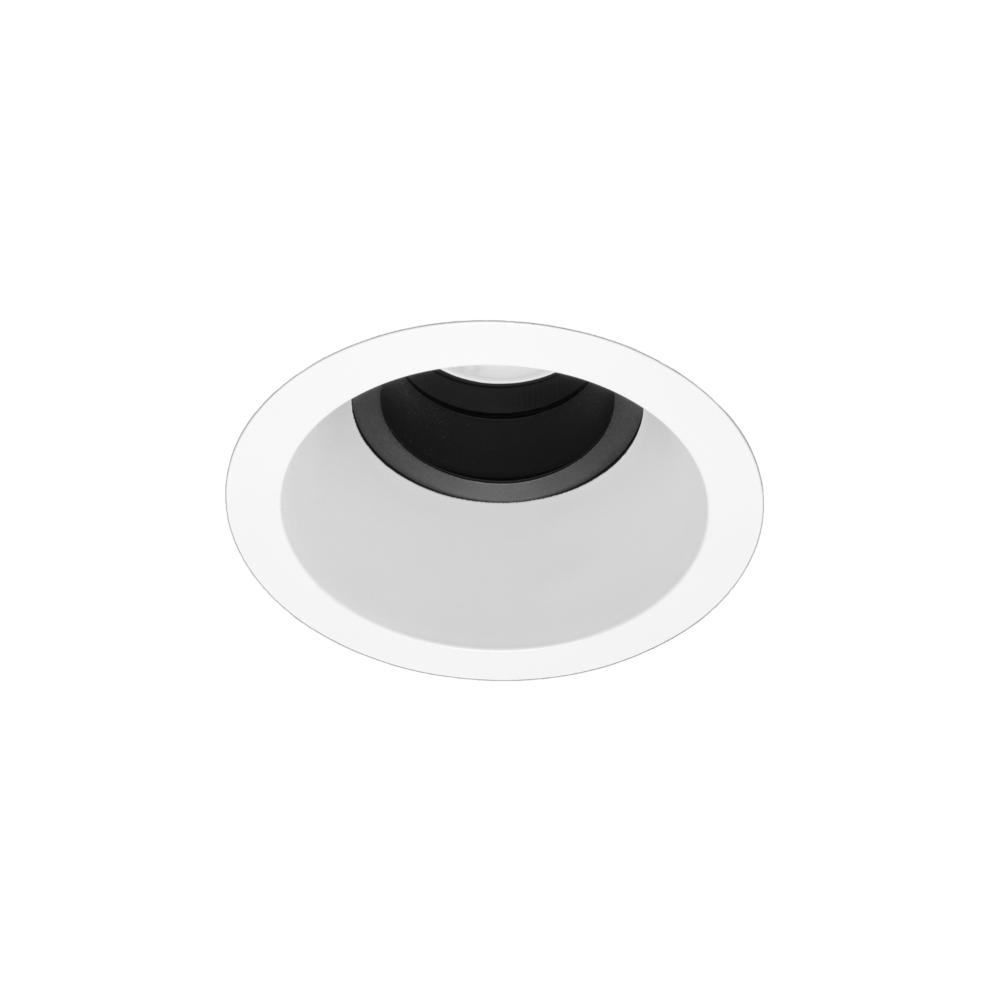

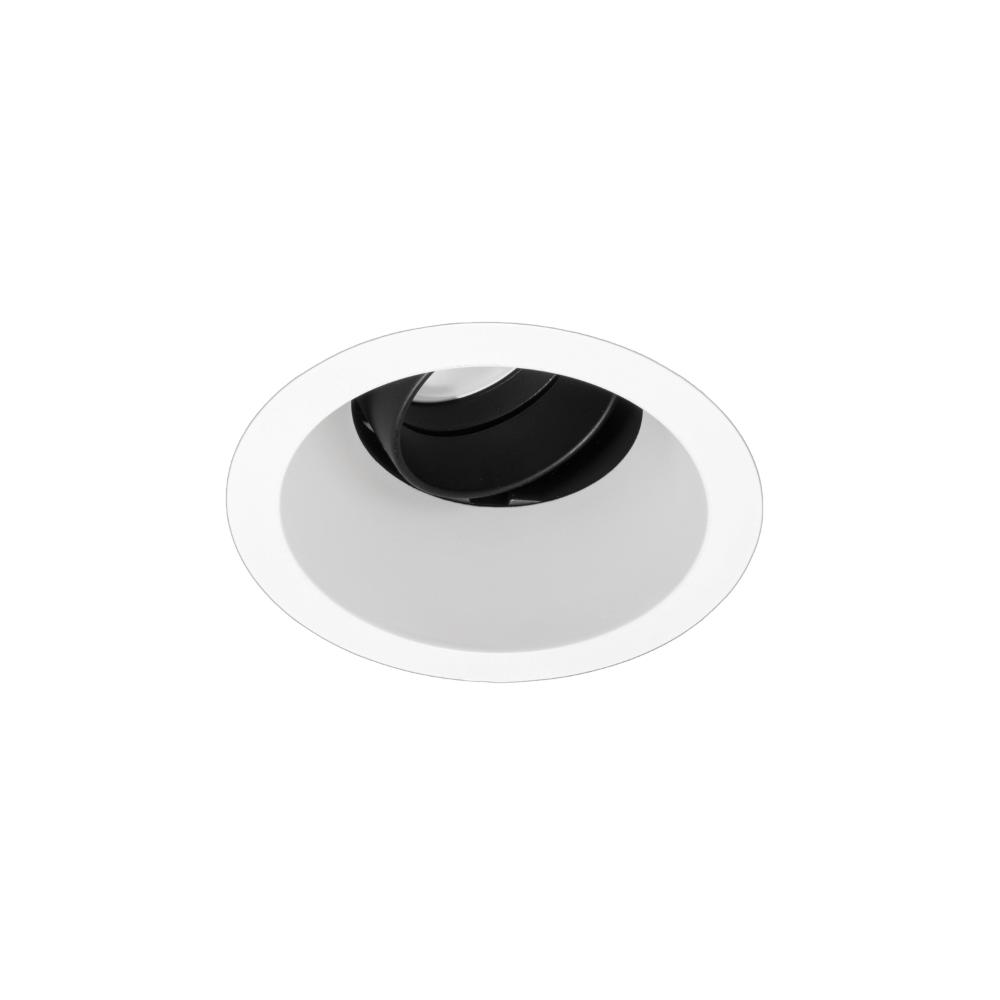

| Adjustable | 3.5" | Y / Y | 13, 18, 20 | 1,323 max |

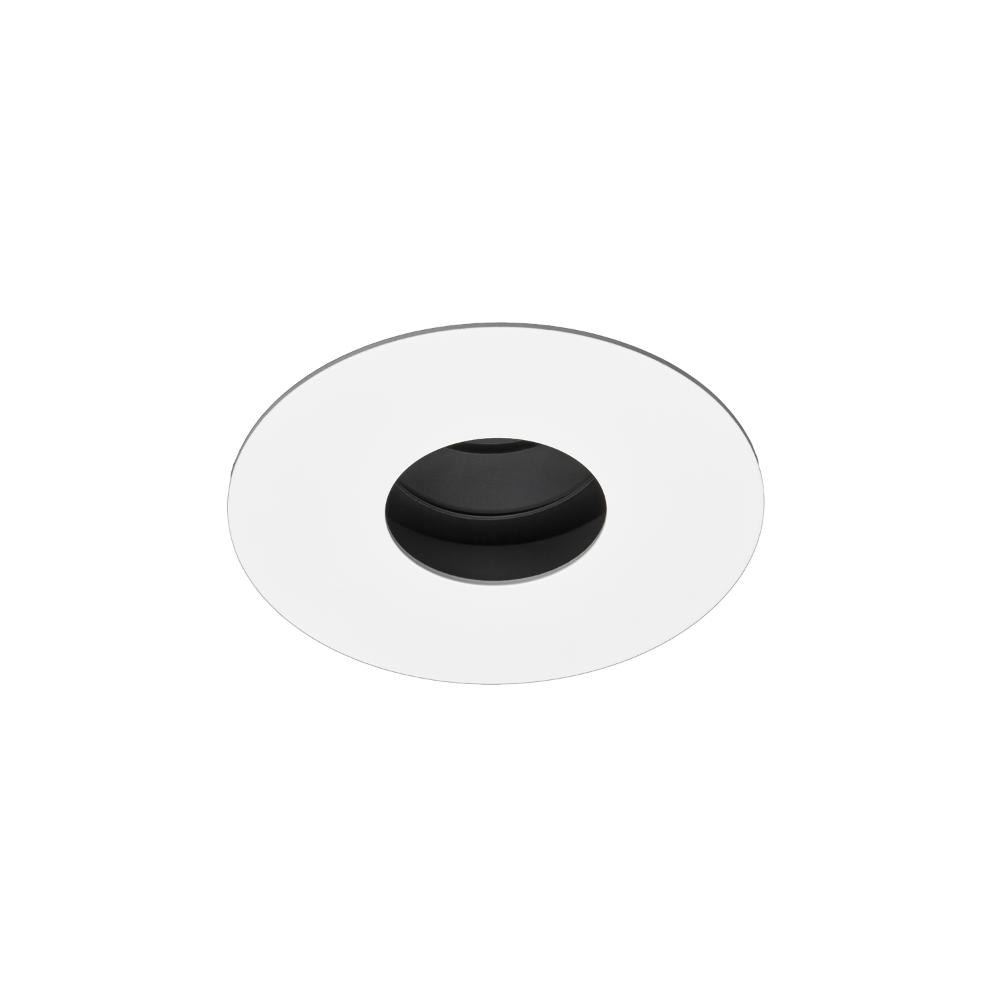

| Pinhole Adjustable | 3.5" | Y / Y | 13, 18, 20 | 1,099 max |

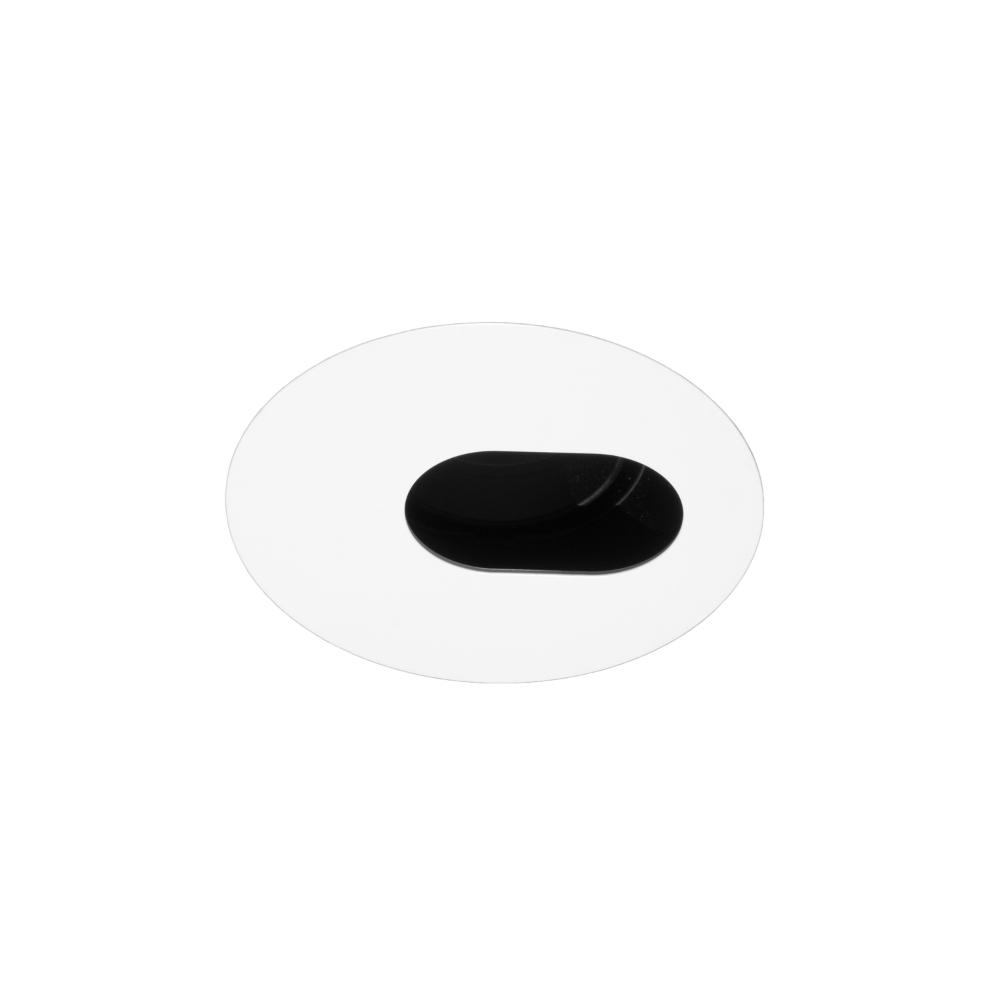

| Pinhole Adjustable Slot | 3.5" | Y / Y | 13, 18, 20 | 1,016 max |
| Shower | 3.5" | Y / N | 13, 18, 20 | - |

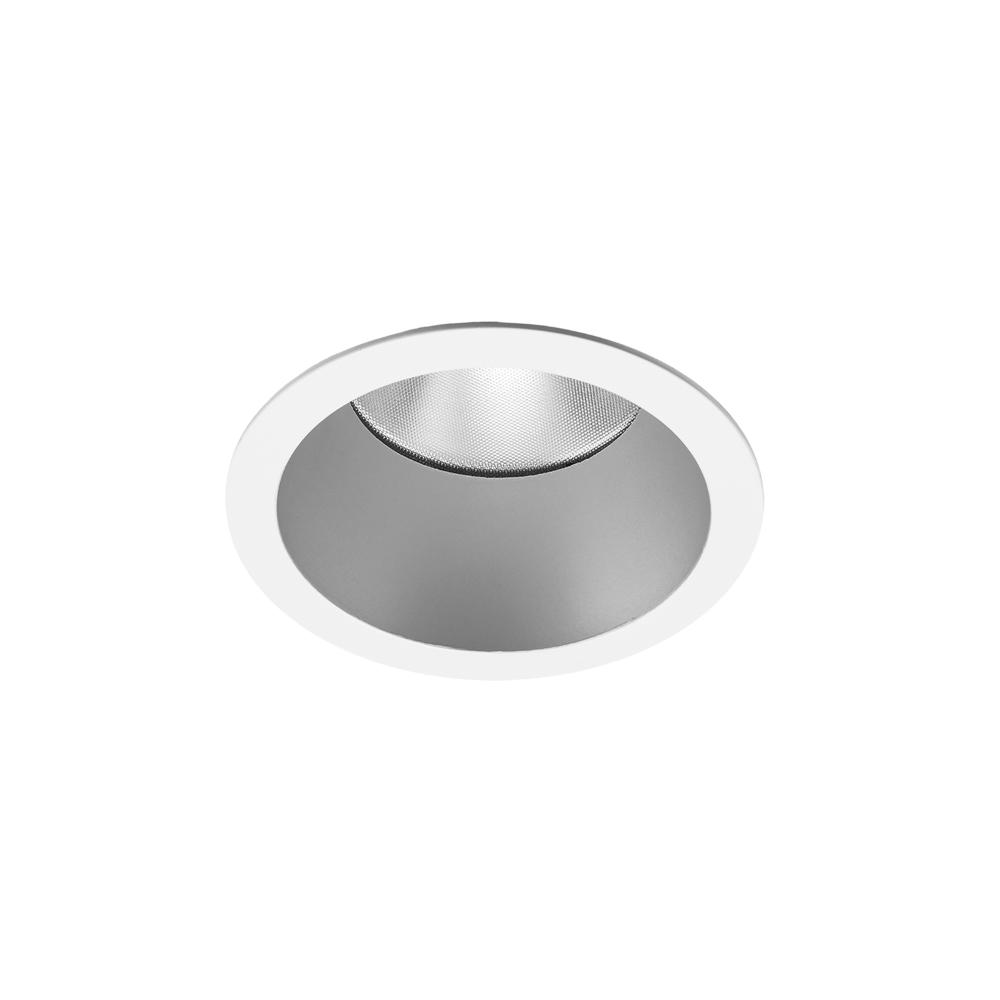

| Lensed Downlight | 3.5" | Y / Y | 9, 12, 16, 23, 27, 30 | 2,654 max |
| Lensed Wall Wash | 3.5" | Y / Y | 9, 12, 16, 23, 27, 30 | 2,569 max |
Product Files
Click for HDL-HP-RD Spec Sheet
Click for HDL-HP-RD-DTW Spec Sheet
Click for I-HDL-HP-RD International Spec Sheet
Click for I-HDL-HP-RD-TL International Spec Sheet
Click for I-HDL-HP-RA International Spec Sheet
Click for I-HDL-HP-RA-TL International Spec Sheet
Click for I-HDL-HP-RPA International Spec Sheet
Click for I-HDL-HP-RPA-TL International Spec Sheet
Click for I-HDL-HP-RPAS International Spec Sheet
Click for I-HDL-HP-RPAS-TL International Spec Sheet
Click for I-HDL-HP-RPASHW International Spec Sheet
Click for HDL-HP-RLD Spec Sheet
Click for HDL-HP-RLD-DTW Spec Sheet
Click for I-HDL-HP-RLD International Spec Sheet
Click for I-HDL-HP-RLD-TL International Spec Sheet
Click for I-HDL-HP-RLW International Spec Sheet
Click for I-HDL-HP-RLW-TL International Spec Sheet
Click for HDL-HP Frame Installation
Click for HDL-HP Millwork Frame Installation
Click for HDL-HP Optical Head Installation
Click for HDL-HP Driver Replacement
Click for HDL-HP Optical Head-Beam Spread Change Instruction
