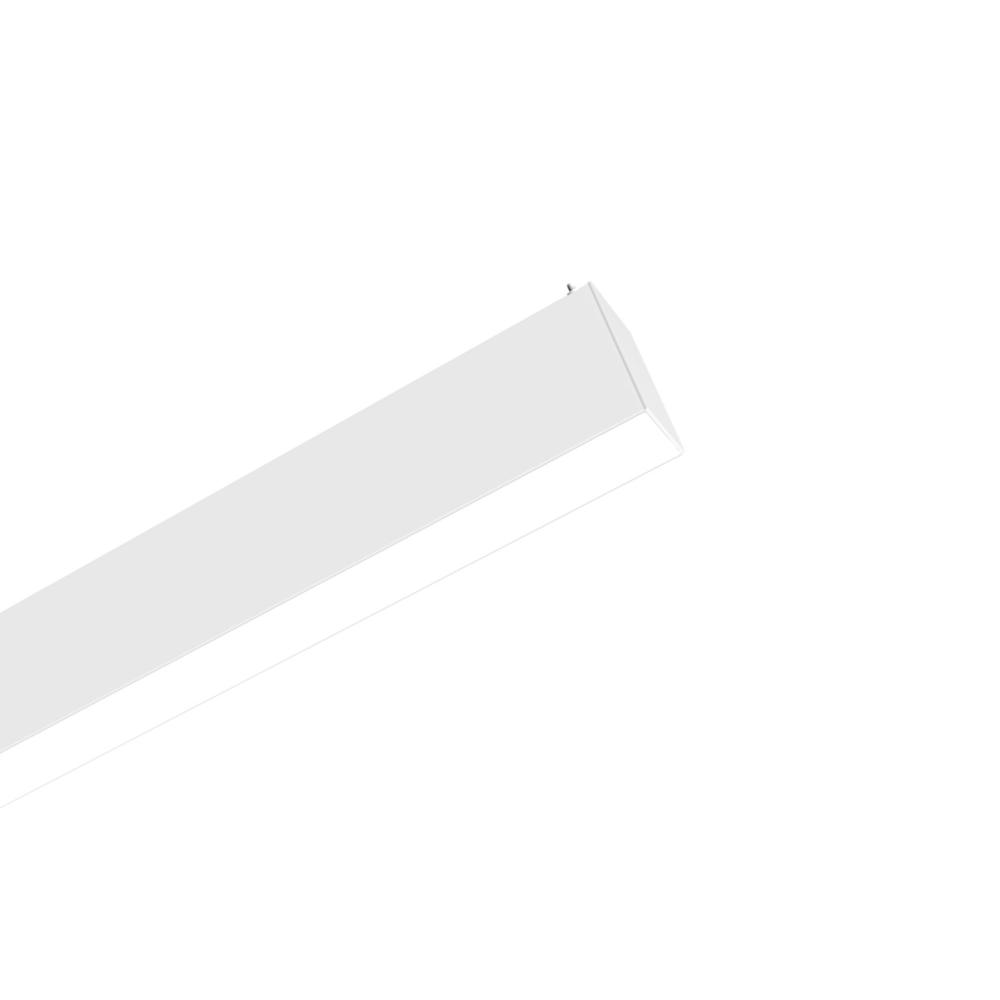

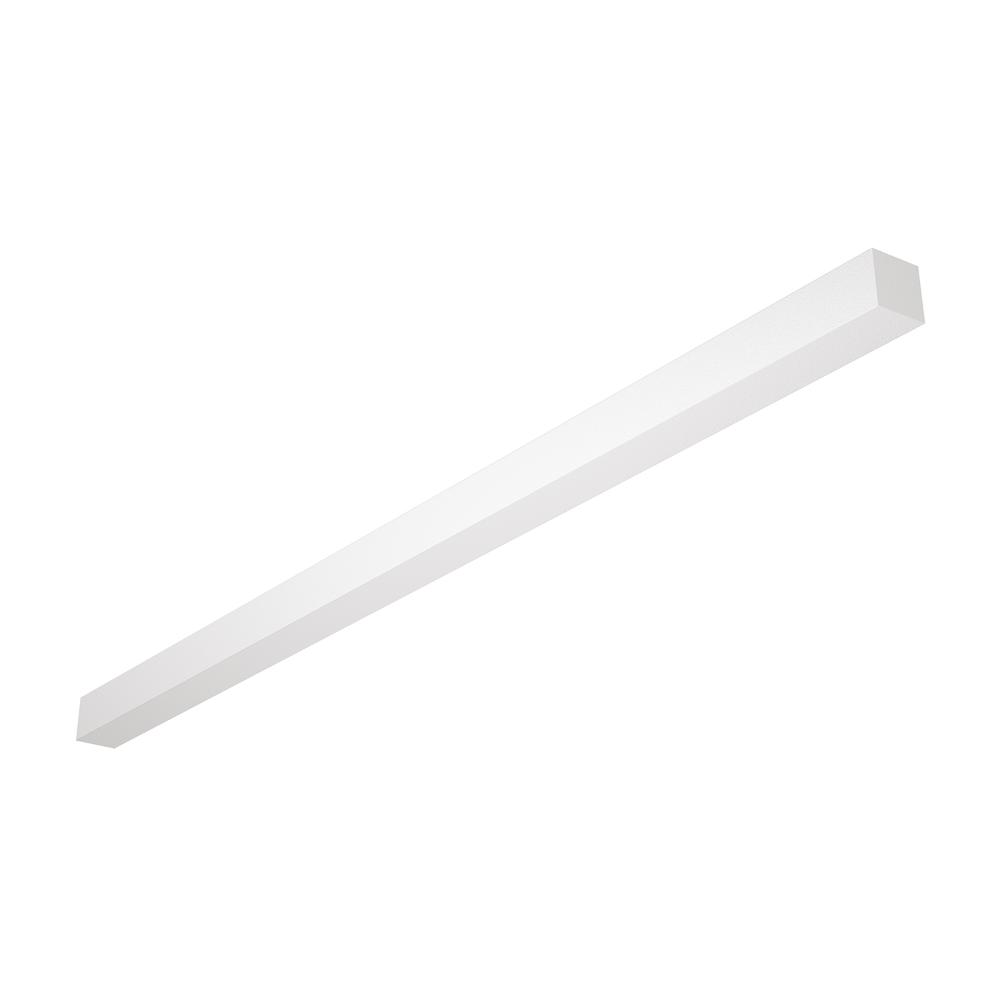

Amerlux Linea 2.5"
Expanding on our Linea Family of products, Linea 2.5" drives your design scenario, seamlessly. Streamlined and flexible, these architectural LED pendants provide the freedom to create truly dynamic spaces. A synthesis of aesthetics, performance and energy efficiency, the Linea family delivers on its promises. Linea 2.5" complements our Gruv 2.5" products.
Features & Benefits
- Wattage: I: 10W/ft max, D: 10W/ft max, DI: 20W/ft max
- Lumen Output: I: 1110/ft max, D: 1094/ft max, DI: 2204/ft max
- Color Temp (CCT): 2700K , 3000K , 3500K , 4000K , Tunable White
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| Direct/Indirect | 2.5" | N / N | 20W/ft max | 2204 lm/ft max |
| Direct | 2.5" | N / N | 10W/ft max | 1094 lm/ft max |
| Indirect | 2.5" | N / N | 10W/ft max | 1110 lm/ft max |

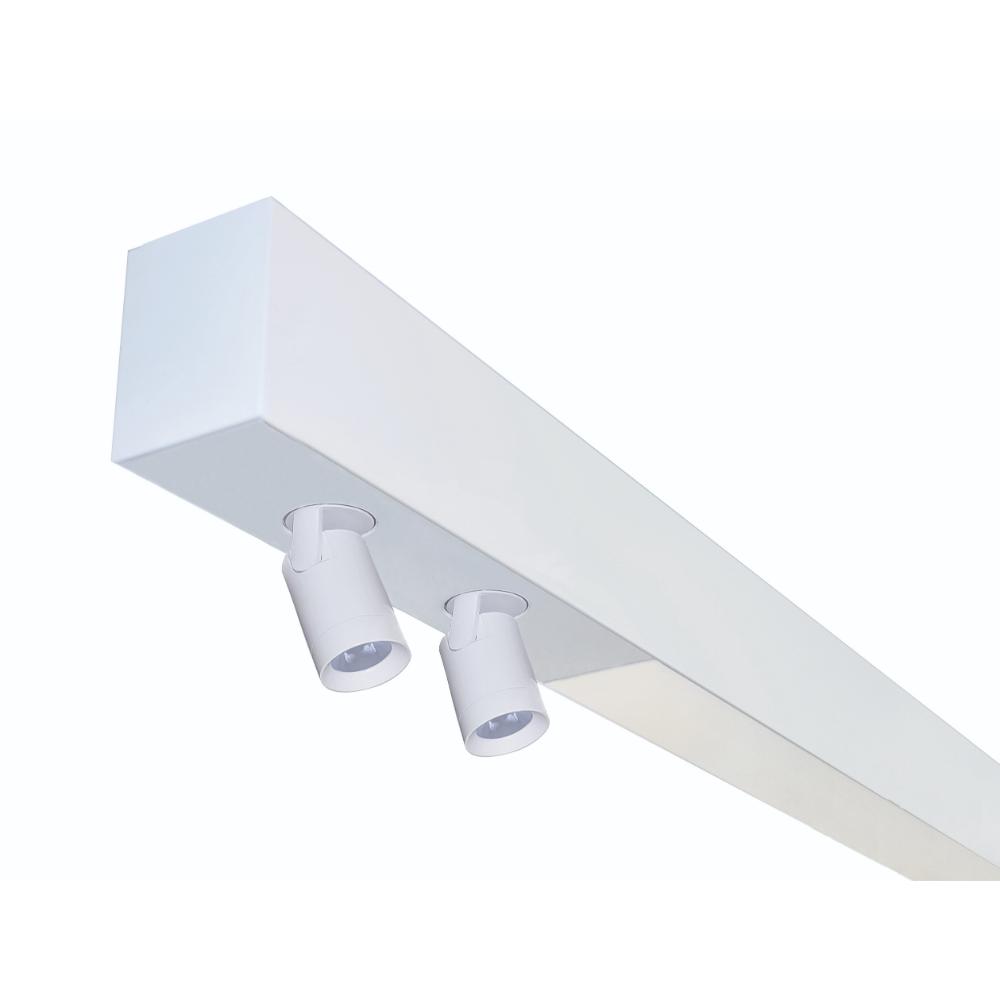

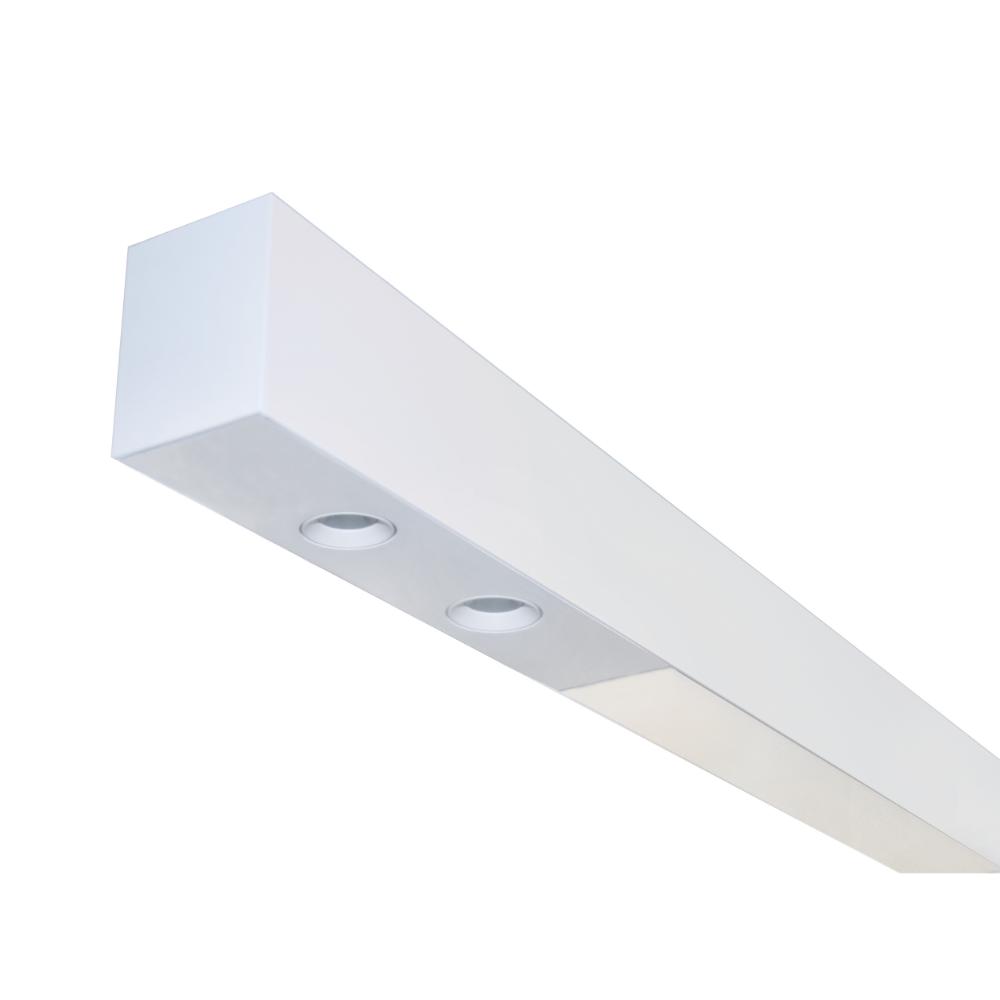

| Direct with Adjustable Accents | 2.5" | N / N | D: 10W/ft maxAccent: 7W | D: 968 lm/ft maxAccent: 451 max |
| Direct/Indirect with Adjustable Accents | 2.5" | N / N | DI: 20W/ft maxAccent: 7W | DI: 2075 lm/ft maxAccent: 451 max |
