Description

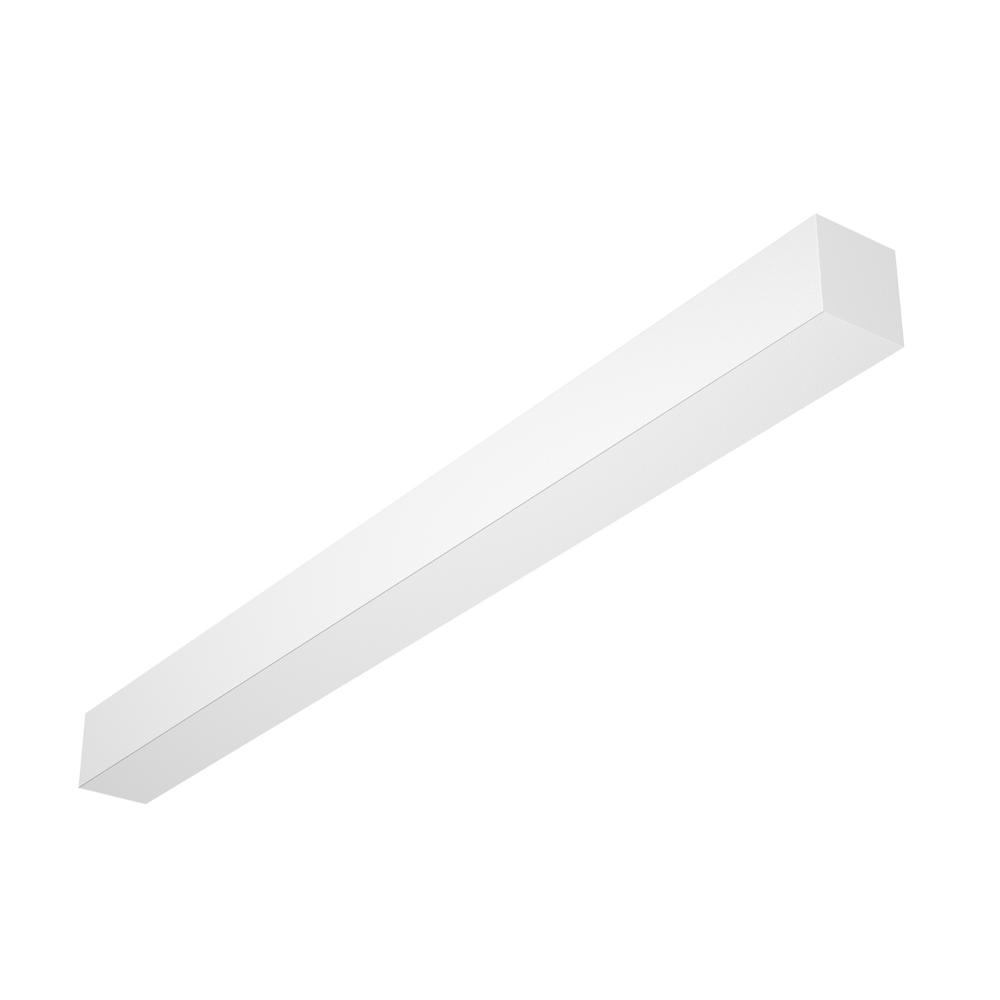

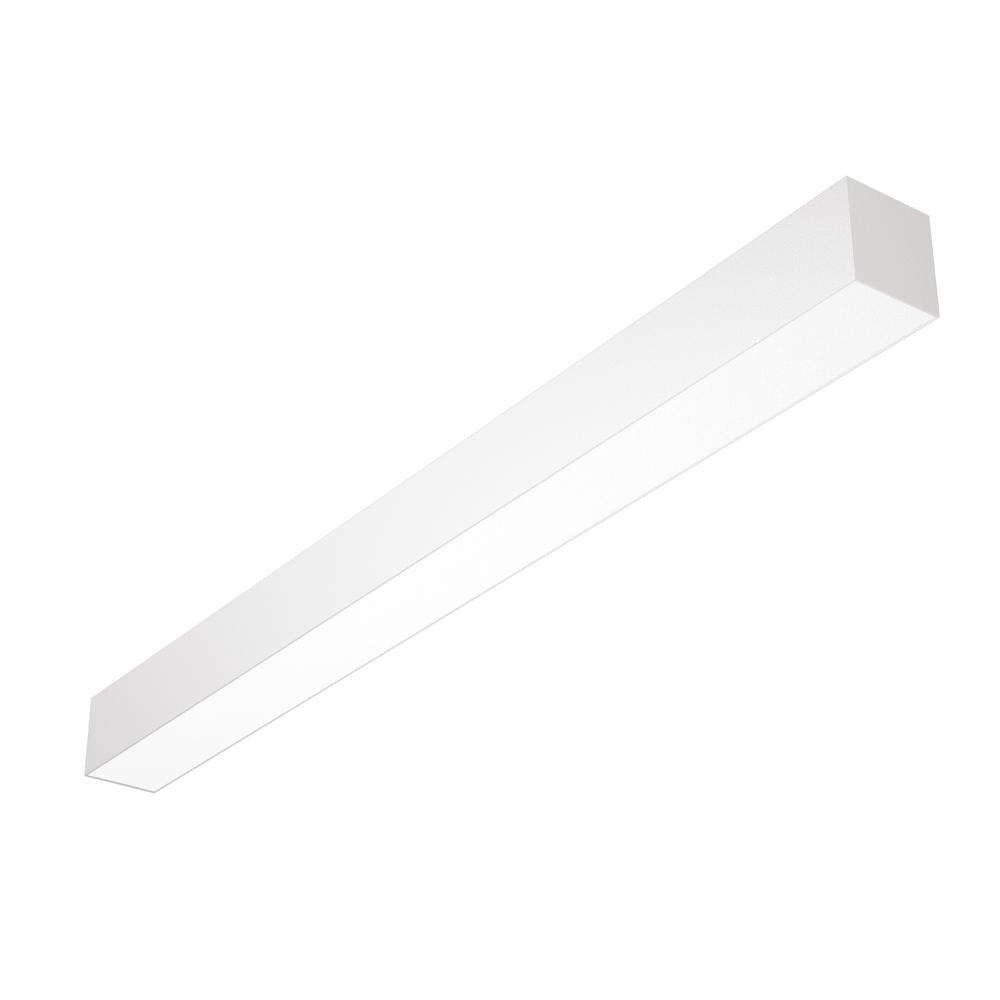

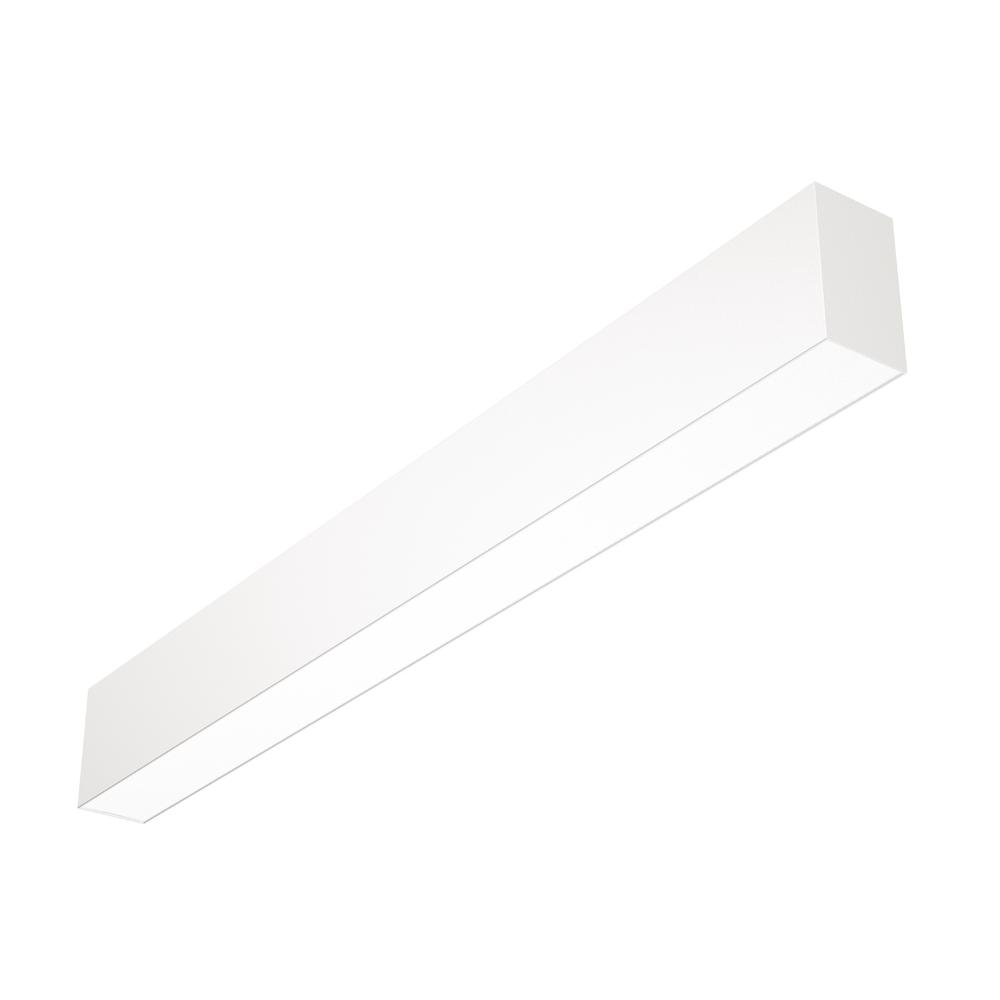

Amerlux Linea® 3.5"
An architecturally-styled pendant for commercial and retail environments and engineered around the latest energy efficient LED, the Linea® 3.5" direct delivers 73 lumens per watt with only 5 watts/foot. Its 3.5" rectilinear profile extruded construction, flexible configurations, clean lines and uncompromising performance make the LIN3.5 the perfect pendant to light any space.
Features & Benefits
- Wattage: I: 10W/ft max, D: 10W/ft max, DI: 20W/ft max
- Lumen Output: I: 1247/ft max, D: 1100/ft max, DI: 2348/ft max
- Color Temp (CCT): 2700K , 3000K , 3500K , 4000K , Tunable White
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| Direct/Indirect | 3.5" | N / N | 20W/ft max | I: 1247/ft max,D: 1100/ft max,DI: 2348/ft max |
| Direct | 3.5" | N / N | 10W/ft max | 1100 lm/ft max |
| Indirect | 3.5" | N / N | 10W/ft max | 1247 lm/ft max |
Product Files
Click for Linea 3.5" Direct/Indirect Spec Sheet
Click for LIN3.5DI Installation
Click for LIN3.5DI Wall Mount Installation
Click for Linea 3.5" Direct Spec Sheet
Click for LIN3.5D Installation
Click for LIN3.5D Surface Mount Installation
Click for LIN3.5D Wall Mount Installation
Click for Linea 3.5" Indirect Spec Sheet
