Description
Amerlux Passo RT 8" Luminaire
The Passo family of luminaires includes high quality, architecturally relevant fixtures suitable for use in both outdoor or indoor applications. All members of the Passo family feature an independently sealed optical chamber and fully potted driver. These features are especially beneficial in exterior applications as they help compensate for the challenges in getting a good seal between a pre-installed back box and the faceplate, as well as those challenges in fully sealing the conduit system. Each luminaire is available in a choice of two output levels to help tailor the desired illuminance to the project and a standard 0-10V dimmable driver allows even further flexibility.
Features & Benefits
- Wattage: 6 max
- Lumen Output: 278 max
- Color Temp (CCT): 2700K , 3000K , 4000K , Amber
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| PRCD8 Directional | - | N / N | 2, 3, 6 | 278 max |

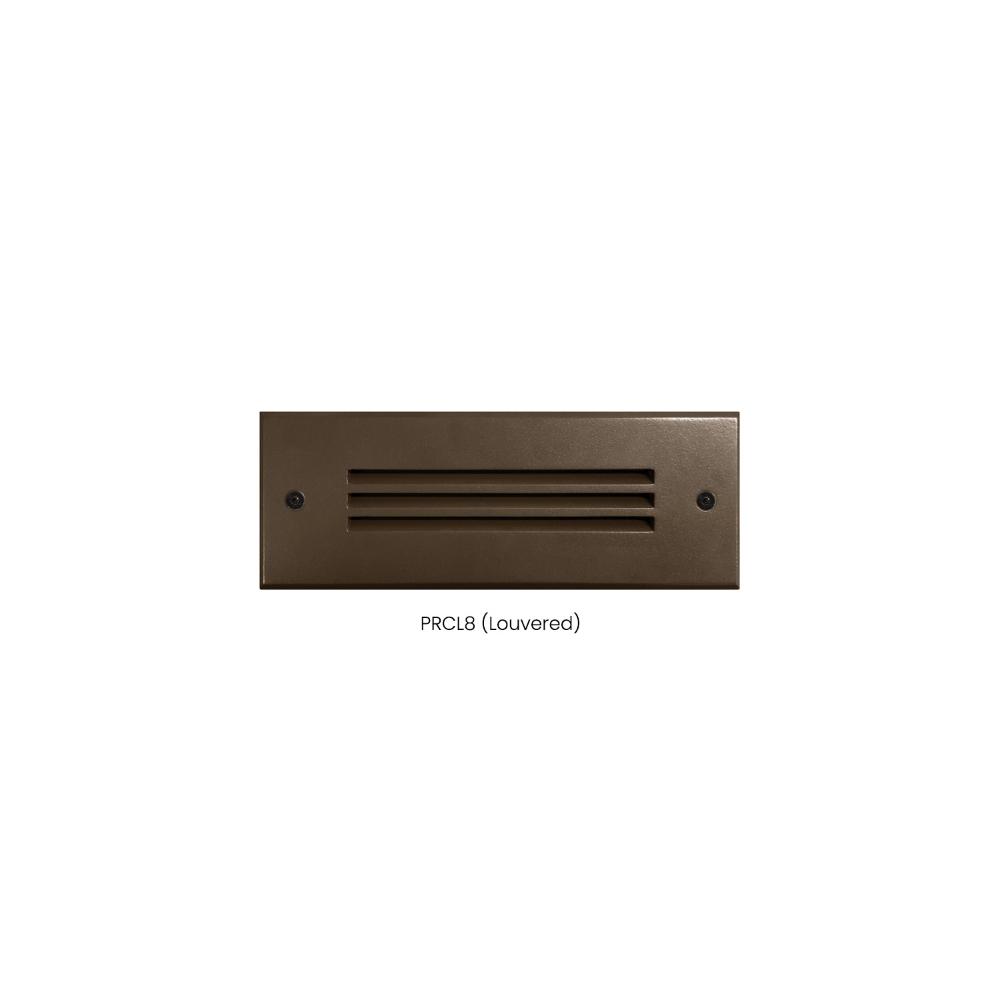

| PRCL8 Louvered | - | N / N | 2, 3, 6 | 74 max |

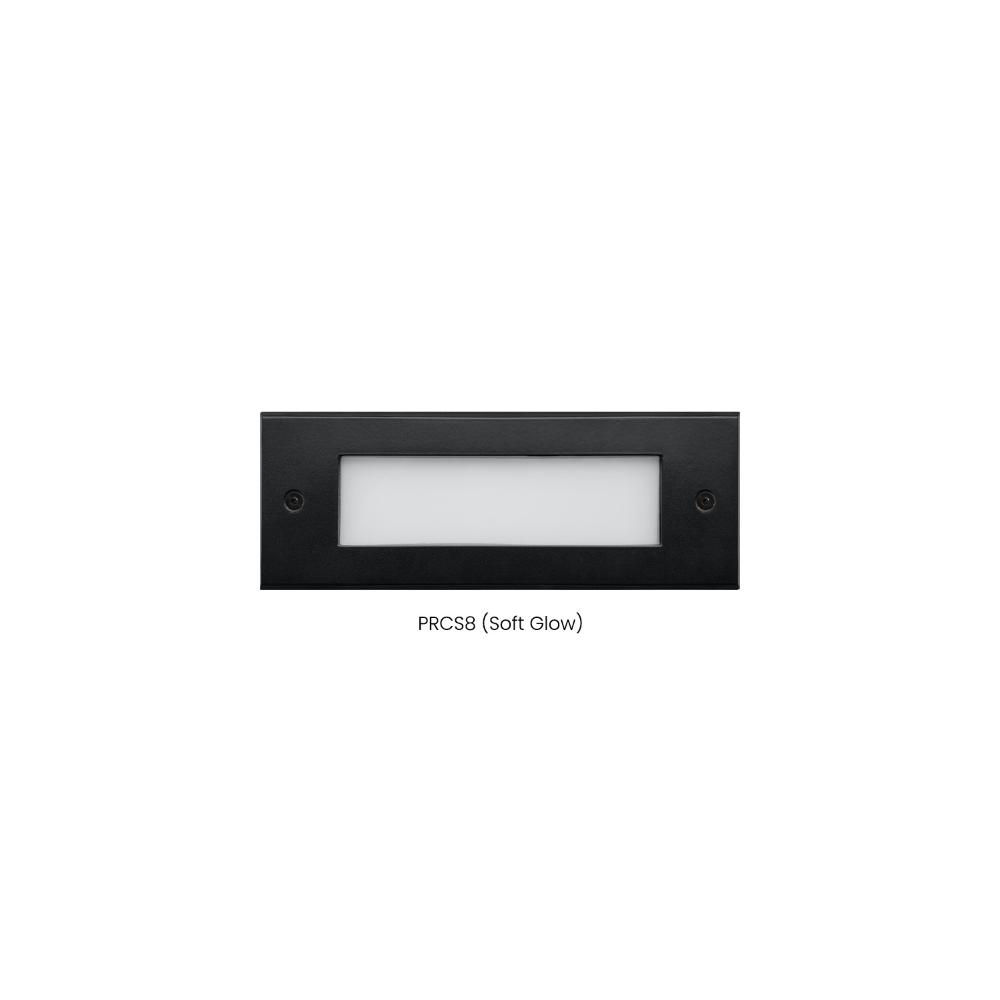

| PRCS8 Soft Glow | - | N / N | 2, 3, 6 | 207 max |
Product Files
Click for 8" Directional Steplight (PRCD8) Spec Sheet
Click for Rectangular Steplight Installation
