Description
Amerlux Passo SQ 4" Square Luminaire
The Passo family of luminaires includes high quality, architecturally relevant fixtures suitable for use in both outdoor or indoor applications. All members of the Passo family feature an independently sealed optical chamber and fully potted driver. These features are especially beneficial in exterior applications as they help compensate for the challenges in getting a good seal between a pre-installed back box and the faceplate as well as those challenges in fully sealing the conduit system Each luminaire is available in a choice of two output levels to help tailor the desired illuminance to the project and a standard 0-10V dimmable driver allows even further flexibility.
Features & Benefits
- Wattage: 5.4 max
- Lumen Output: 147 max
- Color Temp (CCT): 2700K , 3000K , 4000K , Amber
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| PSCD4 Directional | - | N / N | 1.5, 2.7, 5.4 | 94 max |
| PSCL4 Louvered | - | N / N | 1.5, 2.7, 5.4 | 28 max |

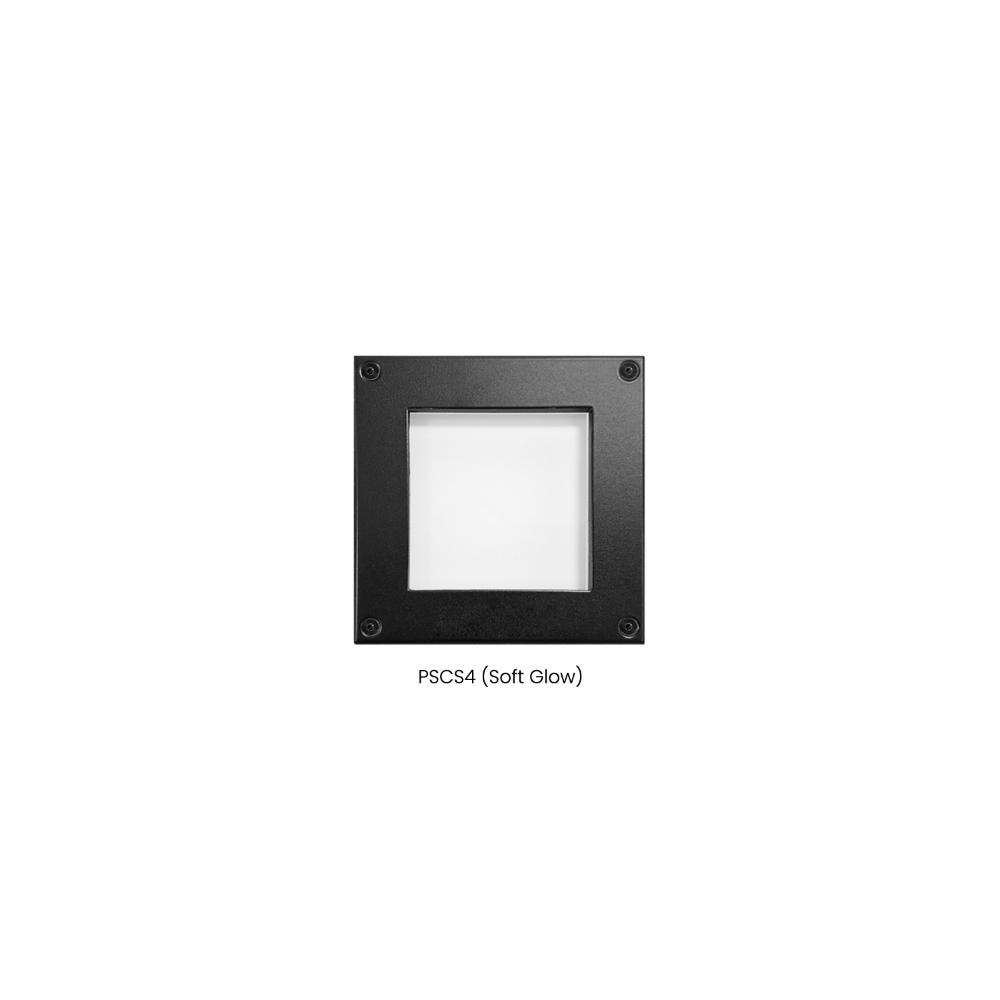

| PSCS4 Soft Glow | - | N / N | 1.5, 2.7, 5.4 | 147 max |
| PSCP4 Prismatic | - | N / N | 1.5, 2.7, 5.4 | 143 max |
Product Files
Click for 4" Sq Directional Recessed Wall (PSCD4) Spec Sheet
Click for Square Recessed Wall Installation
Click for 4" Sq Louvered Recessed Wall (PSCL4) Spec Sheet
Click for 4" Sq Soft Glow Recessed Wall (PSCS4) Spec Sheet
Click for 4" Sq Prismatic Glass Recessed Wall (PSCP4) Spec Sheet
