Description

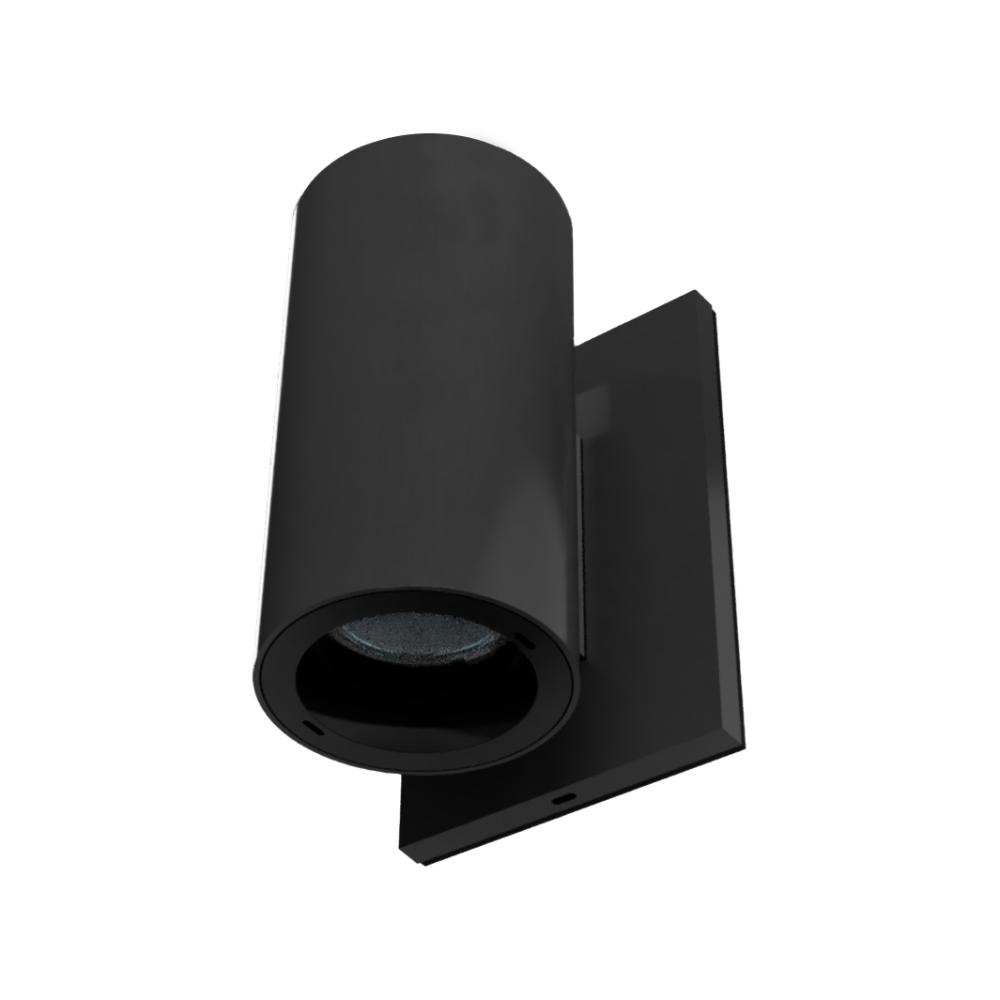

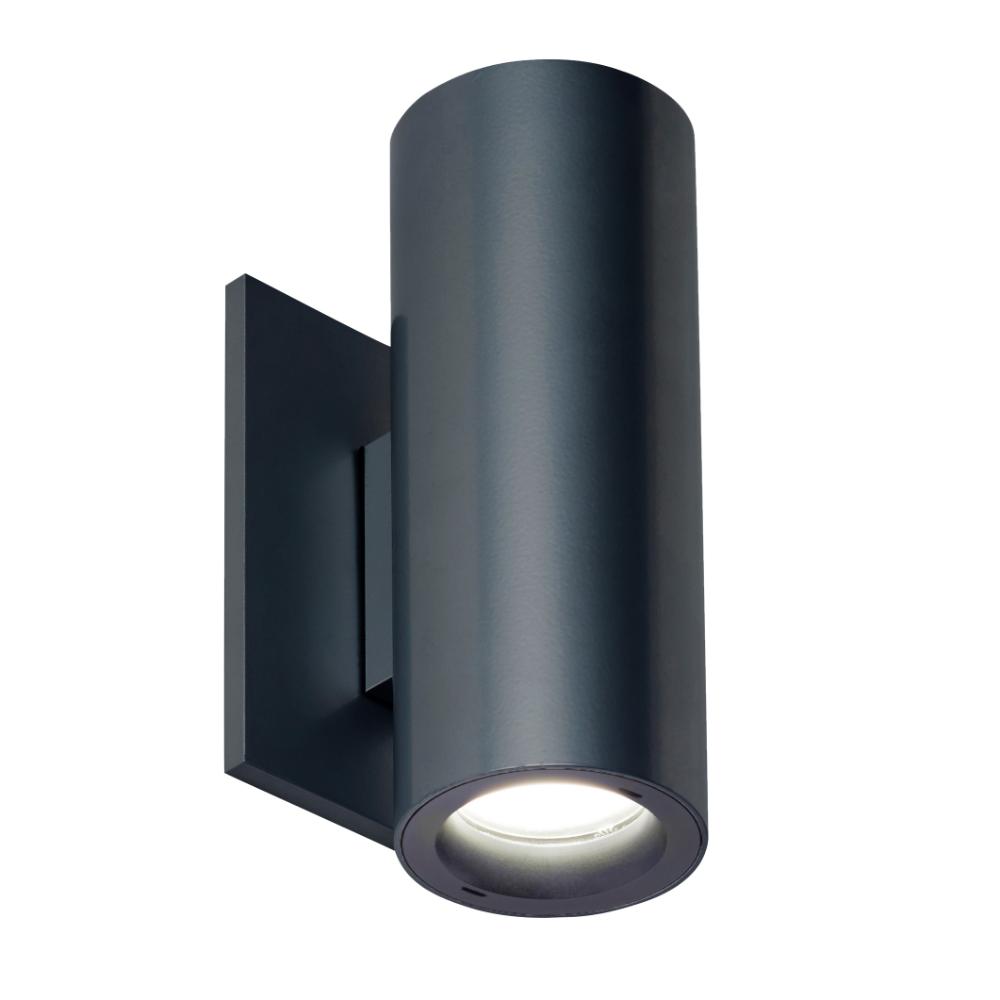

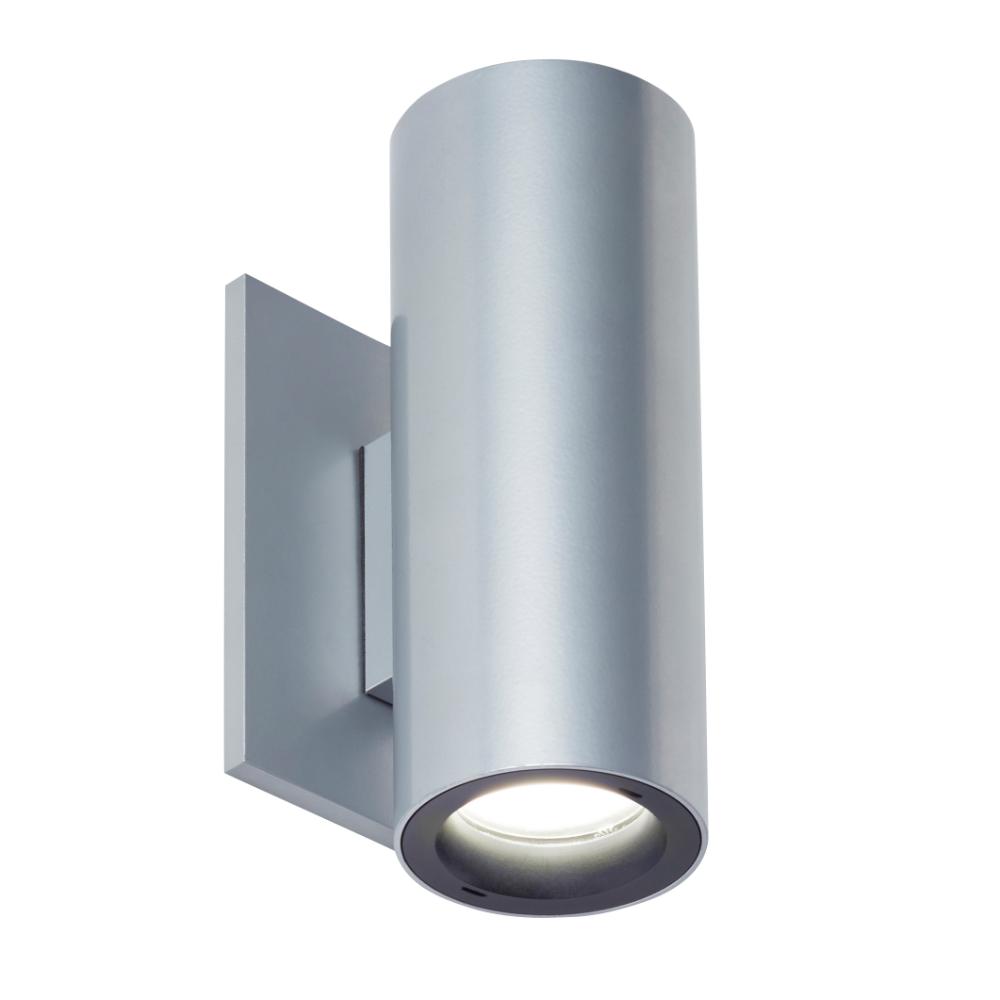

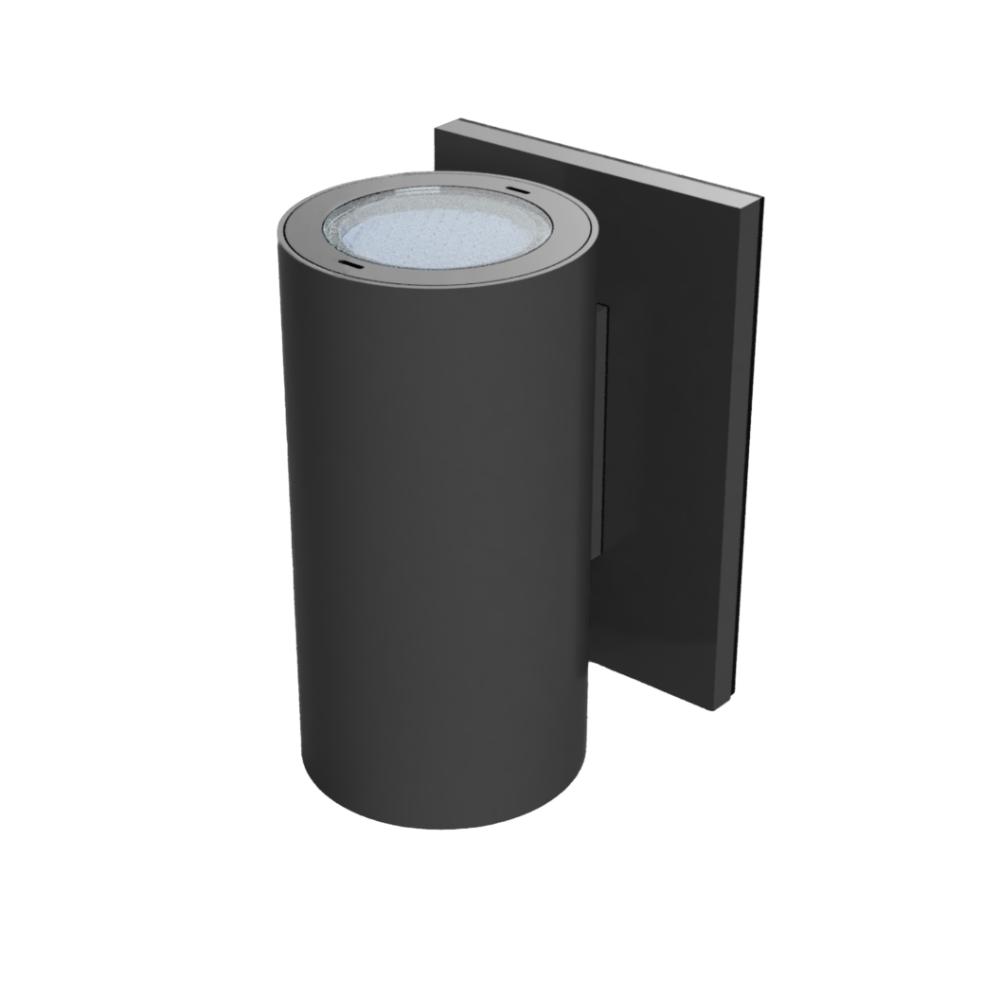

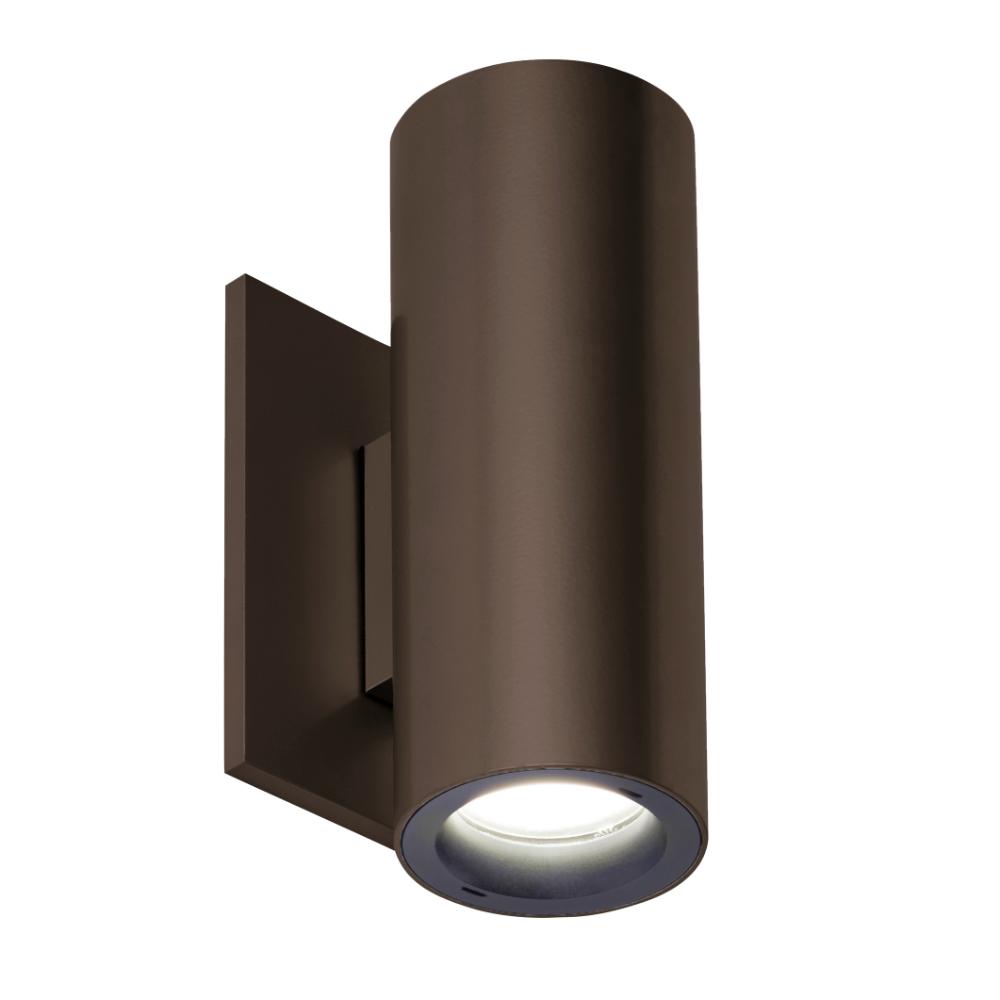

Amerlux Rook X Wall Cylinders
The Rook X family of small scale architectural exterior cylinders includes wall mounted fixtures in either a dual output (Up/Down) light, or a single (Up or Down) configurations. An integral driver and a smooth, seamlessbody allow the fixture to fit in a wide variety of commercial, hospitality, retail and high end residential applications both Indoor or Outdoor in Wet Locations. Various optical accessories, beam shaping films or a hexcell louver can be changed or added in the field.
Features & Benefits
- Wattage: 25 max
- Lumen Output: 2150 max
- Color Temp (CCT): 2700K , 3000K , 3500K , 4000K
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| RKX-UD - Up/Down Light | 2" | N / N | 25 | 2150 max |
| RKX-UW - Up Light Only | 2" | N / N | 12 | 1096 max |
| RKX-DW - Down Light Only | 2" | N / N | 12 | 1054 max |
Product Files
Click for Rook X Wall Mounted Up-Down Light Spec Sheet
Click for Rook X Wall Mount Cylinder Up Light Spec Sheet
