Description
Amerlux Slots & Dots Track Head

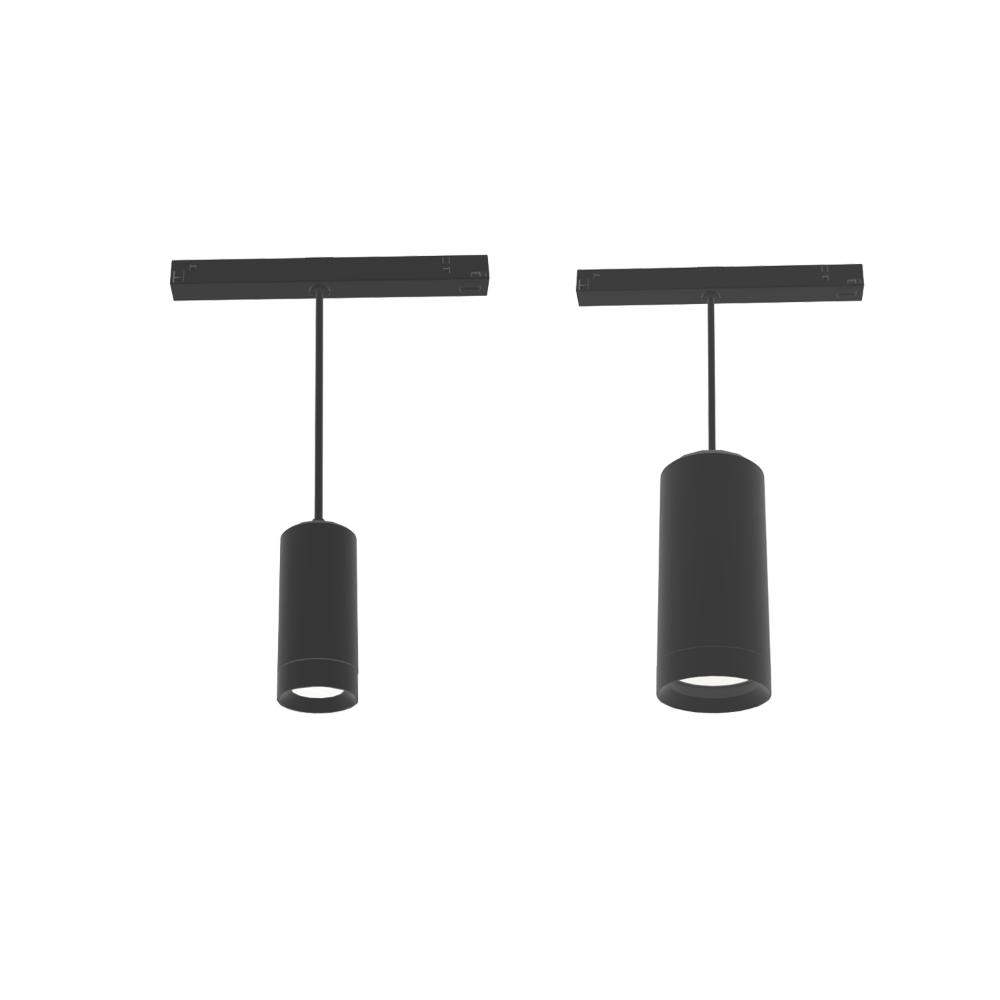

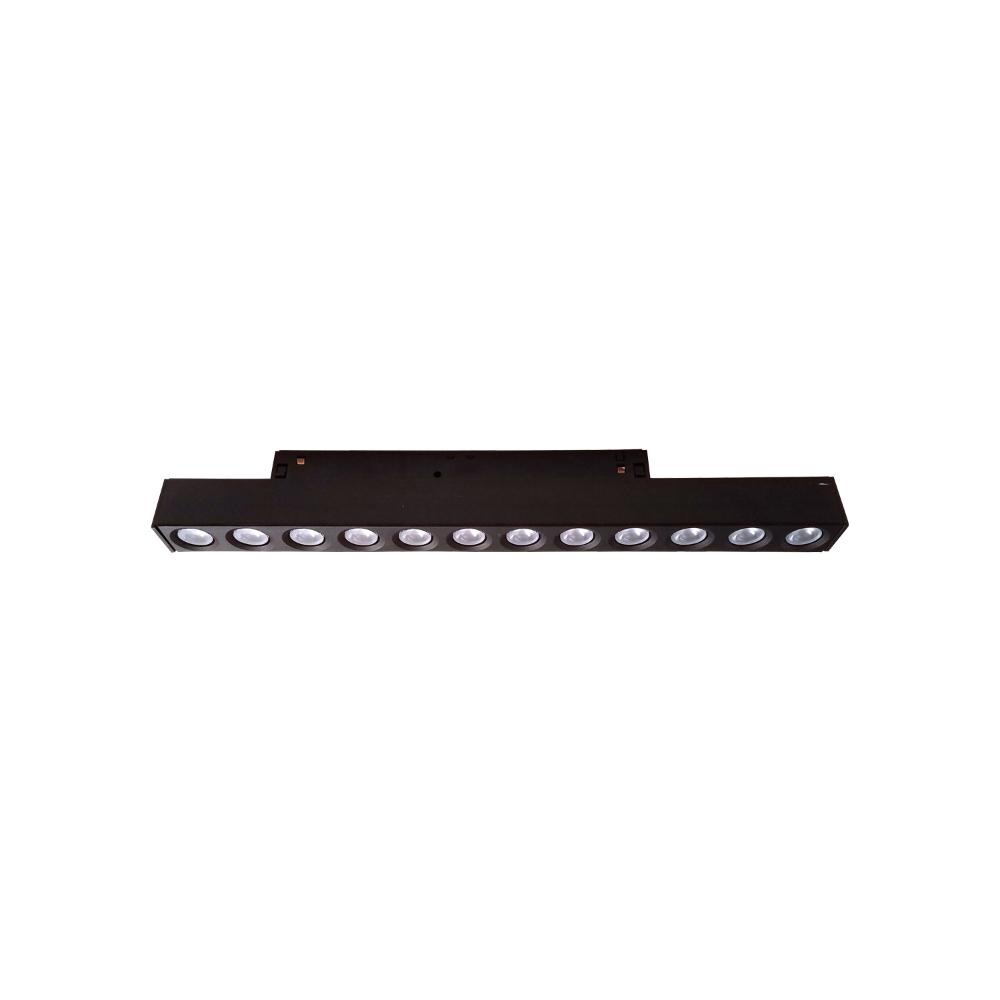

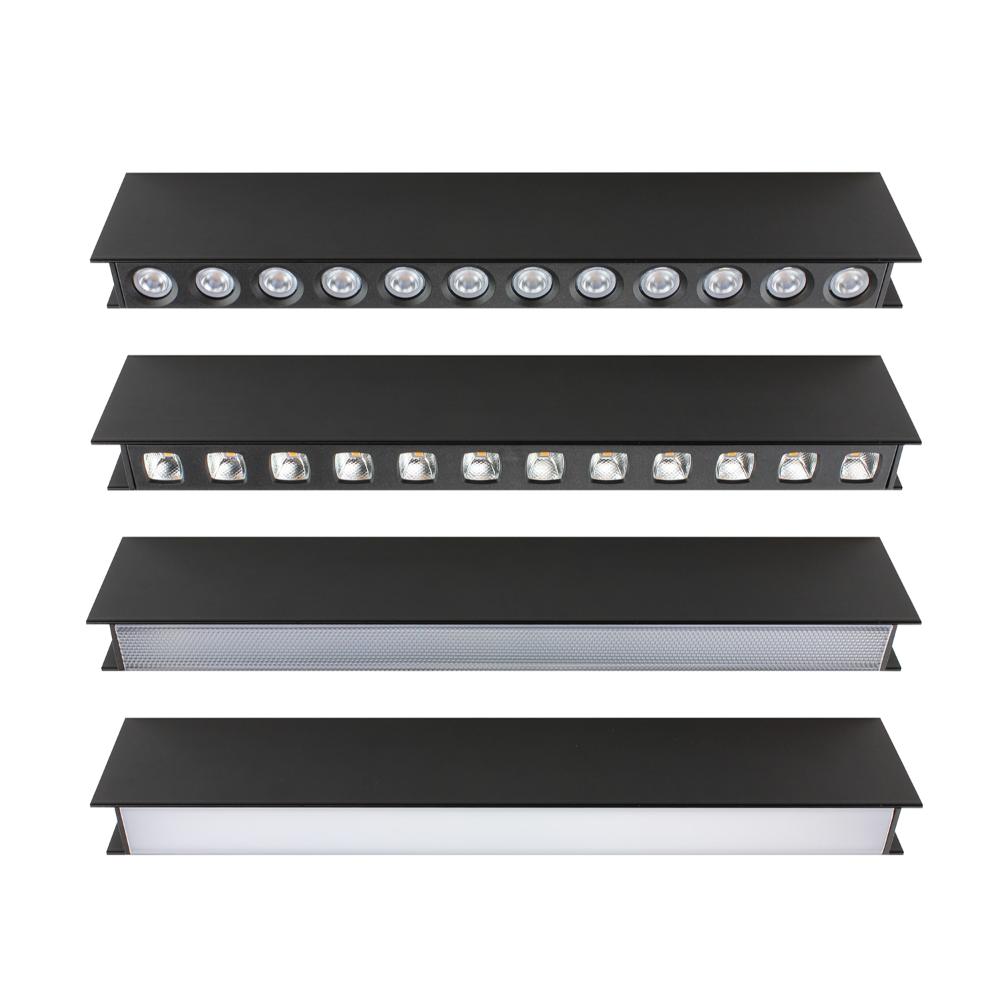

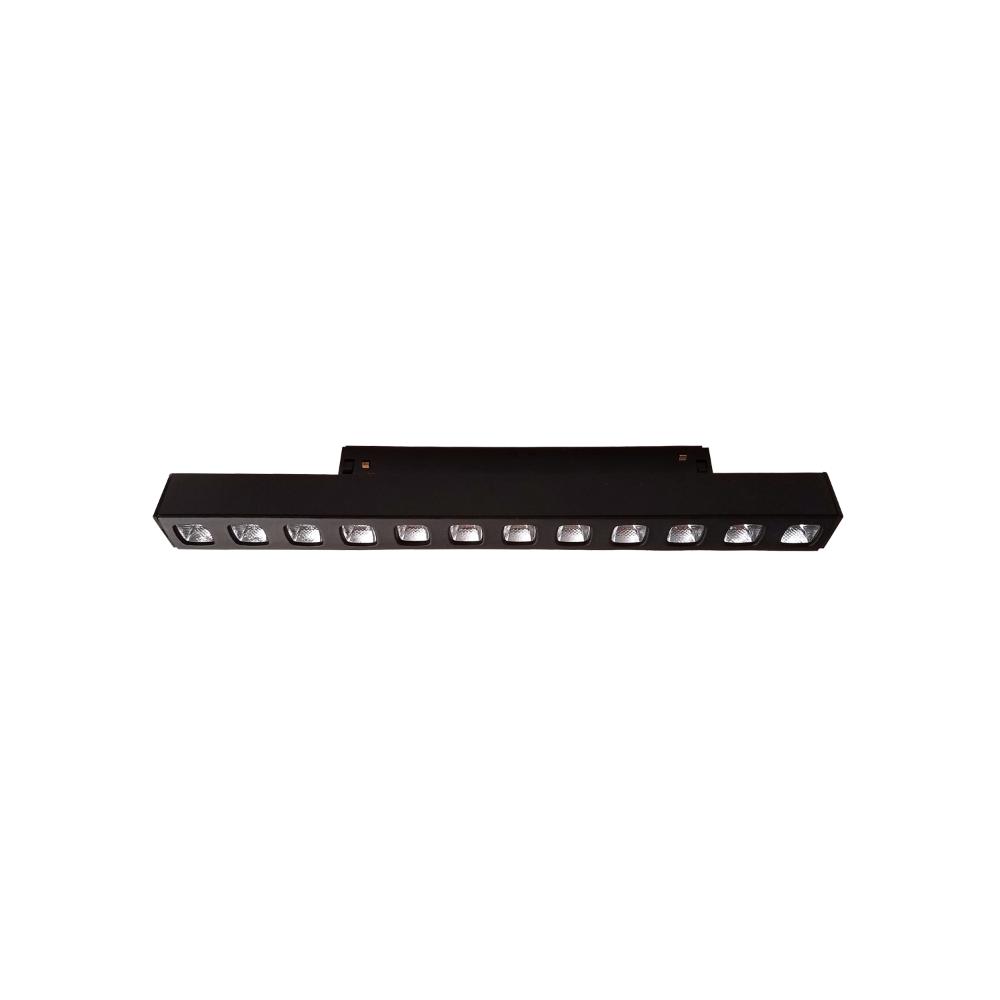

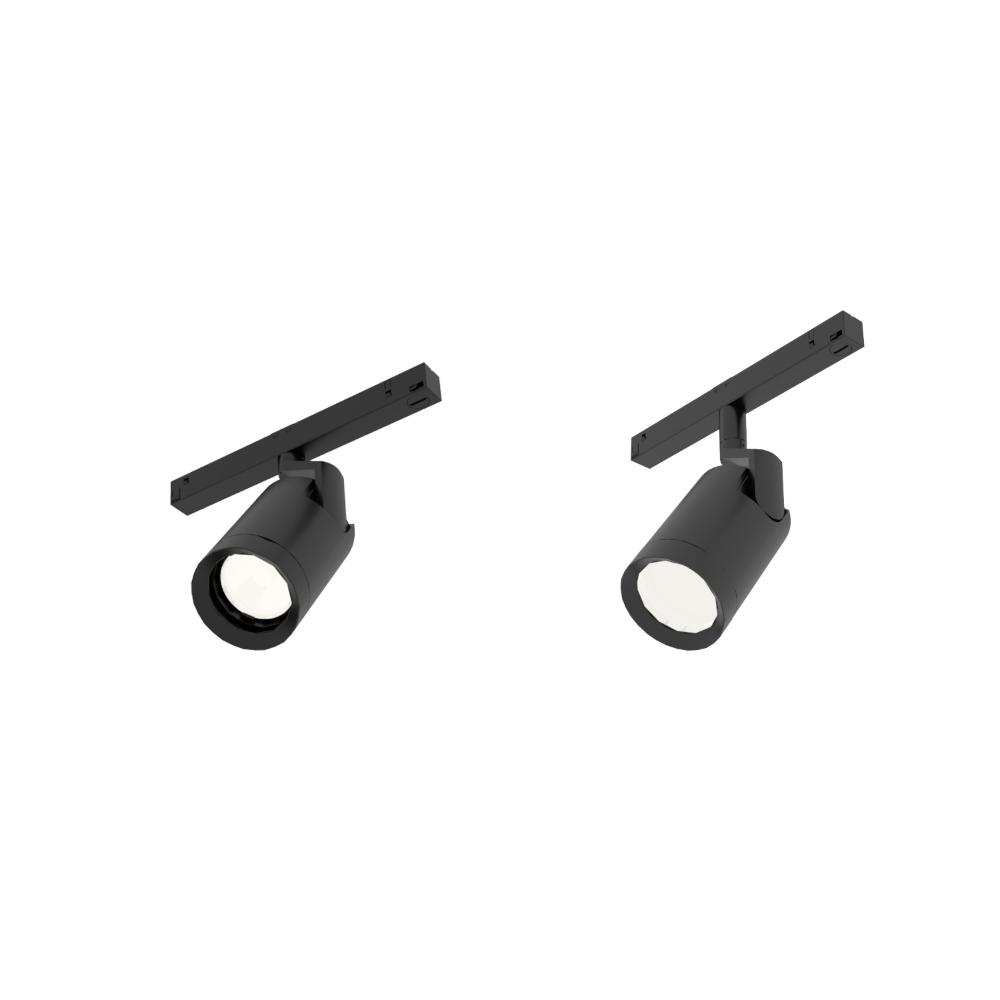

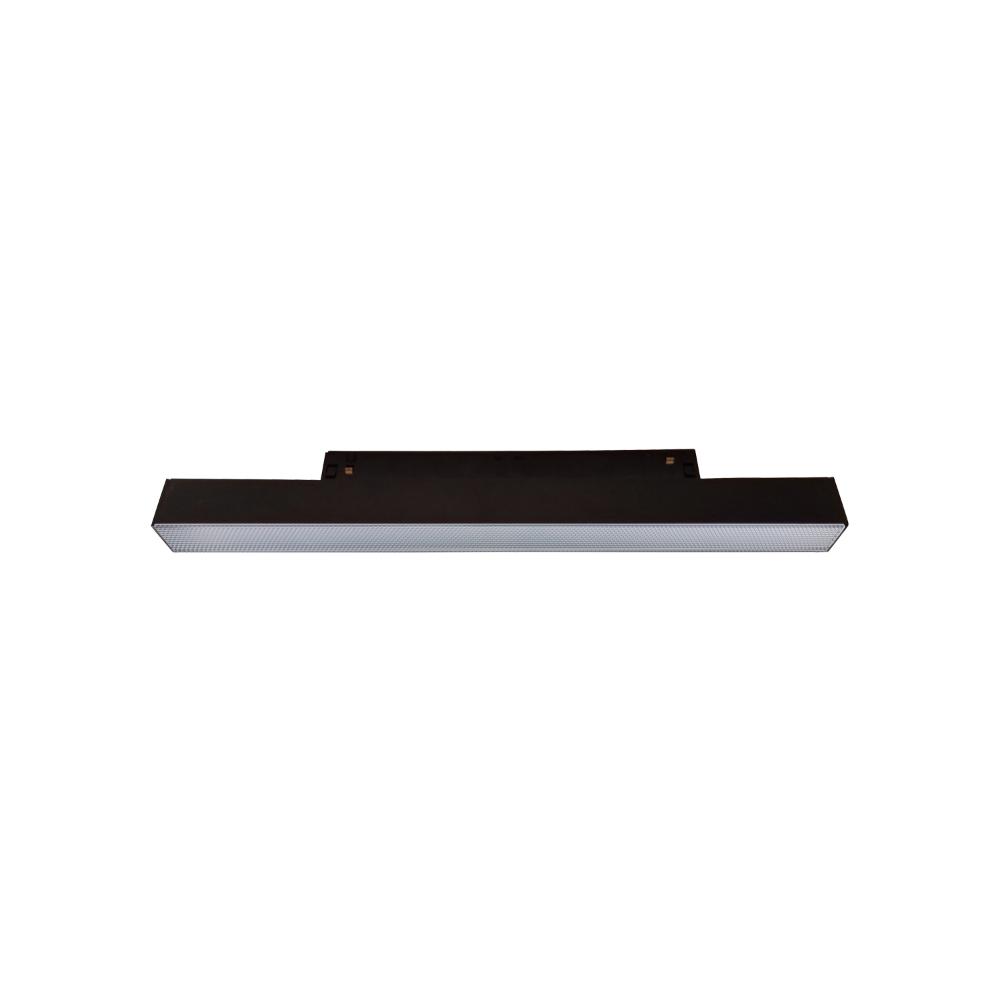

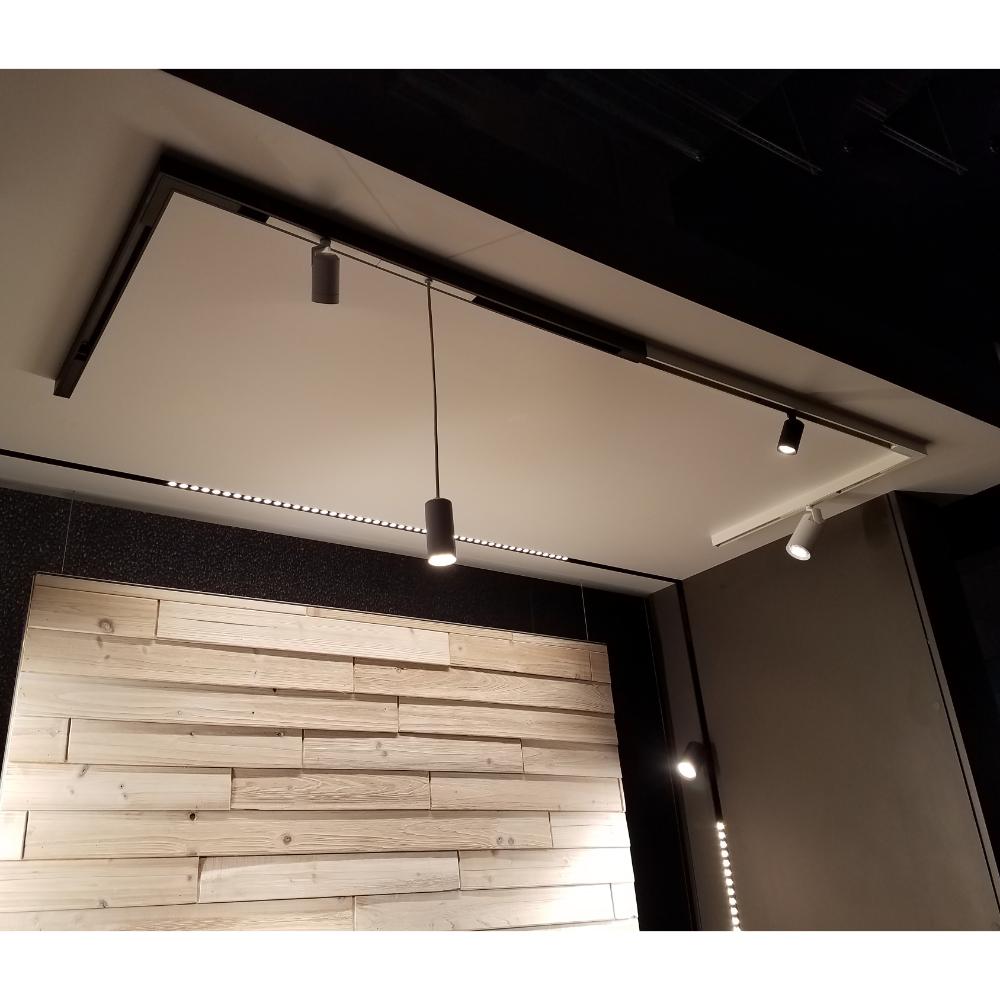

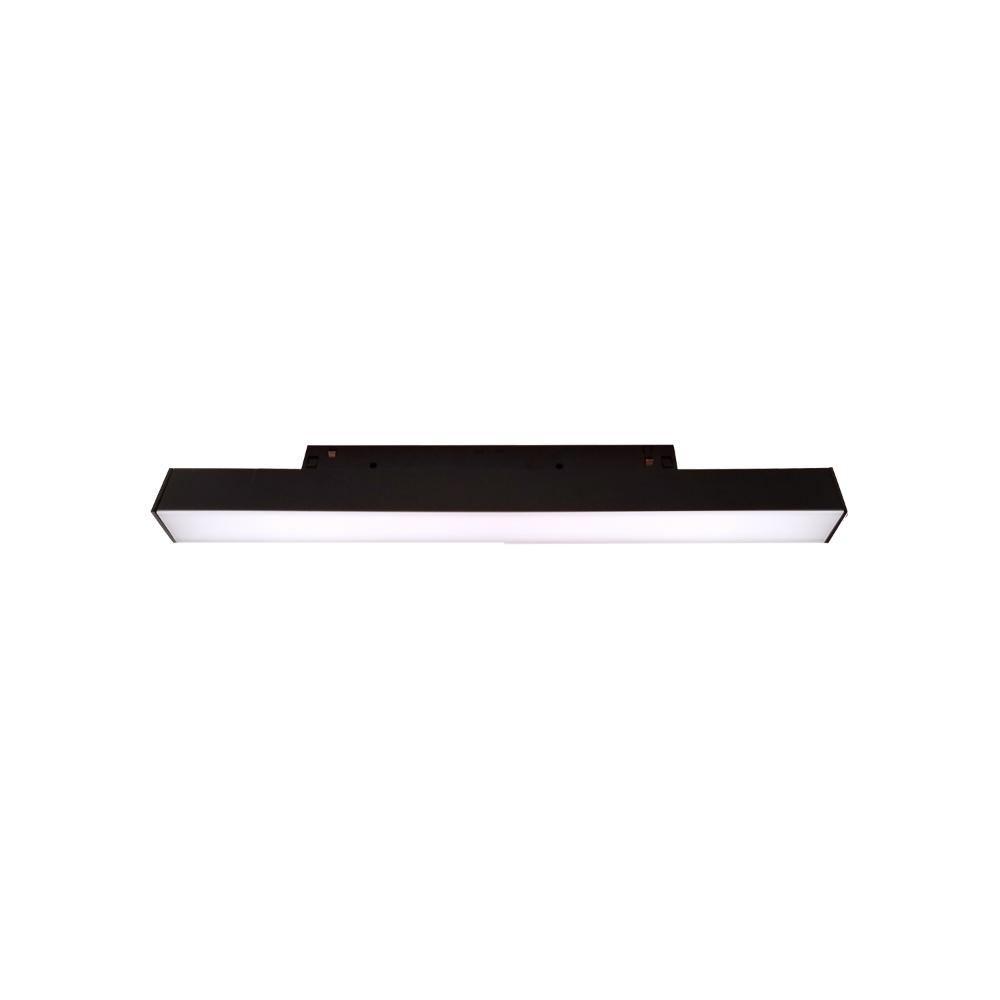

Slots & Dots is an easily configurable low voltage track lighting system that creates visual ambience for hospitality, residential, commercial and retail environments. Featuring surface, recessed or pendant mounting options, with magnetic lighting modules so light sources can be easily snapped in and out as needed. Slots are made up of linear modules to create visual interest, wall grazing and glare free accent. Dots deliver focused beams of light from either an accent, pendant or surface mounted accent that bring items into focus.
Features & Benefits
- Wattage: SLOTS: 6W/ft, DOTS: 22W max
- Lumen Output: 2200 max
- Color Temp (CCT): 2700K , 3000K , 3500K , 4000K , Class A (Full Gamut) , Crisp White (Full Gamut)
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| SD-TSDDeep Profile Pendant/Surface Track | - | N / N | - | - |
| SD-TRDDeep Profile Recessed Track | - | Y / N | - | - |
| SD-TSLLow Profile Pendant/Surface Track | - | N / N | - | - |
| SD-TRLLow Profile Recessed Track | - | N / N | - | - |
| SLOTSLinear Accent Light Modules | - | N / N | 6W/ft | 527 lm/ft max |
| DOTSAccent Light Modules | - | N / N | 7, 8, 10, 12, 16, 22 | 2200 max |
Product Files
Click for SD-TSD Deep Profile Pendant/Surface Track Spec Sheet
Click for Slots & Dots Track Cutting and Wiring Install Sheet
Click for SD-TRD Deep Profile Recessed Track Spec Sheet
Click for SD-TSL Low Profile Pendant/Surface Track Spec Sheet
Click for SD-TRL Low Profile Recessed Track Spec Sheet
Click for SLOTS Linear Accent Light Modules Spec Sheet
Click for DOTS Accent Light Modules Spec Sheet
Click for Slots & Dots Pendant Cord Length Adjustment Install Sheet
