Description
Amerlux Solace 3" Shallow Round Downlight
Solace 3" Downlights are the complete downlight family for any ceiling surface and low plenum ceiling. Round or Square apertures, available as downlight, adjustable or wallwash. Optional Solite lensing provides whisper quiet aesthetics. The trim options available as trimmed, trimless or millwork. The pinhole and shower pinhole trim makes this a complete downlight to design the entire space with the same look.
Features & Benefits
- Wattage: 17 max
- Lumen Output: 1623 max
- Candle Beam Center Power (CBCP): 9820 max
- Color Temp (CCT): 2700K , 3000K , 3500K , 4000K , Class A (Full Gamut) , Crisp White (Full Gamut)
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |

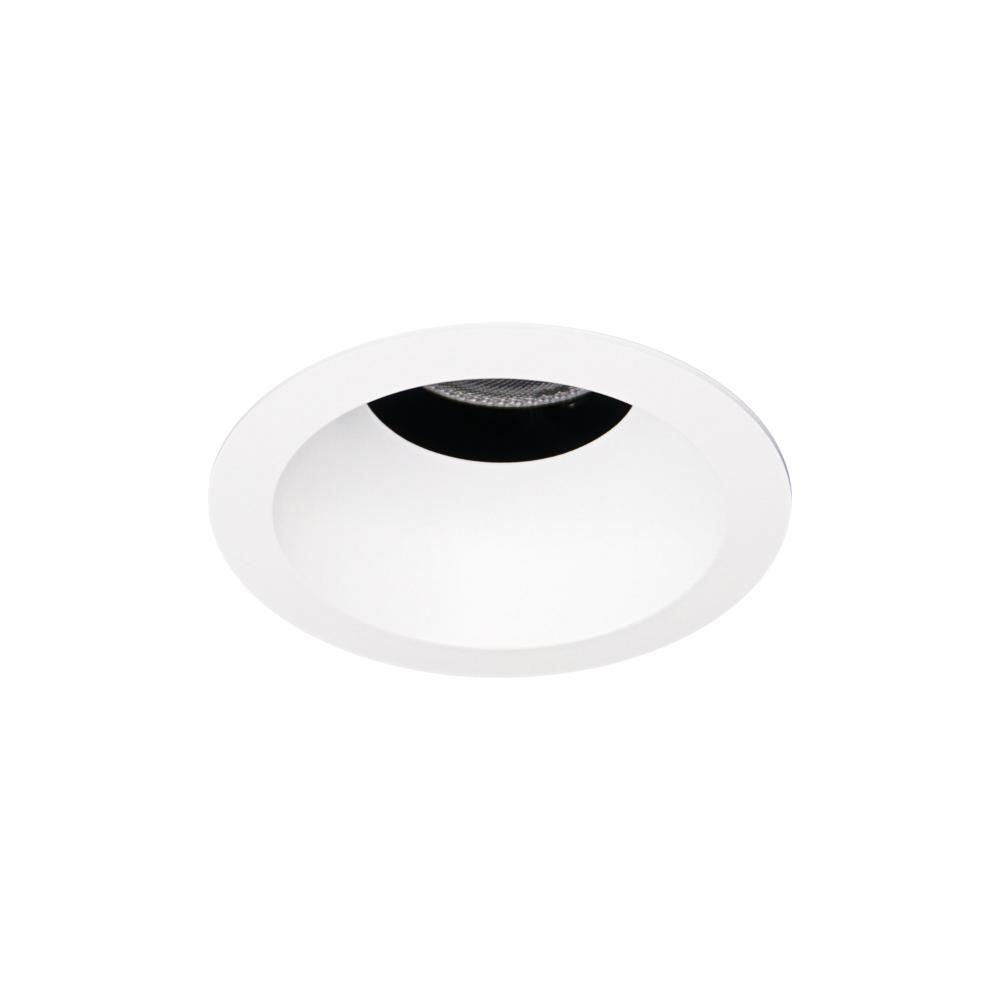

| Downlight | 3" | Y / Y | 8, 12, 17 | 1623 max |

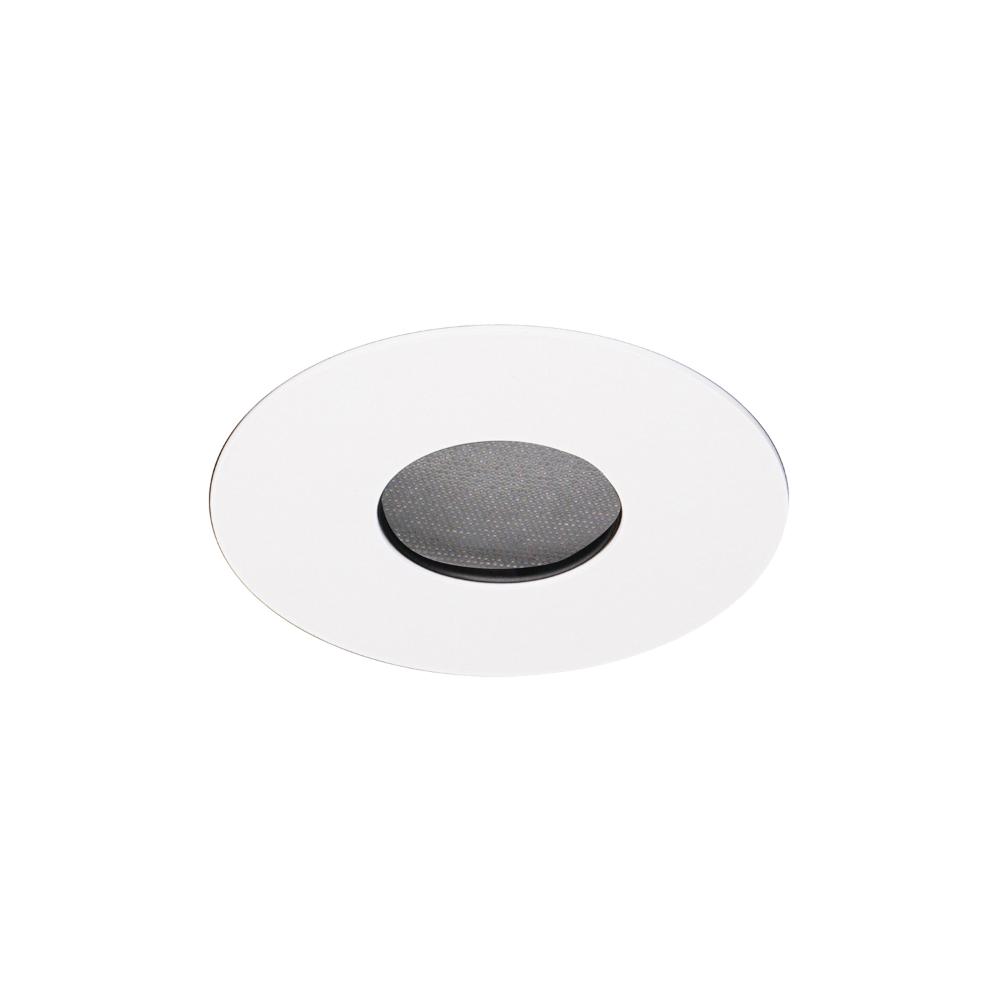

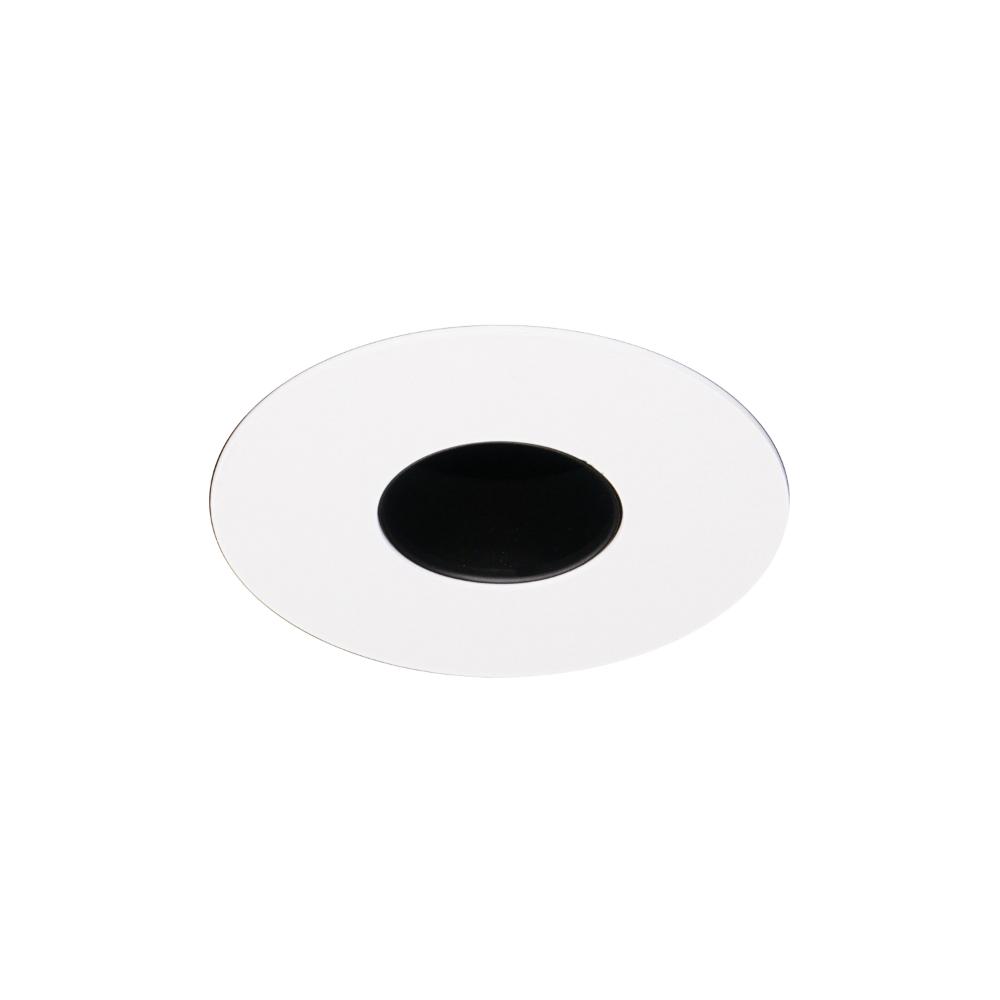

| Pinhole Downlight/Shower | 3" | Y / Y | 8, 12, 17 | 617 max |

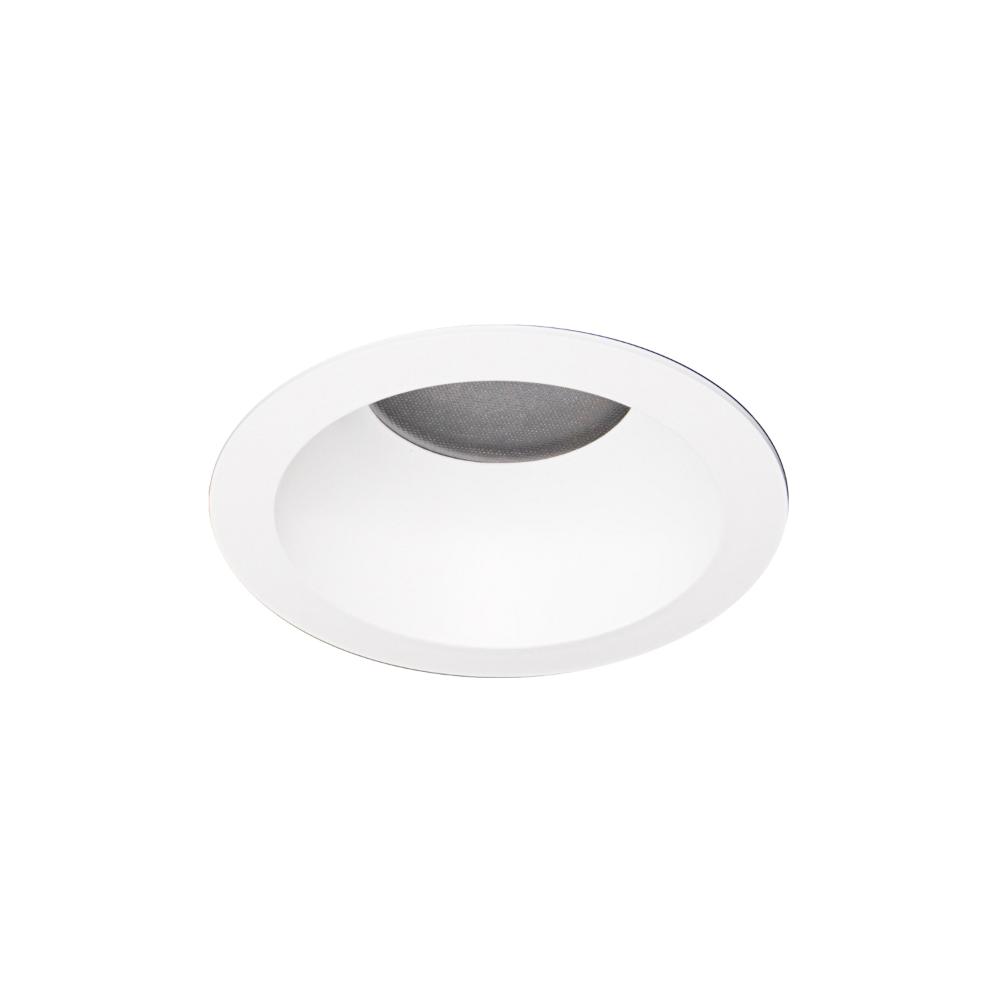

| Adjustable | 3" | Y / Y | 8,12,17 | 1593 max |
| Pinhole Adjustable/Shower | 3" | Y / Y | 8, 12, 17 | 620 max |

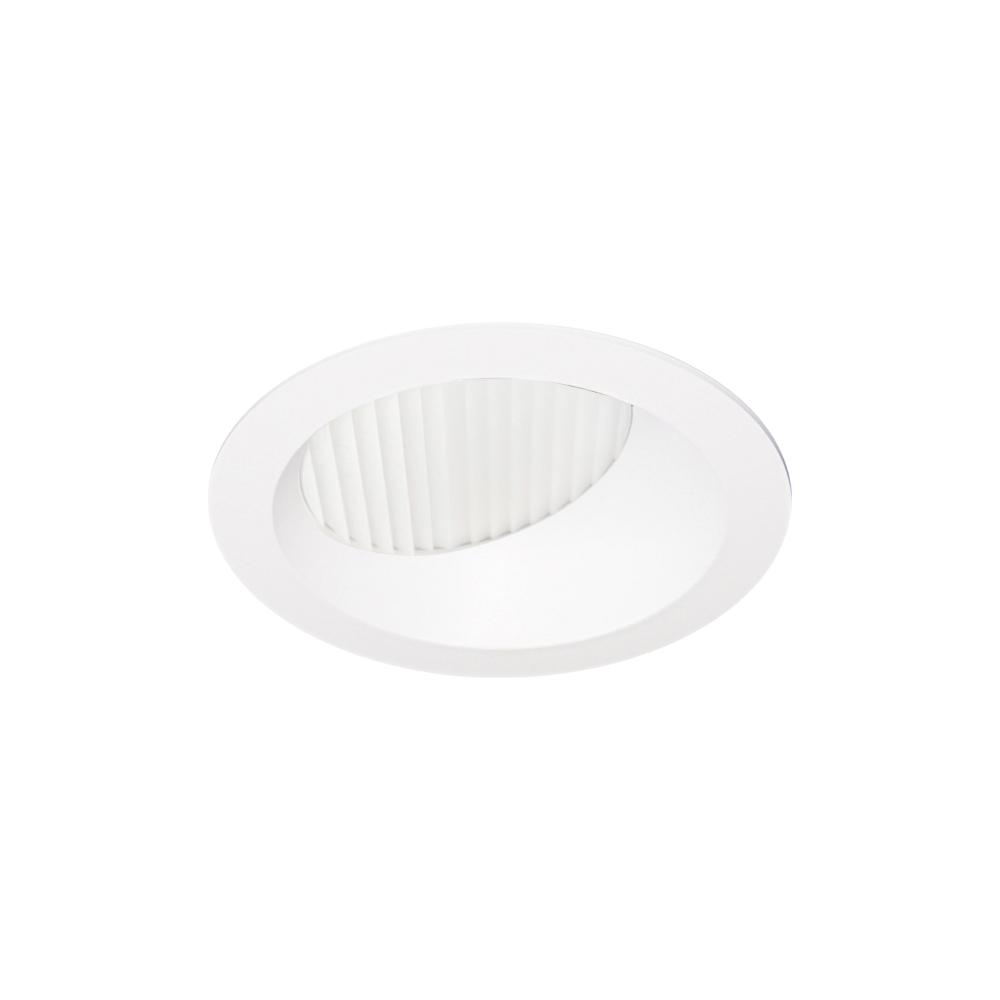

| Wall Wash | 3" | Y / Y | 8, 12, 17 | 1066 max |
Product Files
Click for Solace Round Downlights Spec Sheet
Click for Solace RD/SD Installation
Click for Solace RD/SD Millwork Installation
Click for TIR Lens/Beam Replacement Install Sheet
Click for LED Driver Replacement Install Sheet
Click for Solace Round Pinhole Downlight Spec Sheet
Click for Solace RPD/SPD Installation
Click for Solace RPD/SPD Millwork Installation
Click for Solace Round Adjustables Spec Sheet
Click for Solace RA/SA Installation
Click for Solace RA/SA Millwork Installation
Click for Solace Round Pinhole Adjustable Spec Sheet
Click for Solace RPA/SPA Installation
Click for Solace RPA/SPA Millwork Installation
Click for Solace Round Lens Wall Wash Spec Sheet
Click for Solace RLW/SLW Installation
