Description

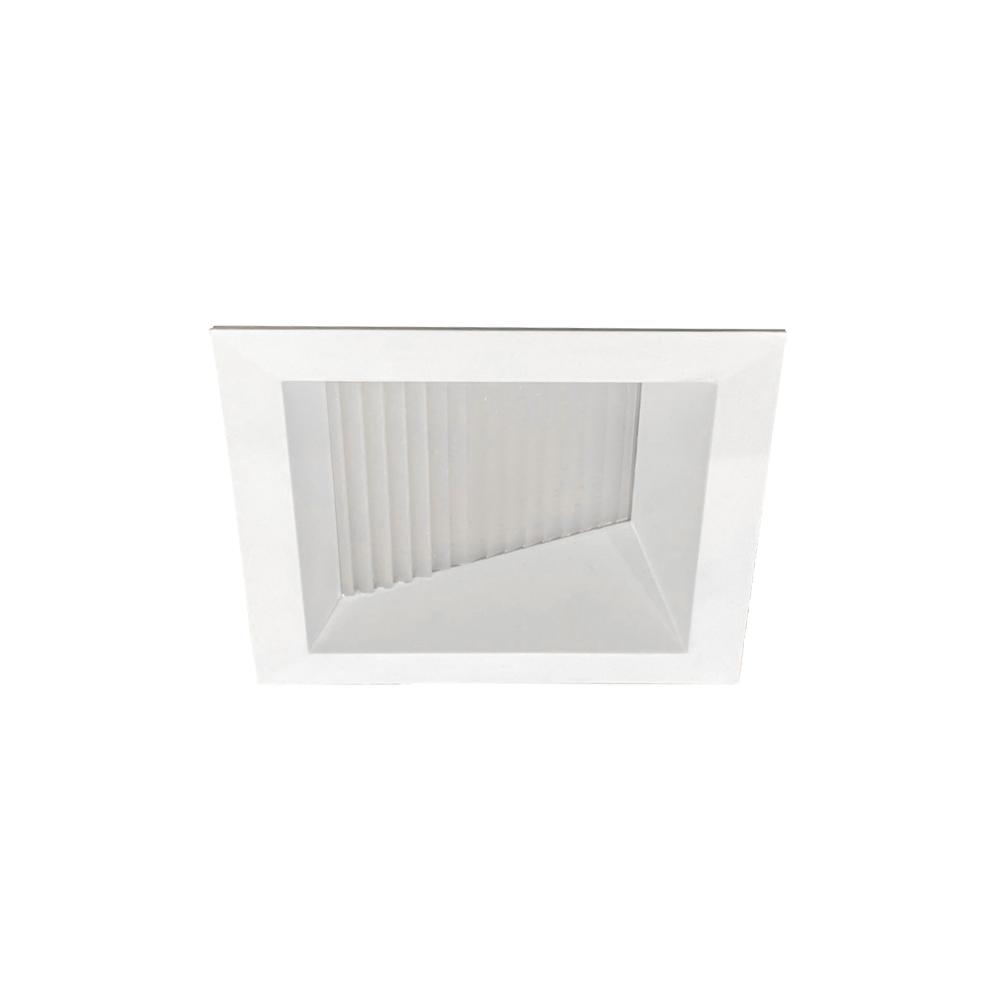

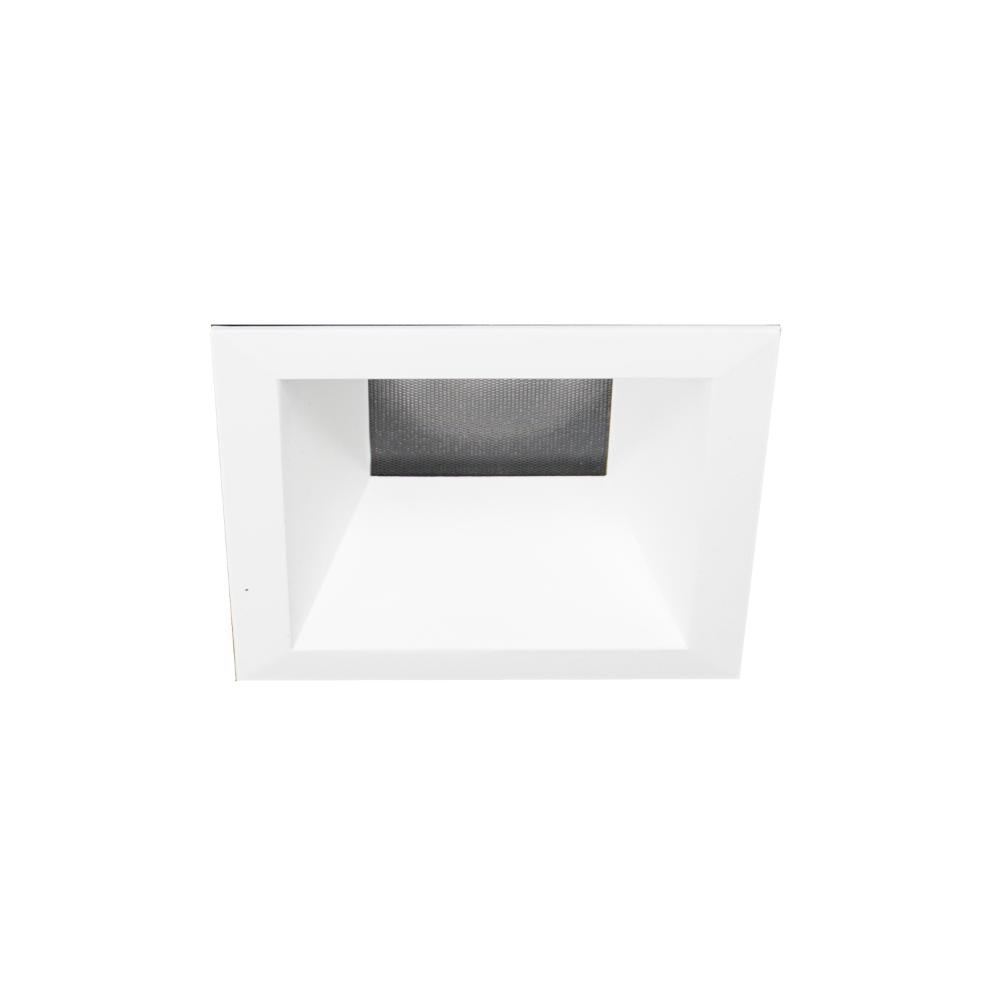

Amerlux Solace 3" Shallow Square Downlight
Solace 3" Downlights are the complete downlight family for any ceiling surface and low plenum ceiling. Round or Square apertures, available as downlight, adjustable or wallwash. Optional Solite lensing provides whisper quiet aesthetics. The trim options available as trimmed, trimless or millwork. The pinhole and shower pinhole trim makes this a complete downlight to design the entire space with the same look.
Features & Benefits
- Wattage: 17 max
- Lumen Output: 1649 max
- Candle Beam Center Power (CBCP): 9768 max
- Color Temp (CCT): 2700K , 3000K , 3500K , 4000K , Class A (Full Gamut) , Crisp White (Full Gamut)
- Color Rendering Index (CRI): 80+ , 90+
Contents
| Product | Aperture Size | Trim / Trimless | Wattage | Delivered Lumens |
| Downlight | 3" | Y / Y | 8, 12, 17 | 1623 max |

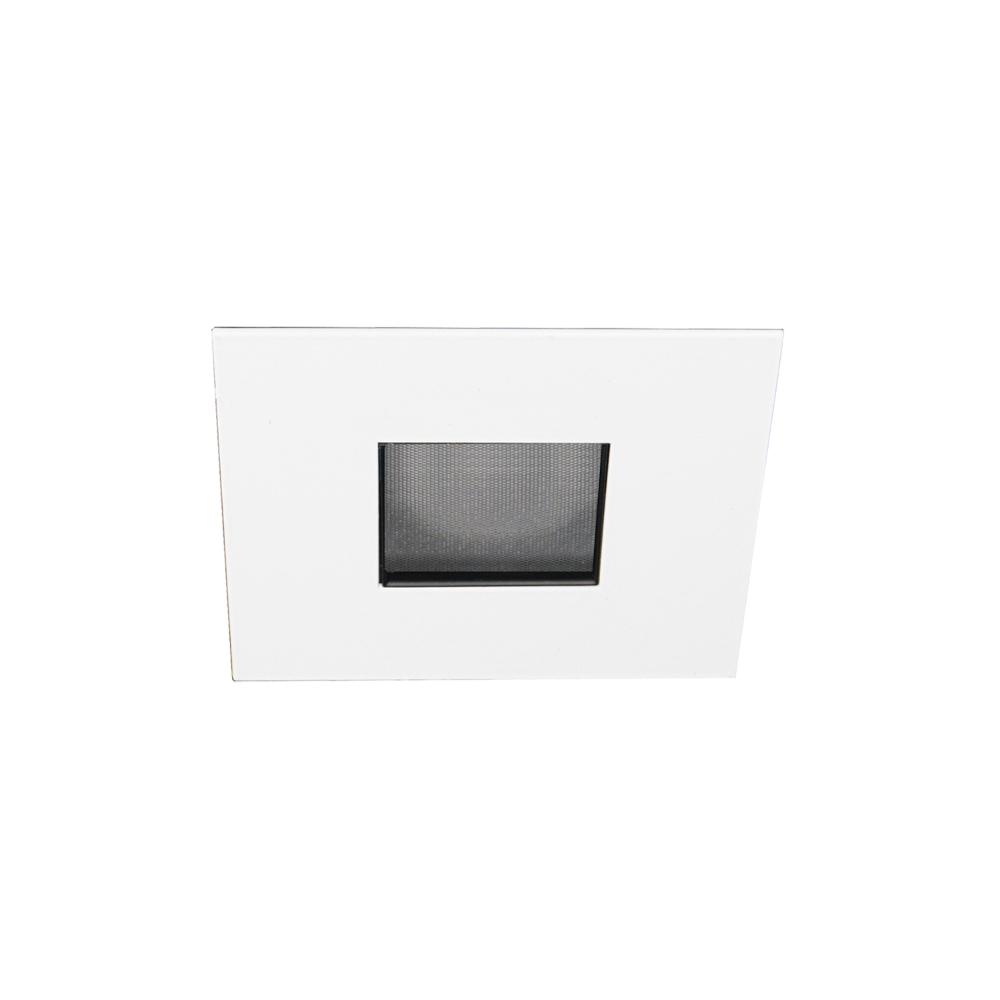

| Pinhole Downlight/Shower | 3" | Y / Y | 8, 12, 17 | 807 max |
| Adjustable | 3" | Y / Y | 8,12,17 | 1593 max |
| Pinhole Adjustable/Shower | 3" | Y / Y | 8, 12, 17 | 771 max |
| Wall Wash | 3" | Y / Y | 8, 12, 17 | 1066 max |
Product Files
Click for Solace RD/SD Installation
Click for Solace RD/SD Millwork Installation
Click for TIR Lens/Beam Replacement Install Sheet
Click for LED Driver Replacement Install Sheet
Click for Solace RPD/SPD Installation
Click for Solace RPD/SPD Millwork Installation
Click for Solace RA/SA Installation
Click for Solace RA/SA Millwork Installation
Click for Solace RPA/SPA Installation
Click for Solace RPA/SPA Millwork Installation
Click for Solace RLW/SLW Installation
