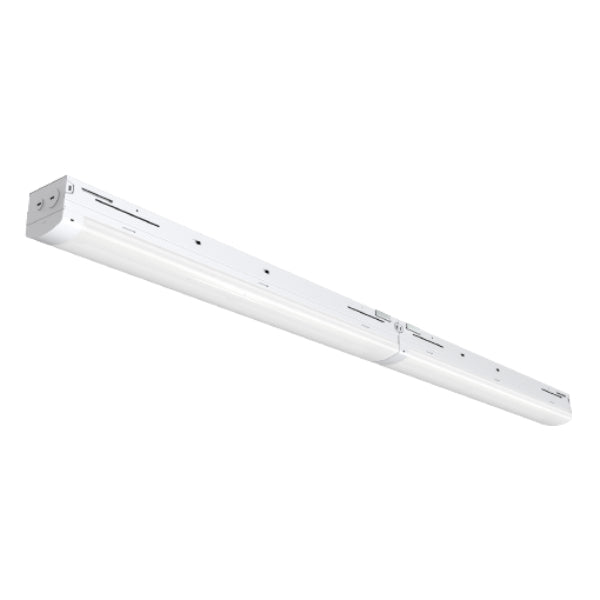

Arcadia Lighting LSM4 Tunable Linear Light

Arcadia LightingSKU: ARCADIA-LSM4

Price:
Sale price$0.00 USD

Description

Arcadia Lighting LSM4 Tunable Linear Light

Features

  • The Standard Includes 2ft, 4ft, and 8ft Options and can be Extended Using a Row Connector and Occlusion Block
  • The Fixture Channel, Cover, and Plates are Made from Cold-Rolled Steel
  • Housing Components Act as Heat Sink for LED Heat Dissipation
  • Switchable Color Temperature 3500K/4000K/5000K
  • Scalable Lumen Packages from 3,360lm to 12,300lm with Efficacy Up to 140 lm/W
  • The Acrlyic Lens is Designed to Enhance Light Uniformity and Provide Comfortable Illumination
  • Wattage Adjustable/Tunable: 10W/16W/20W/24W; 22W/28W/34W/40W; 46W/54/62/70W; 50W/60W/70W/86W
  • Optional PIR Sensor and Bluetooth Smart Control Sensor
  • Optional Emergency Battery Backup
  • Default Surface Mount; V-Hook, Aircraft Cable, T-Bar Bracket Available
  • UL cUL Damp Location Listed

Specifications

Power Light Output Power Input Operating Temperature Efficacy
10W - 86W 1,430 lm - 12,040 lm 120-277V '-4°F - 104°F Up to 154 lm/W

Color Temperature CRI Certifications Motion Sensor Driver
3500K,4000K, 5000K 80 UL/DLC Bi-Level PIR Sensor 1-10V Dimming

Emergency Battery Mounting Options Finish
8W 900lm Surface, Chain White
Product Files

Click for LSM4 | Specification Sheet
