Description

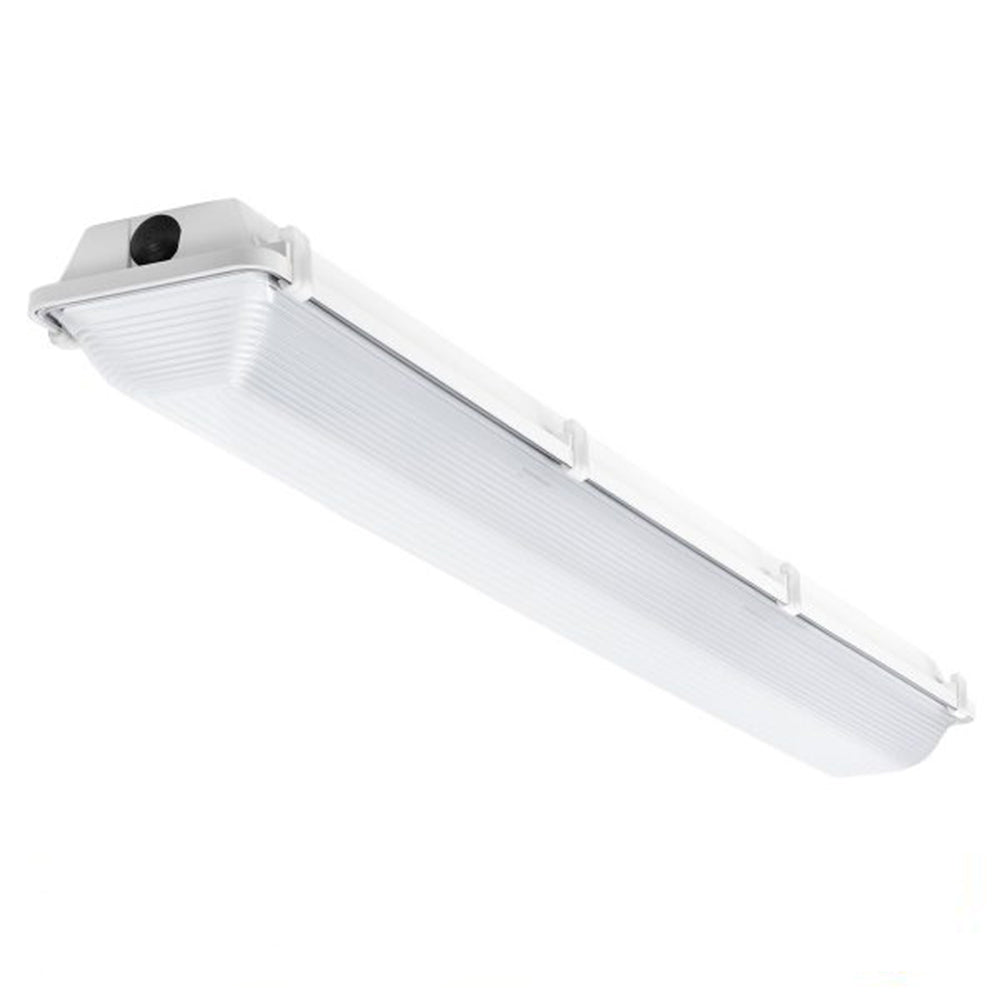

Atlas Lighting ILWS Series Lumen Selectable Wet Location 4ft Narrow ILWS4D
Replace up to 3 standard 4ft wet location fixtures with just 1! These fixtures feature selectable lumen options, reducing stocking complexity and providing additional flexibility for contractors. Our LED Wet Location fixtures offer higher performance and efficiency for a wide range of lighting applications. These robust fixtures are easy to install, provide smooth light output.
Features & Specifications
- Replace 3 4ft wet location fixtures with just 1.
- The housing for the Wet Location series features a one-piece high-impact durable composite material.
- The injection-molded acrylic lens with a high-impact additive is frosted to eliminate glare.
- Maintenance is easy with 1/2" wide entry ports on either side of the housing.
- The large, poured-in gasket that surrounds the fixture provides a continuous seal against water ingress.
- Product series is available in 5 different housing sizes to suit a wide array of applications.
- Max Lumens: 8,000
- Min Lumens: 4,000
- Color Temperatures: 4000K, 4500K, 5000K
Additional Options
Product Variations Table
| Housing | Unit | CRI | 4000K CCT | 4500K CCT | 5000K CCT | Wattage | Replaces Up To | |||
| Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | Delivered Lumens | Efficacy (LpW) | |||||
| ILWS | 4-8L | 80 | 4027 | 147 | 4027 | 147 | 3998 | 146 | 27 | 2L T8 FL |
| 80 | 5912 | 145 | 5912 | 145 | 5870 | 144 | 41 | 2L T5 FL | ||
| 80 | 7889 | 140 | 7889 | 140 | 7833 | 140 | 56 | 4L T8 FL | ||
Product Files
Click for Atlas Lighting ILW Narrow Cut Sheet
Click for Atlas Lighting ILW Narrow Installation Instructions
