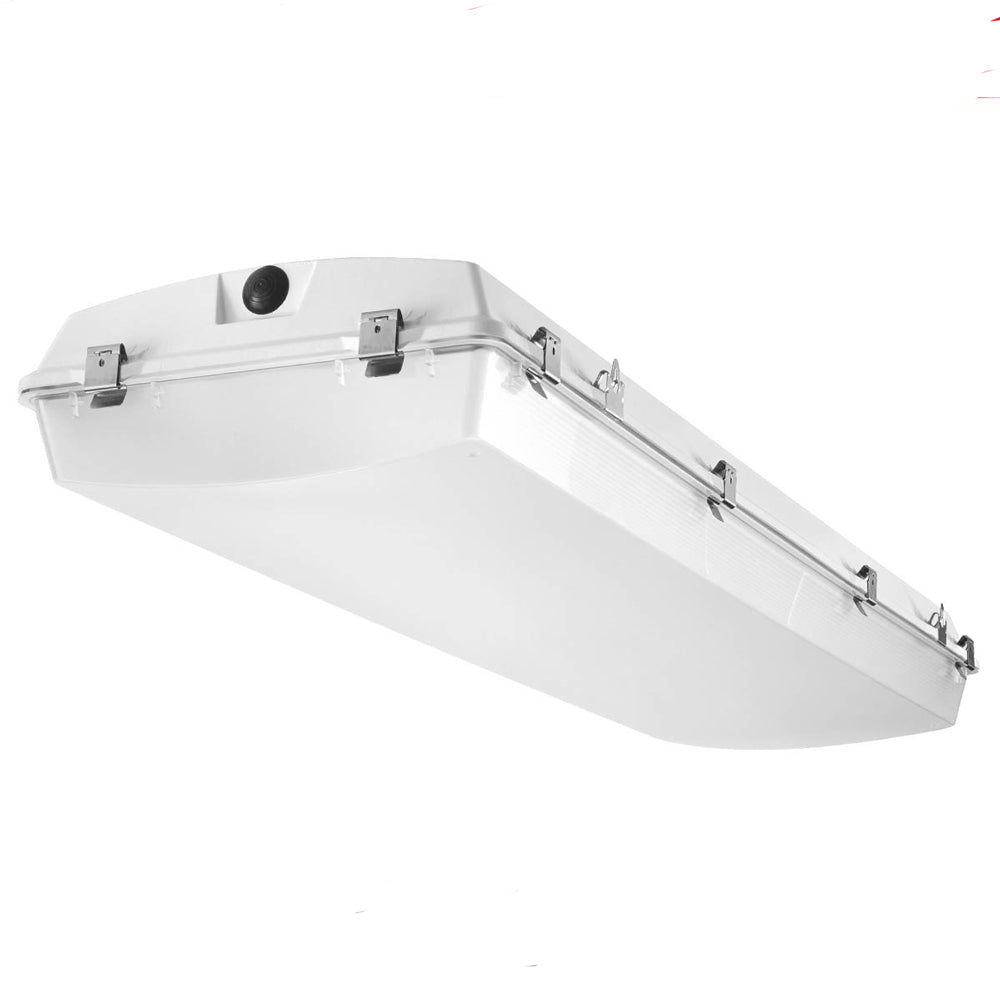

Atlas Lighting ILWS Series Lumen Selectable Wet Location 4ft Wide ILWS4WD

Atlas LightingSKU: ILWS4WD

Price:
Sale price$0.00 USD

Description

Atlas Lighting ILWS Series Lumen Selectable Wet Location 4ft Wide ILWS4WD

Replace up to 3 standard 4ft wet location fixtures with just 1! These fixtures feature selectable lumen options, reducing stocking complexity and providing additional flexibility for contractors. Our LED Wet Location fixtures offer higher performance and efficiency for a wide range of lighting applications. These robust fixtures are easy to install, provide smooth light output.

Features & Specifications

  • Replace 3 4ft wet location fixtures with just 1.
  • The housing for the Wet Location series features a one-piece high-impact durable composite material.
  • The injection-molded acrylic lens with a high-impact additive is frosted to eliminate glare.
  • Maintenance is easy with 1/2" wide entry ports on either side of the housing.
  • The large, poured-in gasket that surrounds the fixture provides a continuous seal against water ingress.
  • Product series is available in 5 different housing sizes to suit a wide array of applications.
  • Max Lumens: 27,000
  • Min Lumens: 13,000
  • Color Temperatures: 4000K, 4500K, 5000K

Additional Options

Product Variations Table
Housing Unit Lens CRI 4000K CCT 4500K CCT 5000K CCT Wattage Replaces Up To
Delivered Lumens Efficacy (LpW) Delivered Lumens Efficacy (LpW) Delivered Lumens Efficacy (LpW)
ILWS 13-27L Frosted 80 12863 149 12840 149 12840 149 86 4L T5 FL
80 19377 149 19342 149 19342 149 130 6L T5 FL
80 26320 144 26272 143 26272 143 184 6L T5 FL
13-27L Clear 80 12863 149 12840 149 12840 149 86 4L T5 FL
80 19377 149 19342 149 19342 149 130 6L T5 FL
80 26320 144 26272 143 26424 144 184 6L T5 FL
Product Files

Click for Atlas Lighting ILW Wide Cut Sheet

Click for Atlas Lighting ILW Wide Installation Instructions
