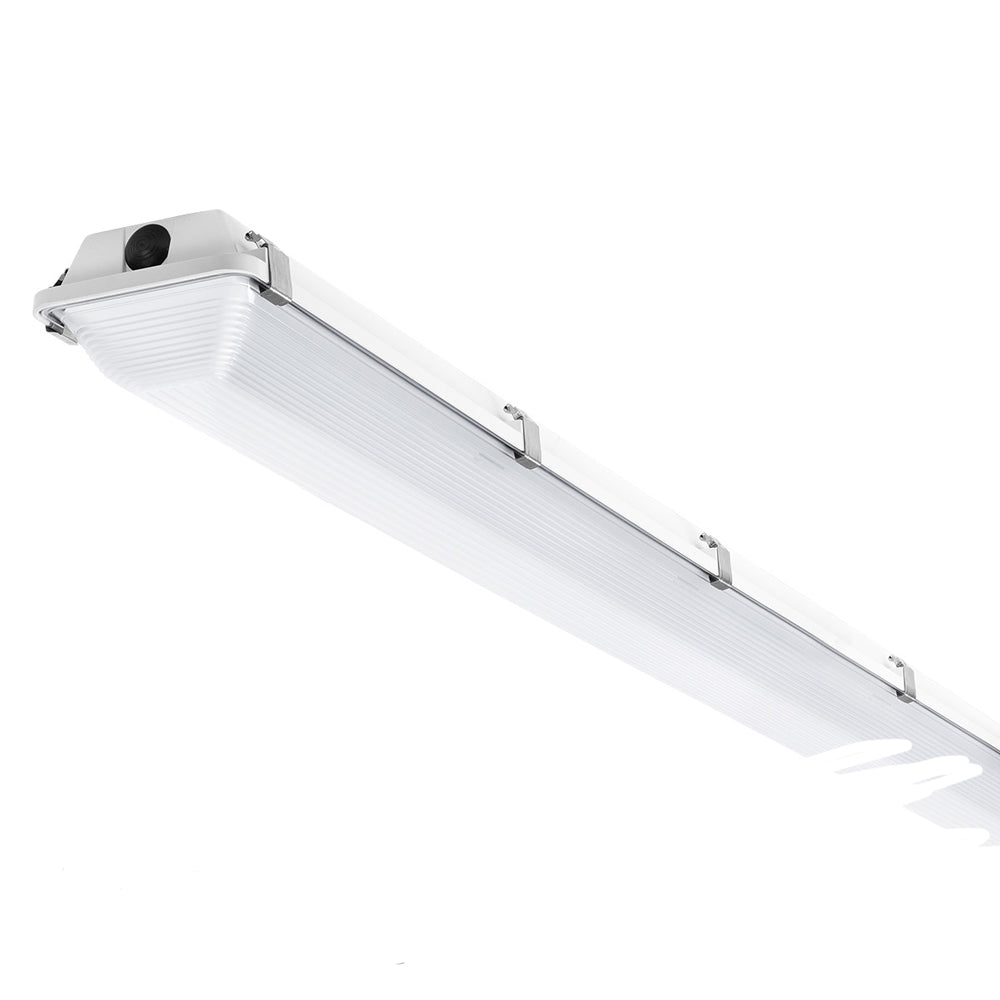

Atlas Lighting ILWS Series Lumen Selectable Wet Location 8ft Narrow ILWS8D

Atlas LightingSKU: ILWS8D

Price:
Sale price$0.00 USD

Description

Atlas Lighting ILWS Series Lumen Selectable Wet Location 8ft Narrow ILWS8D

Replace up to 3 standard 8ft wet location fixtures with just 1! These fixtures feature selectable lumen options, reducing stocking complexity and providing additional flexibility for contractors. Our LED Wet Location fixtures offer higher performance and efficiency for a wide range of lighting applications. These robust fixtures are easy to install, provide smooth light output.

Features & Specifications

  • Replace 3 standard 8ft wet location fixtures with just 1.
  • The housing for the Wet Location series features a one-piece high-impact durable composite material.
  • The injection-molded acrylic lens with a high-impact additive is frosted to eliminate glare.
  • Maintenance is easy with 1/2" wide entry ports on either side of the housing.
  • The large, poured-in gasket that surrounds the fixture provides a continuous seal against water ingress.
  • Product series is available in 5 different housing sizes to suit a wide array of applications.
  • Max Lumens: 13,000
  • Min Lumens: 7,000
  • Color Temperatures: 4000K, 4500K, 5000K

Additional Options

Product Variations Table
Housing Unit CRI 4000K CCT 4500K CCT 5000K CCT Wattage Replaces Up To
Delivered Lumens Efficacy (LpW) Delivered Lumens Efficacy (LpW) Delivered Lumens Efficacy (LpW)
ILWS 7-13L 80 6,846 154 6,824 153 6,824 153 45 4L T8 FL
80 10,302 153 10,269 152 10,269 152 68 4L T5 FL
80 13,863 146 13,819 146 13,819 146 95 4L T5 FL
10-20L 80 10,221 142 10,190 142 10,159 141 72 4L T8 FL
80 15,063 140 15,017 140 14,972 139 108 4L T5 FL
80 20,222 136 20,161 134 20,100 134 150 4L T5 FL
Product Files

Click for Atlas Lighting ILW Narrow Cut Sheet

Click for Atlas Lighting ILW Narrow Installation Instructions
